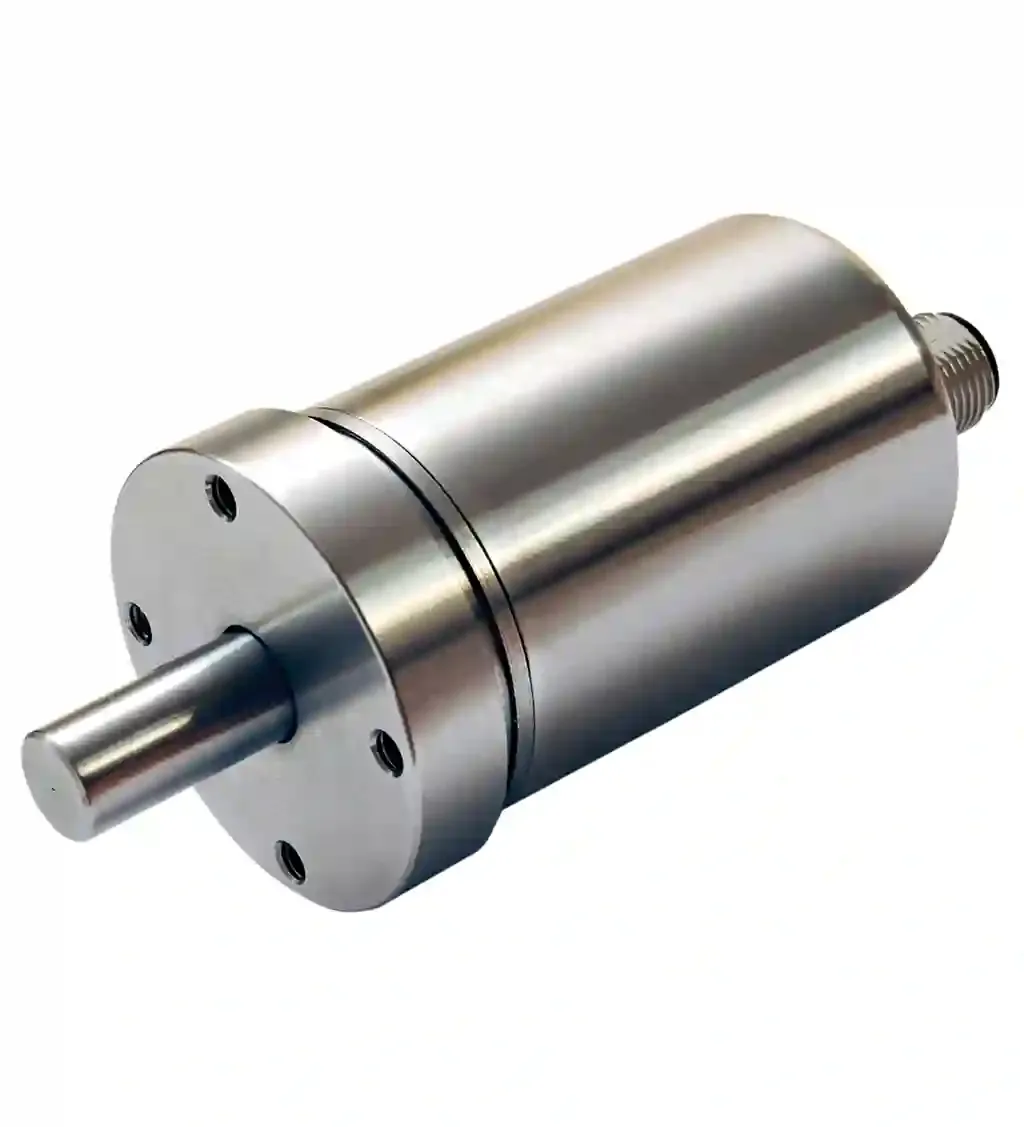

Pepperl Fuchs ENA42HD-S***-SSI

Absolute rotary encoder. Solid shaft, SSI interface, Up to 32 Bit multiturn, Free of wear magnetic sampling, High resolution and accuracy, Enclosure type: 42 mm, Type of shaft: Solid shaft, Interface: SSI, Detection type: magnetic sampling, Interface type: SSI, Input type: Selection of counting direction (cw/ccw). Detection type: magnetic sampling. Device type: Absolute rotary encoder. Linearity error: ≤ ± 0.1 °. UL File Number: E223176 “For use in NFPA 79 Applications only” , if UL marking is marked on the product.. MTTFd: 700 a at 40 °C. Mission Time (TM): 20 a. L10: 10 E+8 revolutions. Diagnostic Coverage (DC): 0 %. Operating voltage: 4.75 … 30 V DC. Power consumption: ≤ 1 W. Time delay before availability: < 450 ms. Output code: Gray code, binary code. Code course (counting direction): adjustable. Interface type: SSI. Resolution: . Single turnup to 16 BitMultiturnup to 16 BitOverall resolutionup to 32 Bit: . Single turn: up to 16 Bit. Multiturn: up to 16 Bit. Overall resolution: up to 32 Bit. Transfer rate: 0.1 … 2 MBit/s. Cycle time: < 100 µs. Standard conformity: RS 422. Input type: Selection of counting direction (cw/ccw). Signal voltage: . High4.75 V … UB (cw descending)Low0 … 2 V or unconnected (cw ascending): . High: 4.75 V … UB (cw descending). Low: 0 … 2 V or unconnected (cw ascending). Input current: < 6 mA. Switch-on delay: < 250 ms. Input type: zero-set (PRESET 1) with falling edge. Signal voltage: . High4.75 V … UBLow0 … 2 V: . High: 4.75 V … UB. Low: 0 … 2 V. Input current: < 6 mA. Signal duration: min. 1.1 s. Connector: M12 connector, 8-pin. Cable: ∅7 mm, 6 x 2 x 0.14 mm2, 1 m (cable length, see order code). Degree of protection: DIN EN 60529 , IP66 / IP68 / IP69K. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 300 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 30 g, 10 … 1000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product.. Operating temperature: -40 … 85 °C (-40 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Relative humidity: 98 % , no moisture condensation. Material: . Housingstainless steel 1.4404 / AISI 316LFlangestainless steel 1.4404 / AISI 316LShaftStainless steel 1.4412 / AISI 440B: . Housing: stainless steel 1.4404 / AISI 316L. Flange: stainless steel 1.4404 / AISI 316L. Shaft: Stainless steel 1.4412 / AISI 440B. Mass: approx. 350 g. Rotational speed: max. 6000 min -1. Moment of inertia: 30 gcm2. Starting torque: < 5 Ncm. Shaft load: . Axial270 NRadial270 N: . Axial: 270 N. Radial: 270 N
