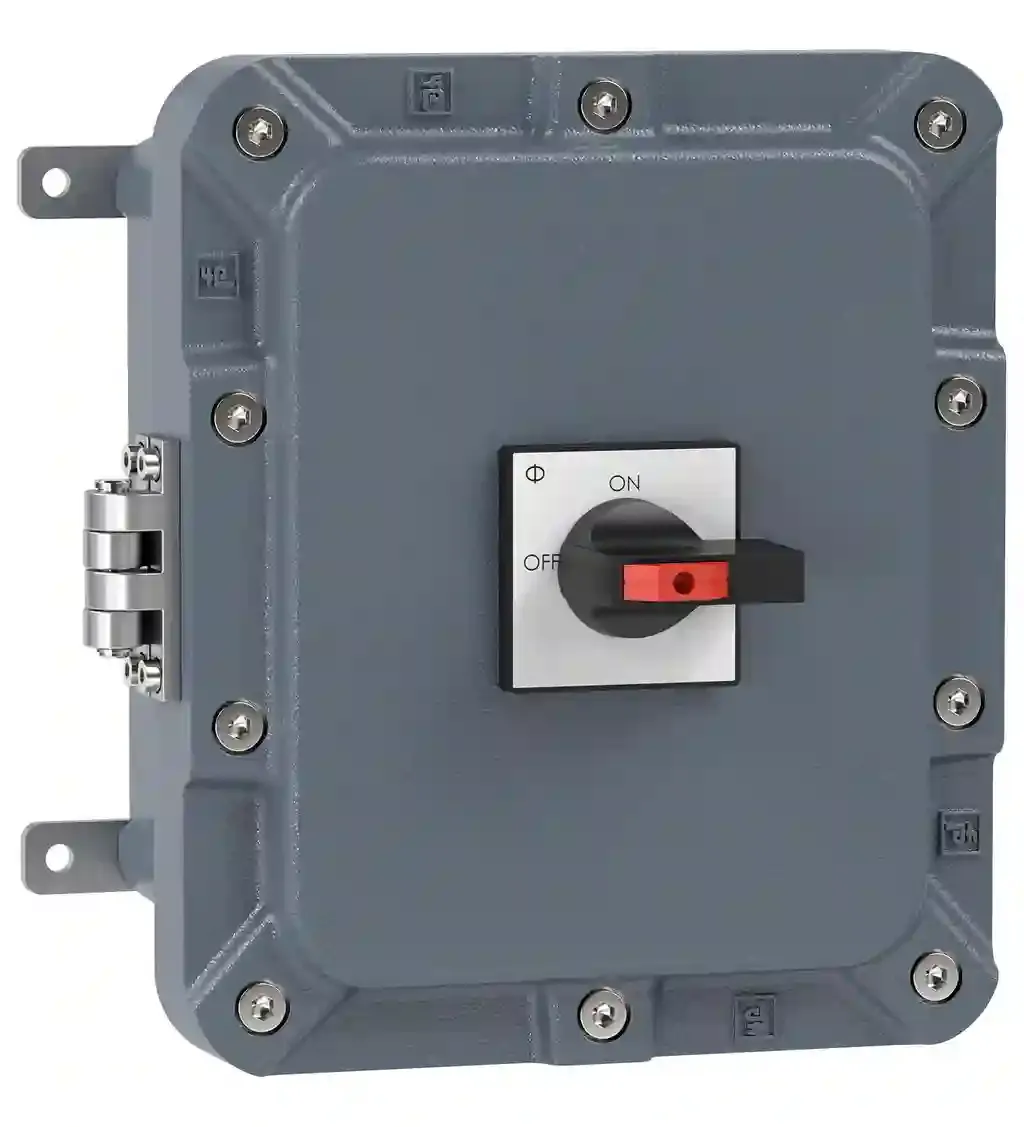

Pepperl Fuchs EJB4A.D.PS.DIS.100.3PN.2NO

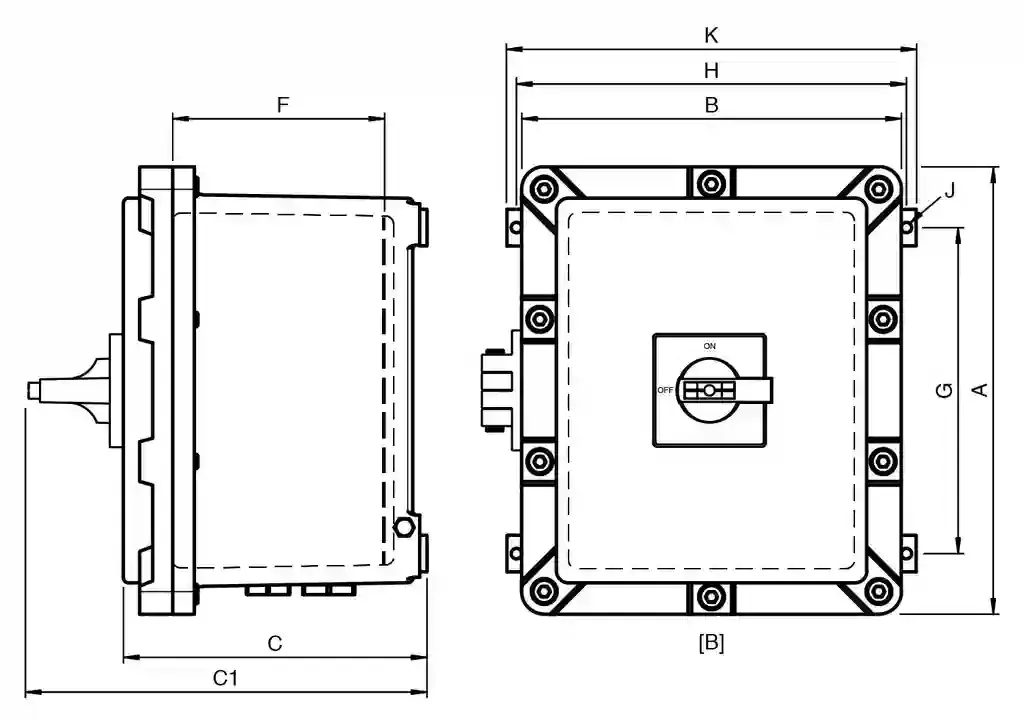

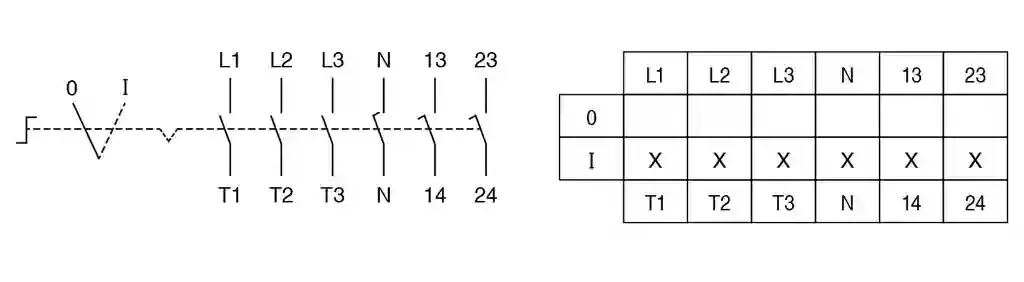

Switch Disconnector Ex d IIB 100 A 4 Pole, Aluminum Enclosure. Switch disconnector, 2 position with left OFF – 4x NO, Labeling ‘0 – I’, Auxiliary contacts – 2x NO, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Aluminum enclosure, Ex d and Ex tb certified, Padlockable switch, Degree of protection IP66, Function: switch disconnector, Enclosure: aluminum alloy. Operating voltage: 690 V max.. Rated impulse withstand voltage: 6 kV. Rated frequency: 50Hz. Short circuit current limitation: recommended: 100 A, gG. Operating current: 100 A max.. Terminal capacity: . Main terminals capacity2x 1 mm2 … 50 mm2Main terminals torque3 NmGrounding terminals capacity2x 2.5 mm2 … 35 mm2Grounding terminals torque5 Nm min.: . Main terminals capacity: 2x 1 mm2 … 50 mm2. Main terminals torque: 3 Nm. Grounding terminals capacity: 2x 2.5 mm2 … 35 mm2. Grounding terminals torque: 5 Nm min.. Rated insulation voltage: 690 V. Function: switch disconnector. ColorblackContact configuration4x NOSwitching configuration2 position with left OFFUsage categoryAC23: 690 V AC – 100 A AC3: 690 V AC – 100 ANumber of poles4Auxiliary contacts2x NO delayed, advanced openingAuxiliary contacts usage categoryAC15: 500 V AC – 1.5 A / 440 V AC – 3.0 A / 240 V AC – 6.0 AOperator actionengage – engageLockablein ‘OFF’ positionLabeling0 – I: . Color: black. Contact configuration: 4x NO. Switching configuration: 2 position with left OFF. Usage category: AC23: 690 V AC – 100 A AC3: 690 V AC – 100 A. Number of poles: 4. Auxiliary contacts: 2x NO delayed, advanced opening. Auxiliary contacts usage category: AC15: 500 V AC – 1.5 A / 440 V AC – 3.0 A / 240 V AC – 6.0 A. Operator action: engage – engage. Lockable: in ‘OFF’ position. Labeling: 0 – I. Enclosure range: EJB. Enclosure cover: fully detachable. Cover fixing: stainless steel socket cap head screws. ScrewsM8Number10Tightening torque20 NmYield stressmin. 450 N/mm2: . Screws: M8. Number: 10. Tightening torque: 20 Nm. Yield stress: min. 450 N/mm2. Degree of protection: IP66. Cable entry face B: . M20 quantity1M20 seriesStopping Plugs, Metal, Hexagon HeadM20 typeSP.MD.M20.BN.*M40 quantity2M40 seriesStopping Plugs, Metal, Hexagon HeadM40 typeSP.MD.M40.BN.*: . M20 quantity: 1. M20 series: Stopping Plugs, Metal, Hexagon Head. M20 type: SP.MD.M20.BN.*. M40 quantity: 2. M40 series: Stopping Plugs, Metal, Hexagon Head. M40 type: SP.MD.M40.BN.*. Defined entry area: face B. Material: . Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey): . Enclosure: aluminum alloy. Finish: epoxy coated RAL 7005 (grey). Mass: approx. 18.5 kg. Dimensions: values might differ slightly due to casting and manufacturing tolerances. External dimension (A)265 mmExternal dimension (B)225 mmExternal dimension (C)180 mmExternal dimension with operating element (C1)234.9 mmMounting holes distance (G)188 mmMounting holes distance (H)206 mmMounting holes diameter (J)8 mmMaximum external dimension (K)248 mm: . External dimension (A): 265 mm. External dimension (B): 225 mm. External dimension (C): 180 mm. External dimension with operating element (C1): 234.9 mm. Mounting holes distance (G): 188 mm. Mounting holes distance (H): 206 mm. Mounting holes diameter (J): 8 mm. Maximum external dimension (K): 248 mm. Tightening torque: . Nut torque at enclosure (SW1)see datasheets of stopping plugs: . Nut torque at enclosure (SW1): see datasheets of stopping plugs. Grounding: M6 external grounding points. Ambient temperature: -20 … 50 °C (-4 … 122 °F) @ T6. EU-type examination certificate: INERIS 14 ATEX 0022X. Marking II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db: . Marking: II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db. IECEx approval: IECEx INE 14.0029X. UKCA approval: CML 21 UKEX 1424X. Further approvals: further on request. Degree of protection: EN60529. Usage category: IEC / EN 60947. CE marking: 0080 or 0102, see type label. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
