Pepperl Fuchs E501001

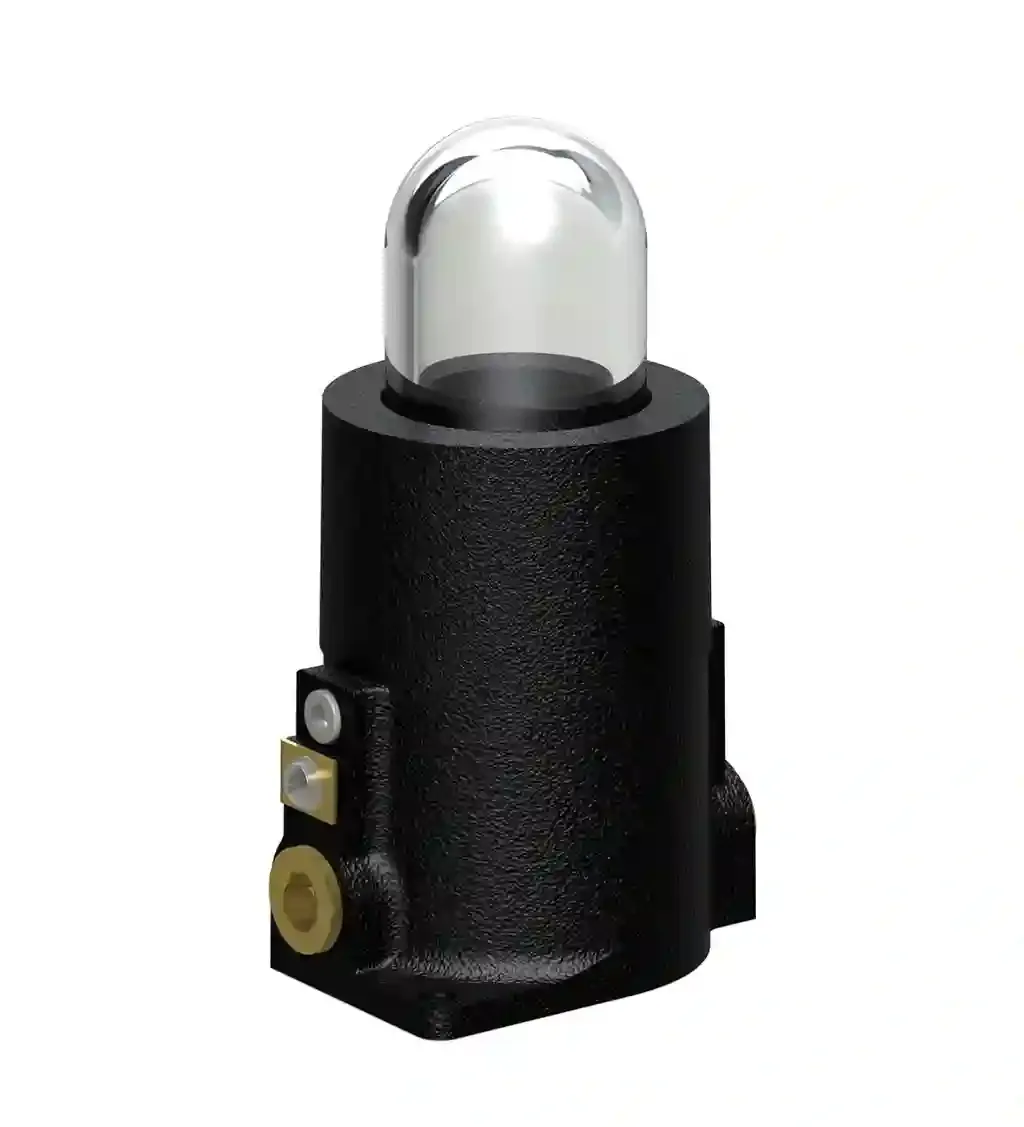

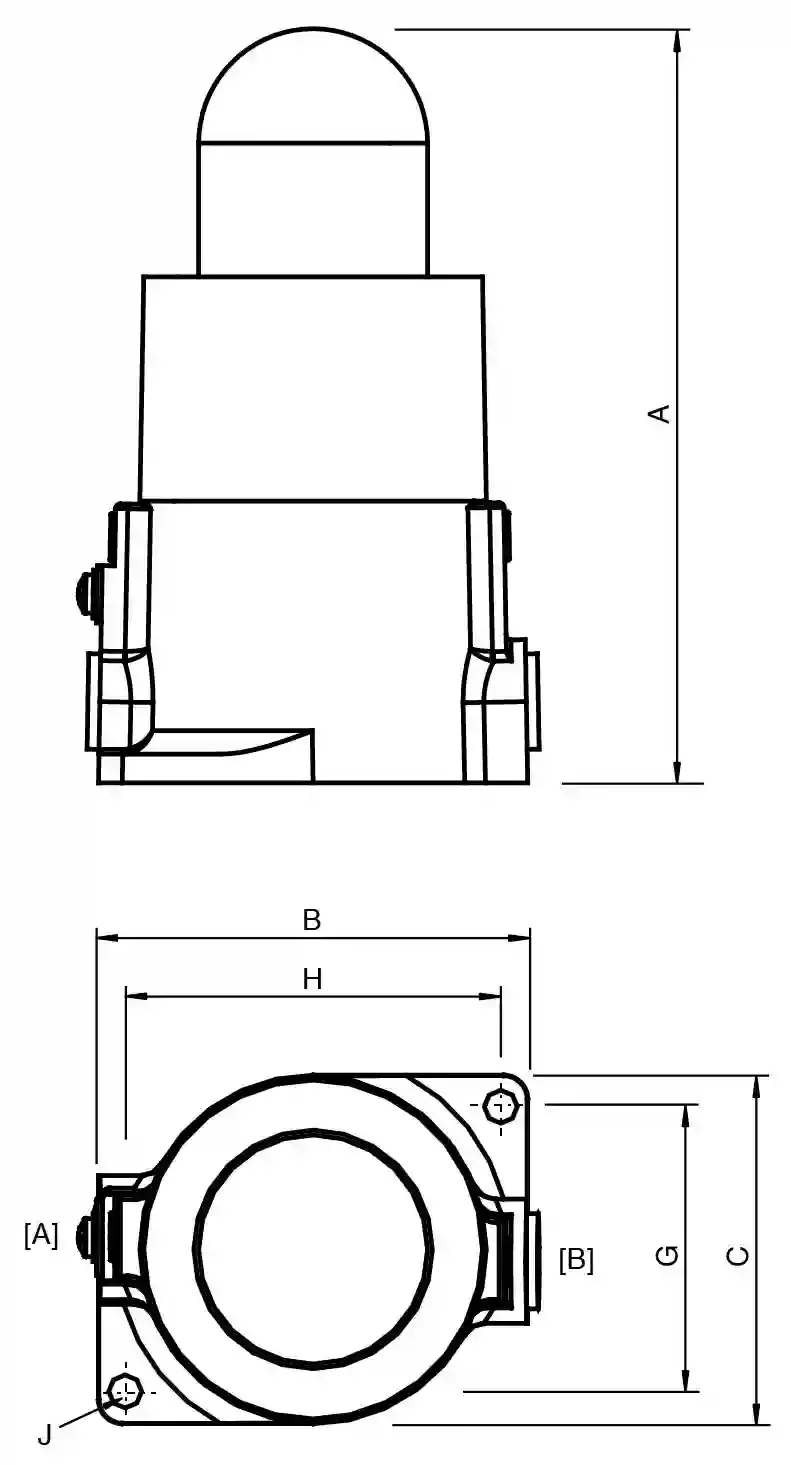

Ex d Cast Iron Single Status/Indicator Lamp. Glass color: white, 158 mm x 90 mm x 73 mm, Cast Iron, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Threaded cable entries, Ex d certified. Operating voltage: 220 … 254 V 50/60 Hz. Operating current: 0.15 A max.. Terminal capacity: 2.5 mm2. Lamps: incandescent. Power15 WLampholderBC type: . Power: 15 W. Lampholder: BC type. Function: Signal beacon. Cover fixing: threaded joint. Degree of protection: IP65. Cable entry face A: . M20 quantity1M20 typemetric ISO pitch 1.5 mmM20 infoStopping Plug: . M20 quantity: 1. M20 type: metric ISO pitch 1.5 mm. M20 info: Stopping Plug. Cable entry face B: . M20 quantity1M20 typemetric ISO pitch 1.5 mm: . M20 quantity: 1. M20 type: metric ISO pitch 1.5 mm. Material: . Enclosurecast ironGlasstoughened glassGlass colorwhiteFinishcast iron: painted blackSealnitrile O-ring: . Enclosure: cast iron. Glass: toughened glass. Glass color: white. Finish: cast iron: painted black. Seal: nitrile O-ring. Mass: approx. 2 kg. Dimensions: . External dimension (A)159 mmExternal dimension (B)89.8 mmExternal dimension (C)78.2 mmMounting holes distance (G)64 mmMounting holes distance (H)78 mmMounting holes diameter (J)6.9 mm: . External dimension (A): 159 mm. External dimension (B): 89.8 mm. External dimension (C): 78.2 mm. Mounting holes distance (G): 64 mm. Mounting holes distance (H): 78 mm. Mounting holes diameter (J): 6.9 mm. Grounding: internal & external brass grounding terminals on base. Ambient temperature: -40 … 55 °C (-40 … 131 °F). EU-type examination certificate: CML 21 ATEX 1699. Marking II 2 GD Ex db IIB T5 Gb, Ex tb IIIC T100°C Db ( ta … +40°C ) Ex db IIB T4 Gb, Ex tb IIIC T120°C Db ( ta … +55°C ): . Marking: II 2 GD Ex db IIB T5 Gb, Ex tb IIIC T100°C Db ( ta … +40°C ) Ex db IIB T4 Gb, Ex tb IIIC T120°C Db ( ta … +55°C ). IECEx approval: IECEx CML 21.0081. UKCA approval: CML 21 UKEX 1819. Degree of protection: EN 60529. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
