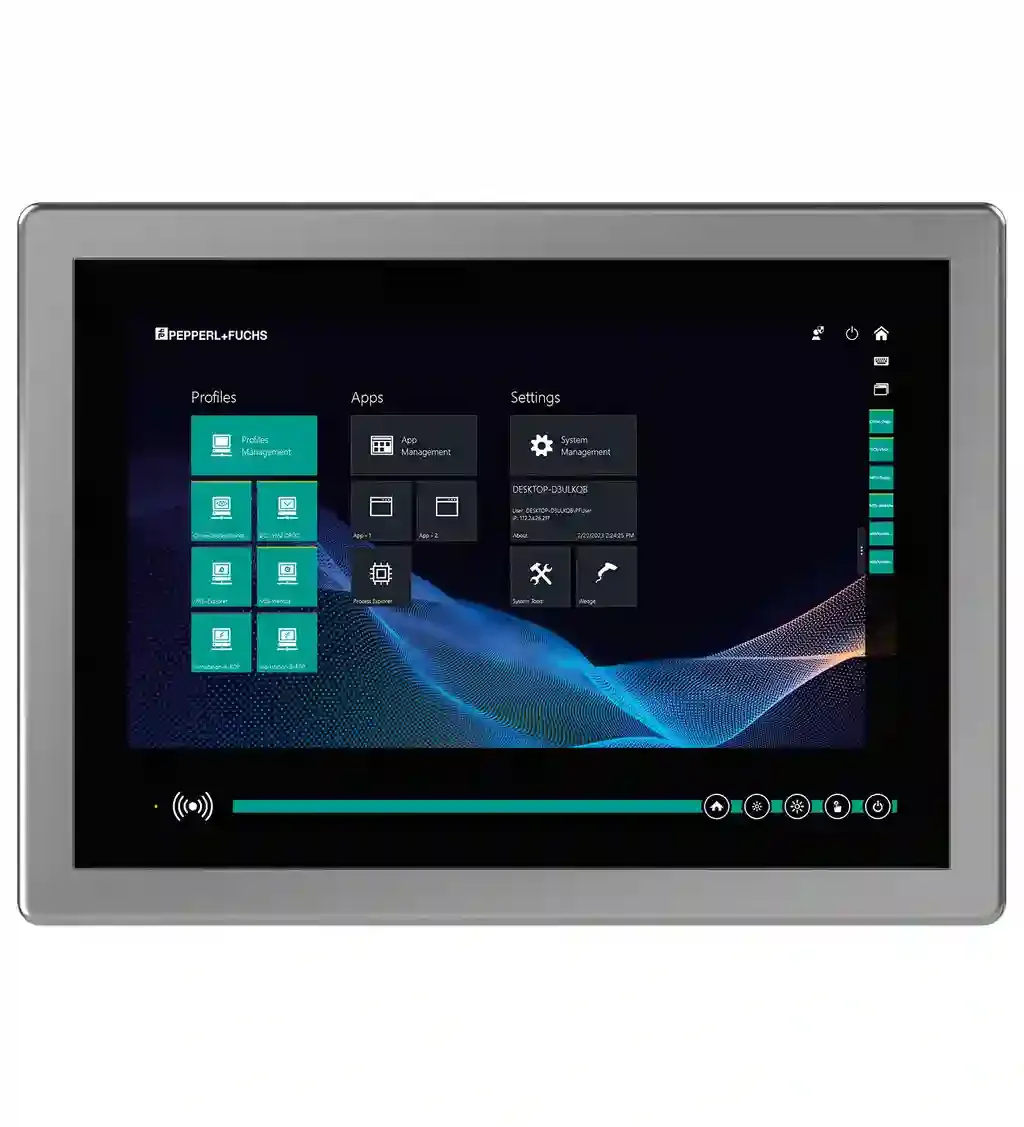

Pepperl Fuchs DPU1100-J1-22F*

Display Unit. Display Unit, 10 point multi-touch sensor option allows design of modern user interfaces, Highly resistant to cleaning agents with stainless steel bezel and seamless glass design, Design optimized for easy cleanability, Low-power consumption and heat dissipation due to LED backlight technology, Optionally integrated RFID reader. Power consumption: average: 22 W at maximum brightness: max. 27 W. Display: . TypeLC display with LED backlight Optically bondedScreen size54.61 cm (21.5 inch)Resolution1920x1080 (Full HD) , Aspect ratio 16:9Color depth16.7 Mio.Contrast ratio5000 (typical)Brightness300 cd/m2 (nit)Viewing angle175° in all directionsLife spanback lamp life: 50.000 hrs typical half life , at 20 °C (68 °F): . Type: LC display with LED backlight Optically bonded. Screen size: 54.61 cm (21.5 inch). Resolution: 1920×1080 (Full HD) , Aspect ratio 16:9. Color depth: 16.7 Mio.. Contrast ratio: 5000 (typical). Brightness: 300 cd/m2 (nit). Viewing angle: 175° in all directions. Life span: back lamp life: 50.000 hrs typical half life , at 20 °C (68 °F). Input devices: . Touch screenoptional: projective capacitive, 10 finger multi-touch, glove-friendly: . Touch screen: optional: projective capacitive, 10 finger multi-touch, glove-friendly. Interface type: interface v1.0 from Pepperl+Fuchs for computing units from Pepperl+Fuchs Bluetooth v4.0 , communication distance up to 30 m in open terrain (optional) , transmission power : +8 dBm. Transmitter frequency: 2.402 … 2.48 GHz. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations) Non-Bluetooth / non-RFID products only: . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations) Non-Bluetooth / non-RFID products only. Radio and telecommunication terminal equipment: . Directive 2014/53/EUEN 61326-1:2013EN 300 328 V2.2.2:2019EN 301 489-1 V2.2.0:2017EN 301 489-17 V3.2.0:2017Bluetooth products only EN 61326-1:2013EN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61010-1:2010EN 62479 :2010EN 62311:2008RFID products only: . Directive 2014/53/EU: EN 61326-1:2013EN 300 328 V2.2.2:2019EN 301 489-1 V2.2.0:2017EN 301 489-17 V3.2.0:2017Bluetooth products only EN 61326-1:2013EN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61010-1:2010EN 62479 :2010EN 62311:2008RFID products only. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Operating temperature: 0 … 50 °C (32 … 122 °F) (normal operation) -20 … 50 °C (-4 … 122 °F) (after 1 hour of operation). Storage temperature: -20 … 60 °C (-4 … 140 °F). Relative humidity: 93% at 40°C, non-condensating, according to EN 60068-2-78. Shock resistance: 18 shocks 15 g , 11 ms all axis, IEC 60068-2-27. Vibration resistance: 10 … 150 Hz, +/- 0.075 mm , 1g, 10 cycles per axis according to EN60068-2-6. Degree of protection: IP66 ( when mounted on the TCU or PCU from Pepperl+Fuchs ). Material: . Surfacefront: glass (optional with stainless steel bezel) Back side: powder coated aluminum: . Surface: front: glass (optional with stainless steel bezel) Back side: powder coated aluminum. Mass: approx. 15 kg. Dimensions: 624 mm x 458 mm x 35 mm. Cut out dimensions: 583 mm x 417 mm. EU-type examination certificate: BVS 16 ATEX E 084 X. Marking II 2G Ex eb q ib IIC T4 Gb [exsign] II 2D Ex tb IIIC T80 °C Db: . Marking: II 2G Ex eb q ib IIC T4 Gb [exsign] II 2D Ex tb IIIC T80 °C Db. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018EN 60079-5:2015EN IEC 60079-7:2015+A1:2018EN 60079-11:2012EN 60079-31:2014: . Directive 2014/34/EU: EN IEC 60079-0:2018EN 60079-5:2015EN IEC 60079-7:2015+A1:2018EN 60079-11:2012EN 60079-31:2014. IECEx approval: IECEx BVS 16.0061X. Approved forEx eb q ib IIC T4 Gb Ex tb IIIC T80 °C DbStandardsIEC 60079-0:2017, Ed. 7.0IEC 60079-5:2015, Ed. 4IEC 60079-7:2017, Ed. 5.1IEC 60079-11:2011, Ed. 6.0IEC 60079-31:2013, Ed. 2.0: . Approved for: Ex eb q ib IIC T4 Gb Ex tb IIIC T80 °C Db. Standards: IEC 60079-0:2017, Ed. 7.0IEC 60079-5:2015, Ed. 4IEC 60079-7:2017, Ed. 5.1IEC 60079-11:2011, Ed. 6.0IEC 60079-31:2013, Ed. 2.0
