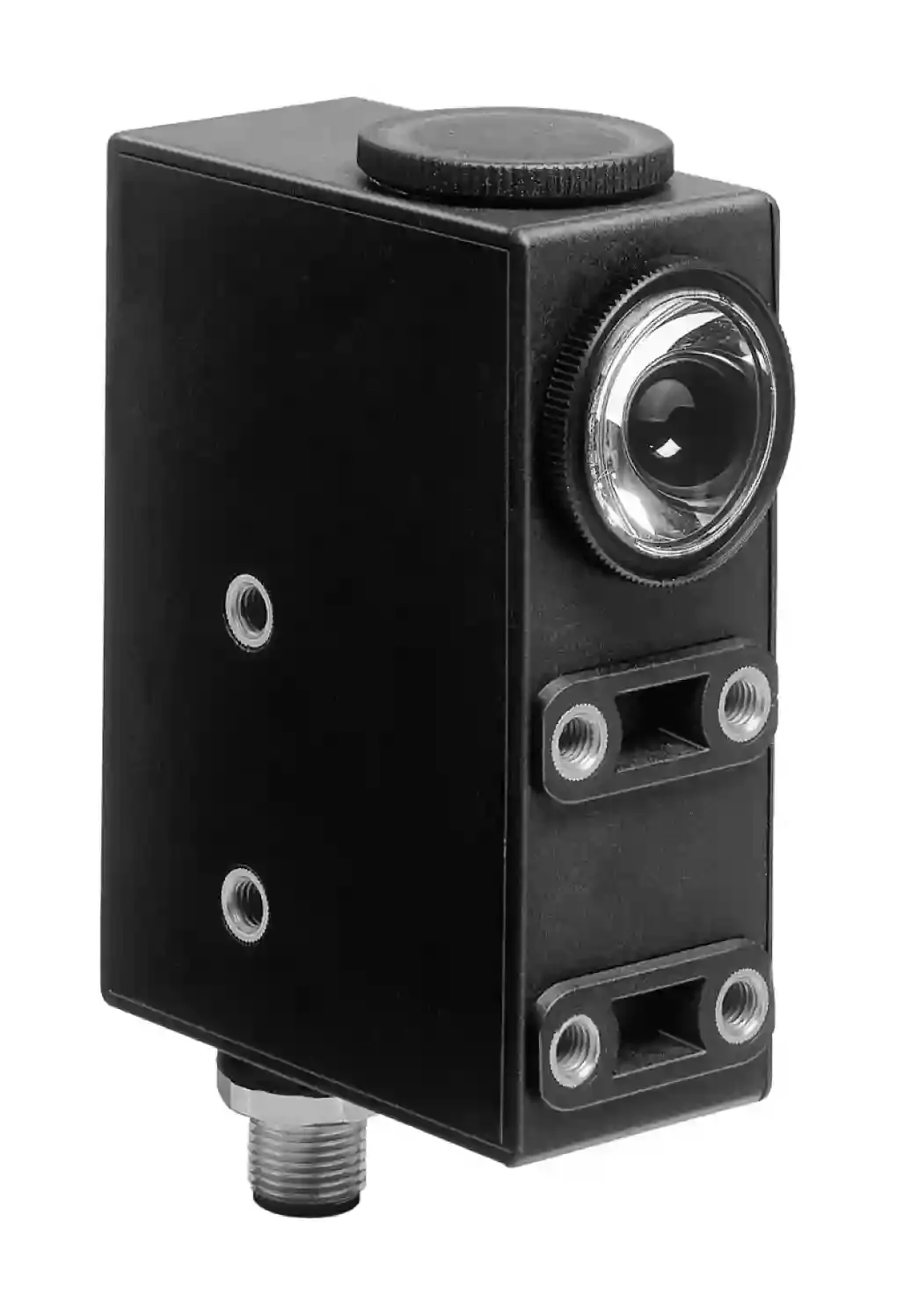

Pepperl Fuchs DK20-9,5/A/110/124

Print mark contrast sensor. Print mark contrast sensor, 9.5 mm detection range, RGB light with rectangular light spot, light/dark on, external Teach-in, push-pull output, M12 plug, Diffuse mode sensor for recording any print mark, Static teach-in: automatic switching threshold adaptation, Optical system exchangeable by 90°, 30 µs response time, suitable for extremely rapid scanning processes, 3 emitter colors: green, red and blue. Sensor range: 9.5 mm ± 3 mm. Light source: LED. Light type: Visible green/red/blue, modulated light. Light spot representation: 1 mm x 4 mm , light spot perpendicular to housing. Angle deviation: max. ± 3°. Ambient light limit: . Continuous light7000 Lux: . Continuous light: 7000 Lux. Teach-in: static Teach-In. MTTFd: 650 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED yellow; switching operation: lights up if print mark is detectedTeach-In operation: flashing slowlyalarm display: flashing quickly, if no safe operation is possible. Control elements: Teach-In key. Operating voltage: 10 … 30 V DC. Ripple: 10 %. No-load supply current: ≤ 70 mA. Function input: Teach-In input. Switching type: light/dark on switchable, results from the order of the Teach-In. Signal output: Push-pull output, short-circuit protected, reverse polarity protected. Switching voltage: PNP: ≥ (+UB -2.5 V) , NPN: ≤ 1.5 V. Switching current: max. 200 mA. Switching frequency: 16.5 kHz. Response time: 30 µs. Product standard: EN 60947-5-2. Standard conformity: . Shock and impact resistanceIEC / EN 60068. half-sine, 40 g in each X, Y and Z directionsVibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions: . Shock and impact resistance: IEC / EN 60068. half-sine, 40 g in each X, Y and Z directions. Vibration resistance: IEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions. UL approval: cULus Listed , Class 2 power source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 … 60 °C (-4 … 140 °F). Storage temperature: -20 … 75 °C (-4 … 167 °F). Degree of protection: IP67. Connection: 5-pin, M12 x 1 connector. Material: . HousingPC (glass-fiber-reinforced Makrolon)Optical faceglass: . Housing: PC (glass-fiber-reinforced Makrolon). Optical face: glass. Mass: 200 g. Dimensions: . Height85.6 mmWidth33 mmDepth60.8 mm: . Height: 85.6 mm. Width: 33 mm. Depth: 60.8 mm
