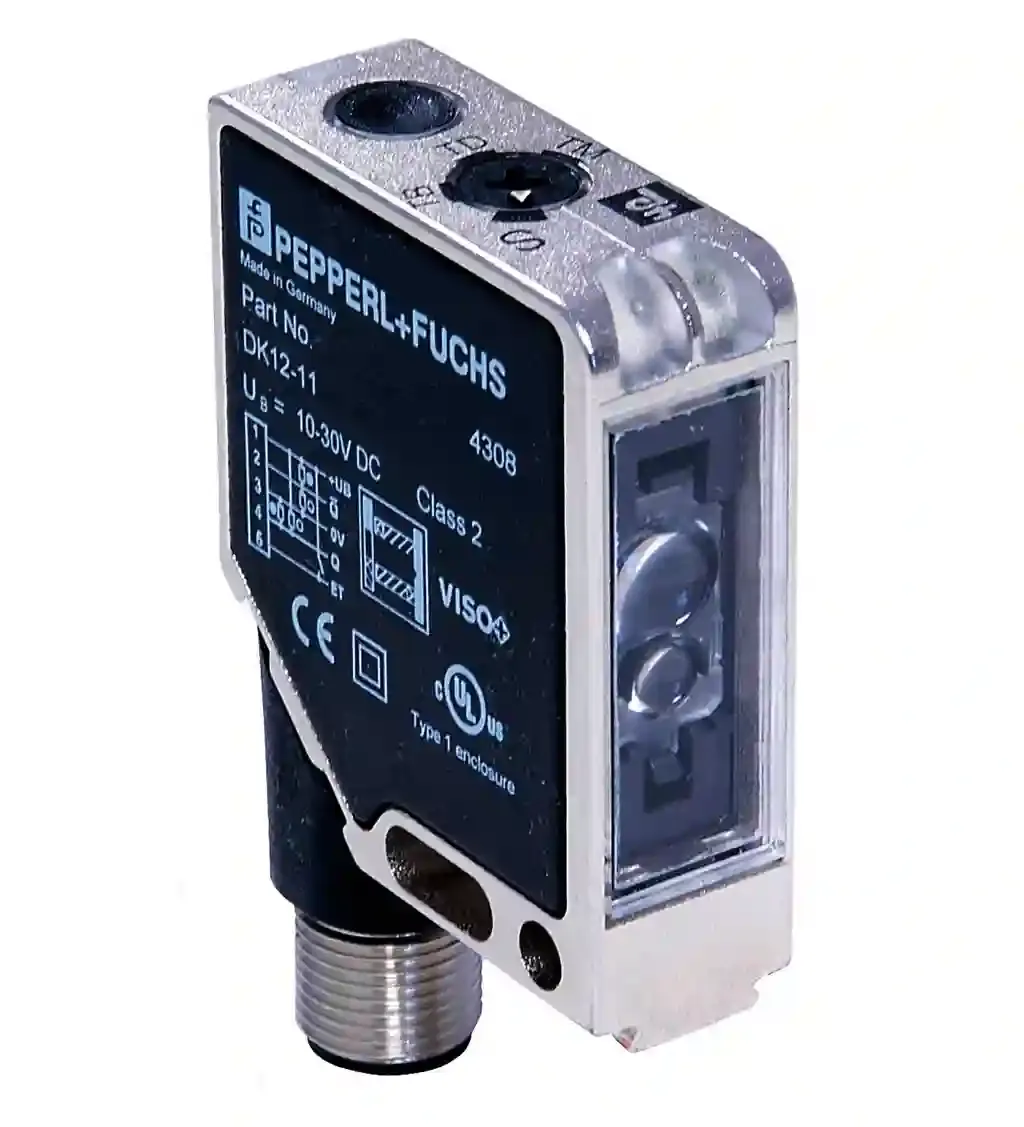

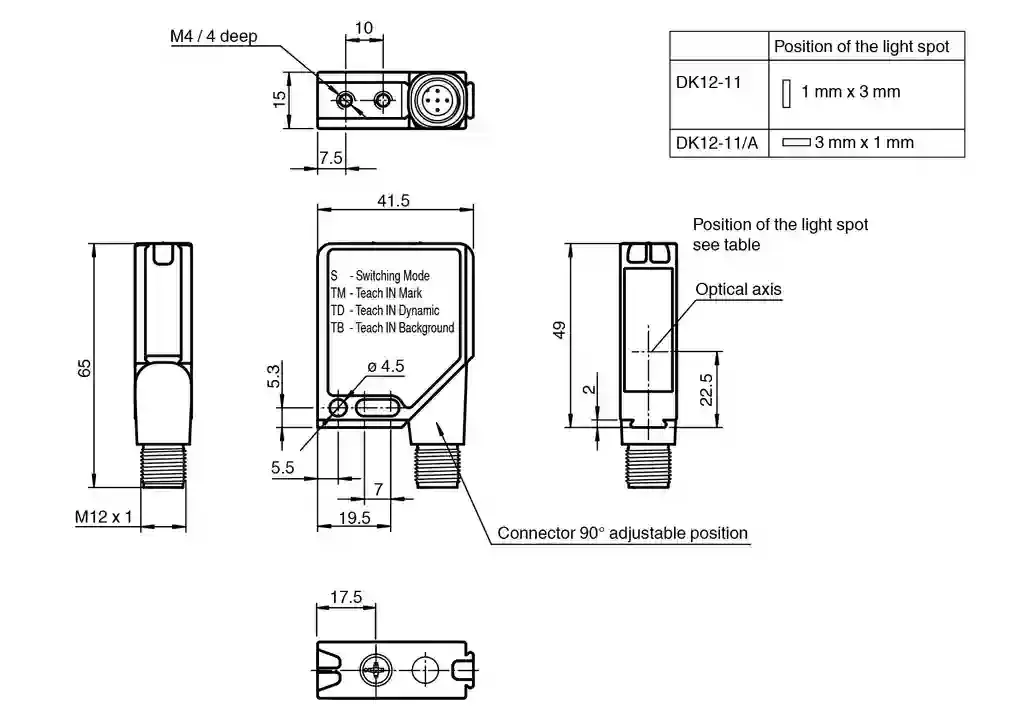

Pepperl Fuchs DK12-11/A/124/136

Print mark contrast sensor. Print mark contrast sensor, 11 mm detection range, RGB light perpendicular to the longitudinal direction of the housing, light/dark ON, external Teach-In, 2 push-pull outputs, M12 plug, Diffuse mode sensor for recording any print mark, Teach-in, static and dynamic, 50 µs response time, suitable for extremely rapid scanning processes, 3 emitter colors: green, red and blue. Sensor range: 11 mm ± 2 mm. Light source: 3 LEDs (R,G,B). Light type: Visible green/red/blue, modulated light. Light spot representation: 3 mm x 1 mm , light spot perpendicular to housing. Angle deviation: max. ± 3°. Teach-in: static and dynamic Teach-In. MTTFd: 750 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 60 %. Operation indicator: LED green, statically lit Power on , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: 2 LEDs yellow, light up in case of detection. Teach-in indicator: Teach-In mark: LED green/yellow equiphase flashing; 2,5 Hz . Teach-In background: LED green/yellow non equiphase flashing; 2,5 Hz . Teach-In dynamic: LED green/yellow equiphase flashing; 1.0 Hz . Teach Error:LED green/yellow non equiphase flashing; 8.0 Hz .. Control elements: Teach-In rotary switch for Switching operation, Teach-In mark, Teach-In background and dynamic Teach-In. Operating voltage: 10 … 30 V DC. Ripple: 10 %. No-load supply current: ≤ 80 mA. Function input: Ext. Teach-In input (ET). Switching type: light/dark on. Signal output: 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Switching frequency: 10 kHz. Response time: 50 µs. Product standard: EN 60947-5-2. Protection class: II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1. UL approval: cULus Listed , Class 2 power source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 … 60 °C (-4 … 140 °F). Storage temperature: -40 … 75 °C (-40 … 167 °F). Degree of protection: IP67. Connection: Metal connector, M12, 5-pin, 90° rotatable. Material: . HousingFrame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PCOptical facePlastic pane: . Housing: Frame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PC. Optical face: Plastic pane. Mass: 60 g. Dimensions: . Height49 mmWidth41.5 mmDepth15 mm: . Height: 49 mm. Width: 41.5 mm. Depth: 15 mm
