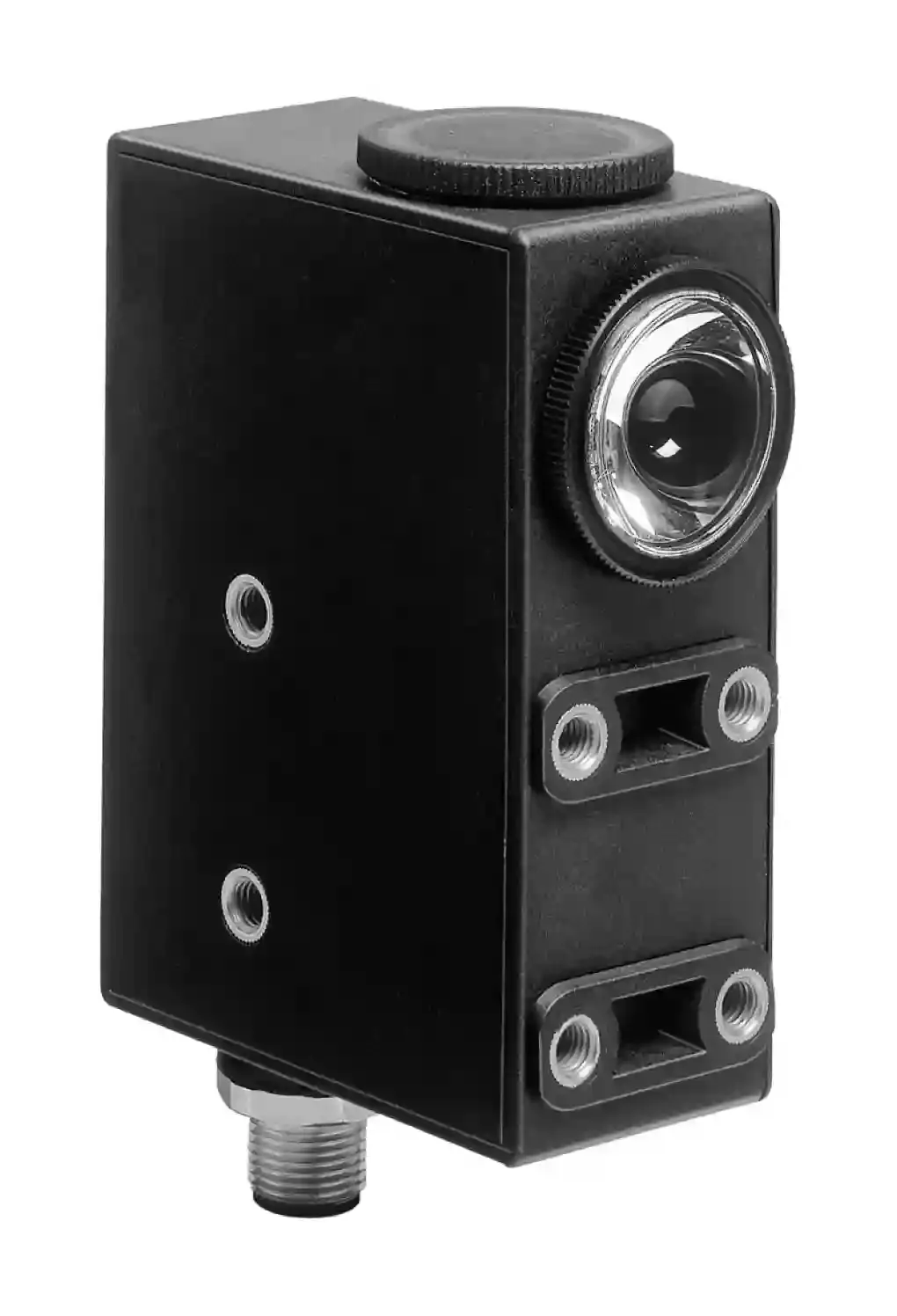

Pepperl Fuchs DF20/35A/49/124

Print mark color sensor. Print mark color sensor, 25 mm detection range, RGB light with rectangular light spot, external Teach-In, Teach-In button, NPN output, PNP output, M12 plug, Diffuse mode sensor for recording colored print marks on backgrounds with different colors, Teach-in procedure for automatic threshold value setting, 3 emitter colors: green, red and blue, Very short response time, Optical system exchangeable by 90°. Sensor range: 25 mm ± 4mm. Light source: 3 LEDs (R,G,B). Light type: Visible green/red/blue, modulated light. Light spot representation: rectangular 2 mm x 8.5 mm. Angle deviation: max. ± 3°. MTTFd: 650 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED yellow, lights up if print mark is detectedflashes, if no safe operation is possible. Control elements: Teach-In key. Operating voltage: 10 … 30 V DC. Ripple: 10 %. No-load supply current: ≤ 55 mA. Function input: Teach-In input. Switching type: PNP switches according to +UB, NPN according to 0 V for detected mark. Signal output: 1 PNP and 1 NPN short-circuit protected, open collector, synchronized-switching. Switching voltage: PNP: ≥ (+UB -2.5 V) , NPN: ≤ 1.5 V. Switching current: max. 200 mA. Switching frequency: 1.65 kHz. Response time: 300 µs. Product standard: EN 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Approvals: CE. Ambient temperature: -20 … 60 °C (-4 … 140 °F). Storage temperature: -20 … 75 °C (-4 … 167 °F). Degree of protection: IP67. Connection: 5-pin, M12 x 1 connector. Material: . HousingPC (glass-fiber-reinforced Makrolon)Optical faceglass: . Housing: PC (glass-fiber-reinforced Makrolon). Optical face: glass. Mass: 200 g. Dimensions: . Height85.5 mmWidth33 mmDepth60.8 mm: . Height: 85.5 mm. Width: 33 mm. Depth: 60.8 mm
