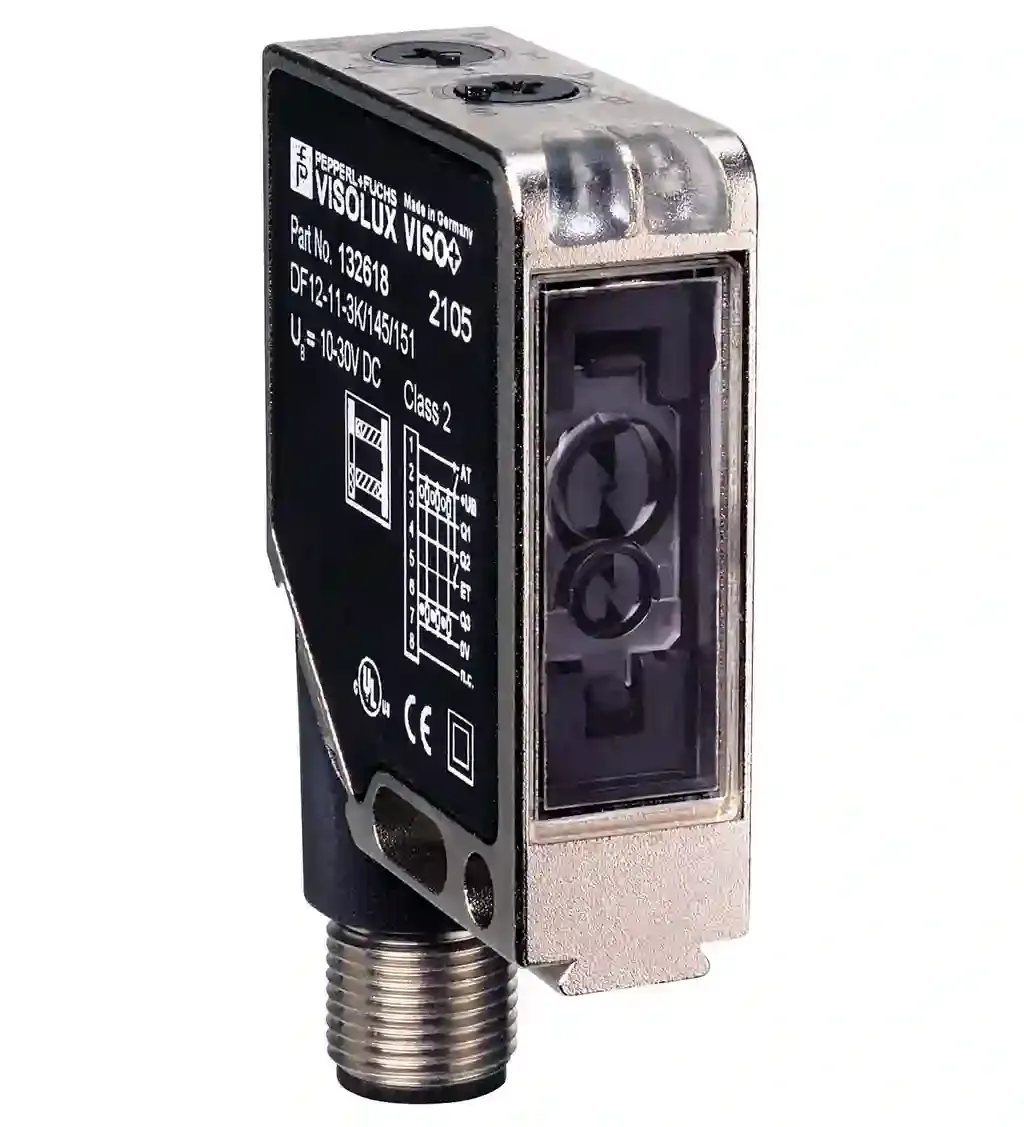

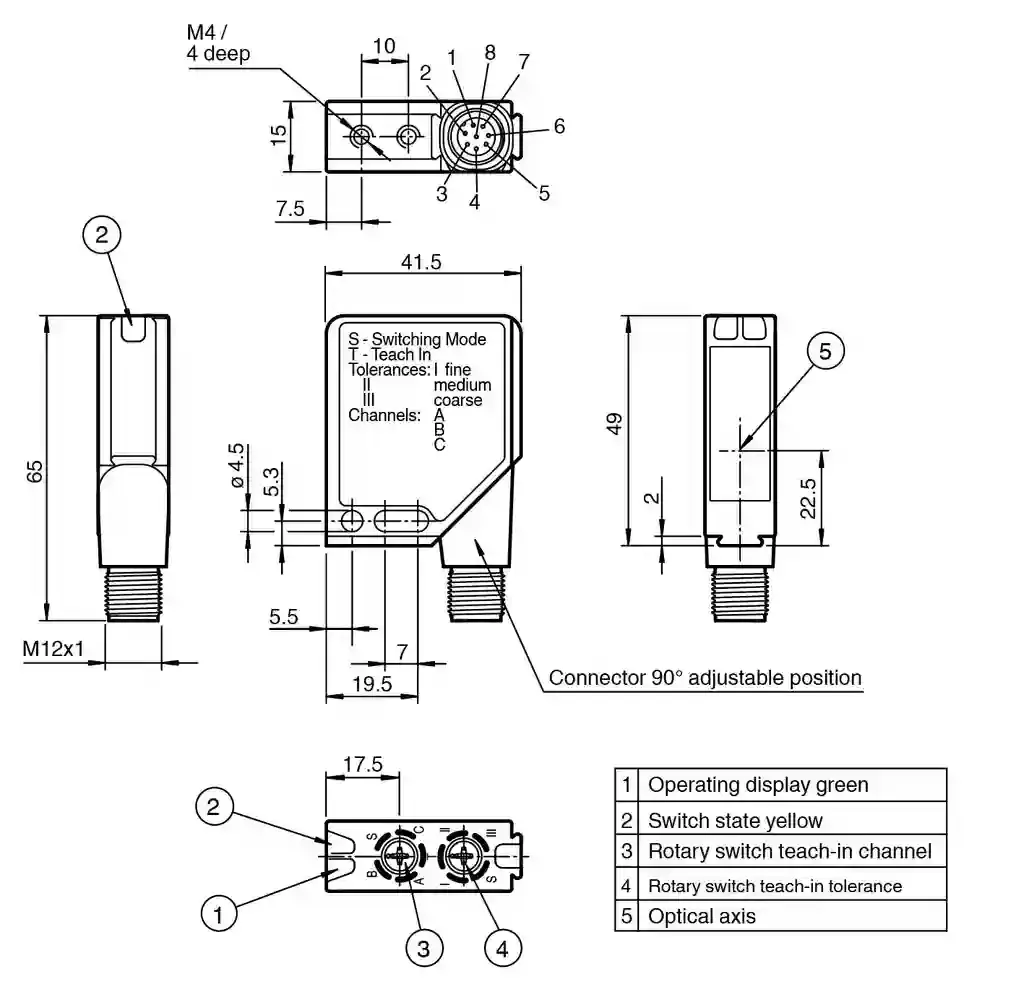

Pepperl Fuchs DF12-11-3K/145/151

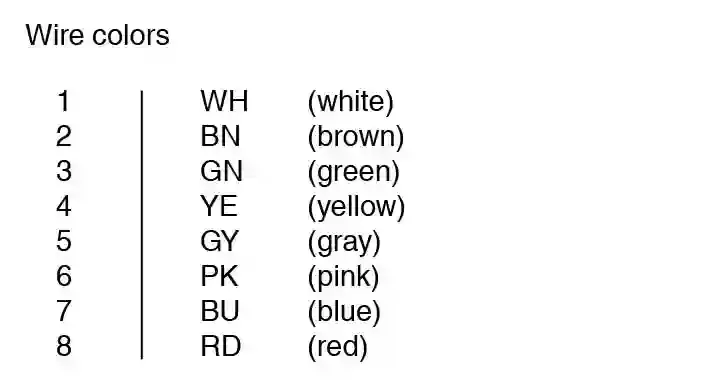

Print mark color sensor. Print mark color sensor, 11 mm detection range, RGB light, external Teach-In, 3 push-pull outputs, M12 plug, Diffuse mode sensor for recording colored print marks on backgrounds with different colors, Color detection by means of the active three-range method, Teach-in procedure for automatic threshold value setting, 3 independent channels, 3 tolerance steps per channel. Sensor range: 11 mm ± 2 mm. Light source: 3 LEDs (R,G,B). Light type: Visible green/red/blue, modulated light. LED risk group labelling: Risk group 2. Light spot representation: 1 mm x 3 mm. Angle deviation: max. ± 3°. MTTFd: 730 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 60 %. Operation indicator: LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: 2 LEDs yellow, light up in case of detection. Teach-in indicator: Teach-In channel: LED green/yellow equiphase flashing; 2.5 Hz . Teach-In tolerance: LED green/yellow non equiphase flashing; 2.5 Hz .. Control elements: 2 Teach-In rotary switch for Teach-In channel and Teach-In tolerance .. Operating voltage: 10 … 30 V DC. Ripple: 10 %. No-load supply current: ≤ 40 mA. Protection class: II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1. Function input: Ext. Teach-In input (ET)Ext. blanking-input (AT). Signal output: 3 push-pull (4 in 1) outputs, short-circuit proof, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Switching frequency: 500 Hz. Response time: 1 ms. Product standard: EN 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Approvals: CE, cULus. Ambient temperature: 10 … 50 °C (50 … 122 °F). Storage temperature: -20 … 75 °C (-4 … 167 °F). Degree of protection: IP67. Connection: 8-pin, M12 metal connector, 90° convertible. Material: . HousingFrame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PCOptical facePlastic pane: . Housing: Frame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PC. Optical face: Plastic pane. Mass: 60 g. Dimensions: . Height49 mmWidth41.5 mmDepth15 mm: . Height: 49 mm. Width: 41.5 mm. Depth: 15 mm. Note: (use V19 type connection cable )
