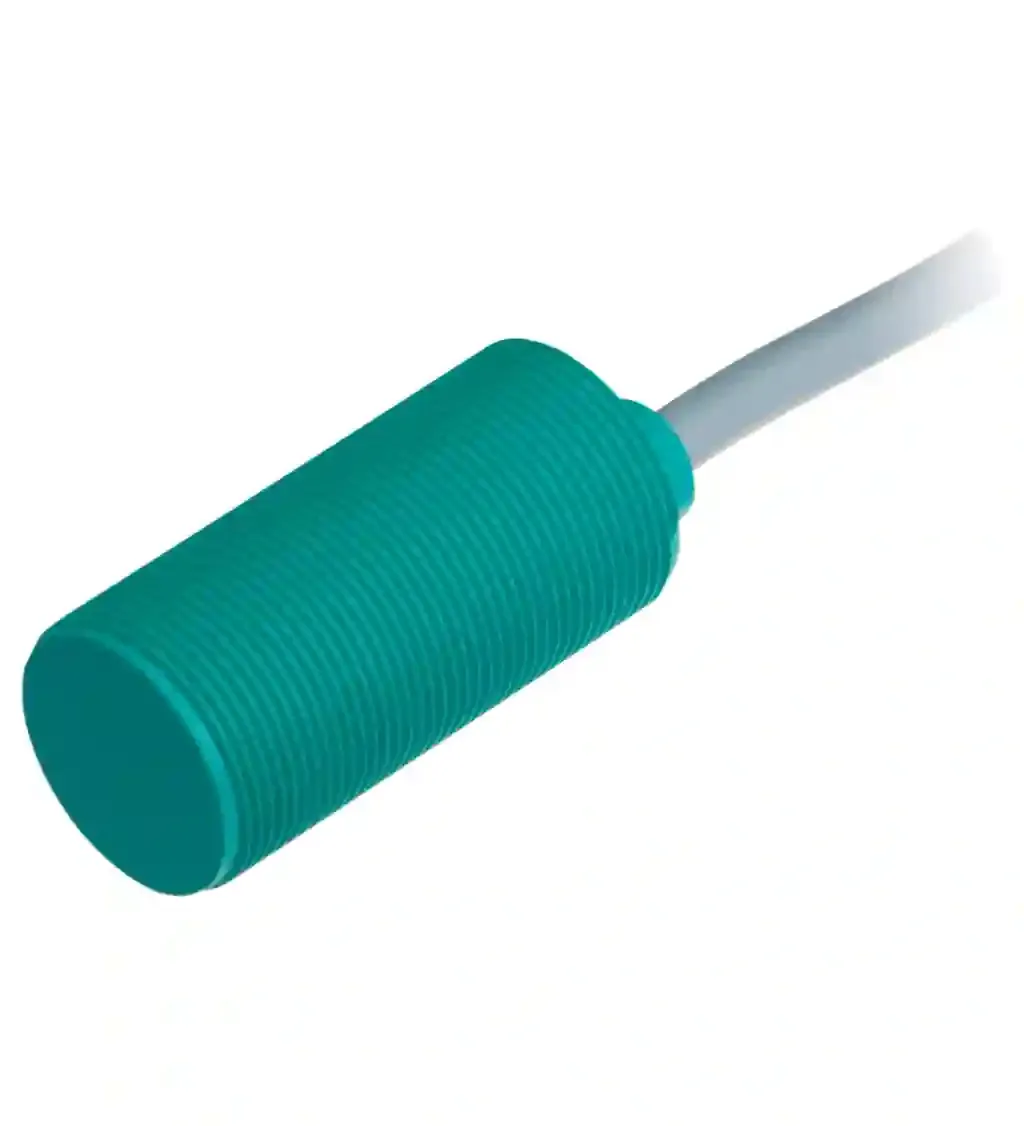

Pepperl Fuchs CBN15-30GK60-E0

Capacitive sensor. Switching function: Normally open (NO), Output type: NPN, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 … 30 V DC, Potentiometer: sensitivity adjustment, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP67. Switching function: Normally open (NO). Output type: NPN. Rated operating distance: 15 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 … 12.1 mm. Output type: 3-wire. Installation conditions: . A18 mmB10 mmC30 mmF60 mm: . A: 18 mm. B: 10 mm. C: 30 mm. F: 60 mm. Operating voltage: 10 … 30 V DC. Switching frequency: 0 … 10 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2.8 V. Operating current: 0 … 200 mA. Off-state current: 0 … 0.5 mA typ. 0.1 µA at 25 °C. Off-state current TU =40 °C, switching element off≤ 100 µA: . Off-state current TU =40 °C, switching element off: ≤ 100 µA. No-load supply current: ≤ 20 mA. Time delay before availability: ≤ 50 ms. Switching state indicator: LED, yellow. Potentiometer: sensitivity adjustment. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Enclosure Type Rating: Type 1 Supply/Switching Voltage:. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: cable. Housing material: PBT. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter6.4 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.75 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 6.4 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.75 mm2. Length: 2 m. Dimensions: . Length60 mmDiameter30 mm: . Length: 60 mm. Diameter: 30 mm
