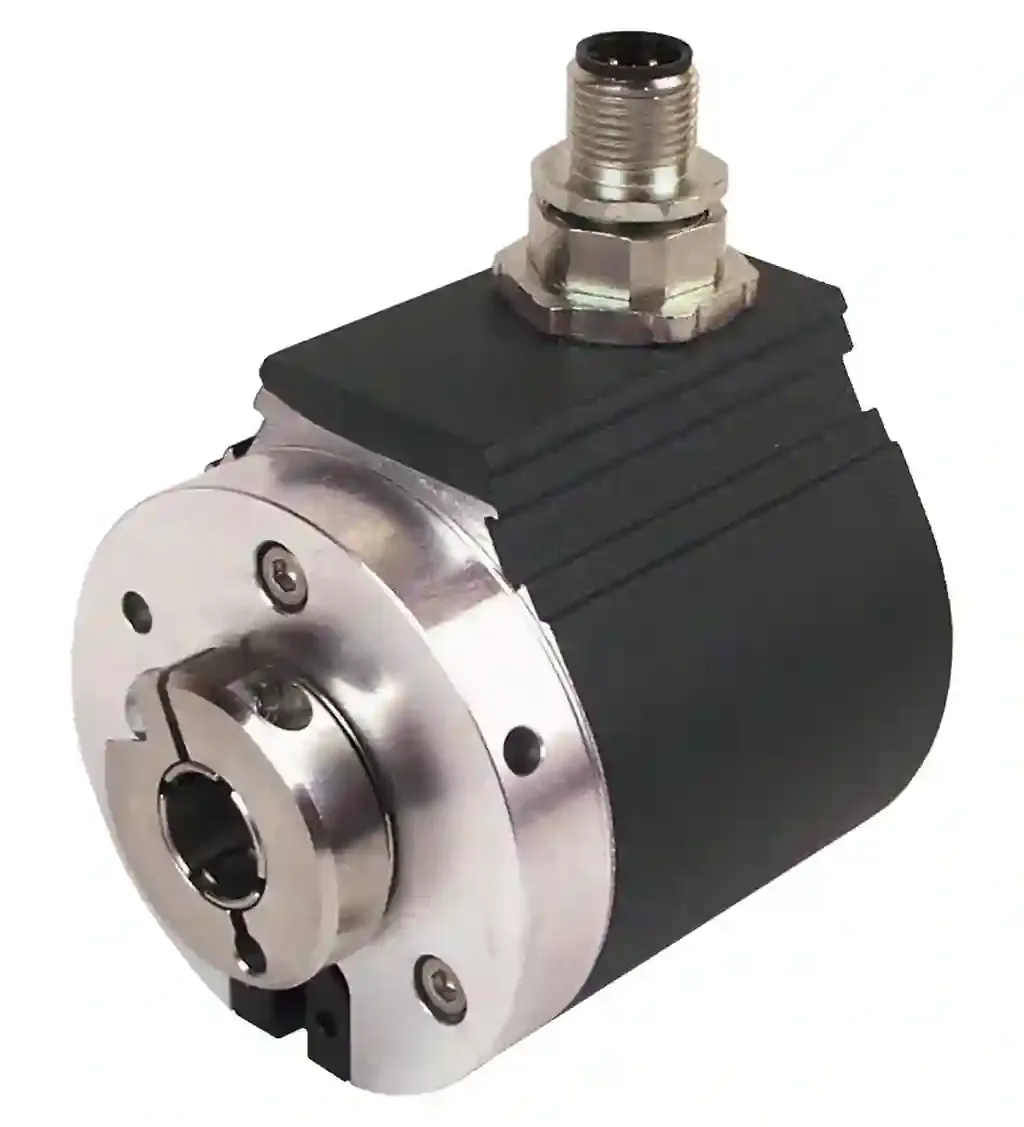

Pepperl Fuchs BSS58

Singleturn absolute rotary encoder. Industrial standard housing ∅58 mm, 13 Bit singleturn, Output code: gray and binary, Transfer of position data with 4 AS-Interface slaves, Parameterization and addressing via AS-Interface, Enclosure type: 58 mm, Type of shaft: Recessed hollow shaft, Interface: AS-Interface, Detection type: photoelectric sampling, Interface type: AS-Interface. Detection type: photoelectric sampling. Device type: Singleturn absolute rotary encoder. Operating voltage: 29.5 … 31.6 V DC. No-load supply current: max. starting current 155 mA , operating current max. 85 mA. Linearity: ± 1 LSB. Output code: programmable, Gray code, binary code. Code course (counting direction): programmable,cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending). Interface type: AS-Interface. Resolution: . Single turn13 BitOverall resolution13 Bit: . Single turn: 13 Bit. Overall resolution: 13 Bit. Transfer rate: max. 0.167 MBit/s. Standard conformity: AS-Interface. Connector: type V1, M12, 4-pin. Degree of protection: DIN EN 60529, IP65. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 100 g, 11 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 … 2000 Hz. Operating temperature: -20 … 70 °C (-4 … 158 °F). Storage temperature: -25 … 85 °C (-13 … 185 °F). Material: housing: powder coated aluminumflange: aluminumshaft: stainless steel. Mass: approx. 330 g. Rotational speed: max. 10000 min -1. Moment of inertia: 30 gcm2. Starting torque: ≤ 2 Ncm. Tightening torque, fastening screws: max. 1.8 Nm. Shaft load: . Angle offset1 °Axial offsetmax. 1 mm: . Angle offset: 1 °. Axial offset: max. 1 mm. Dimensions: . Length68 mmDiameter58 mm: . Length: 68 mm. Diameter: 58 mm
