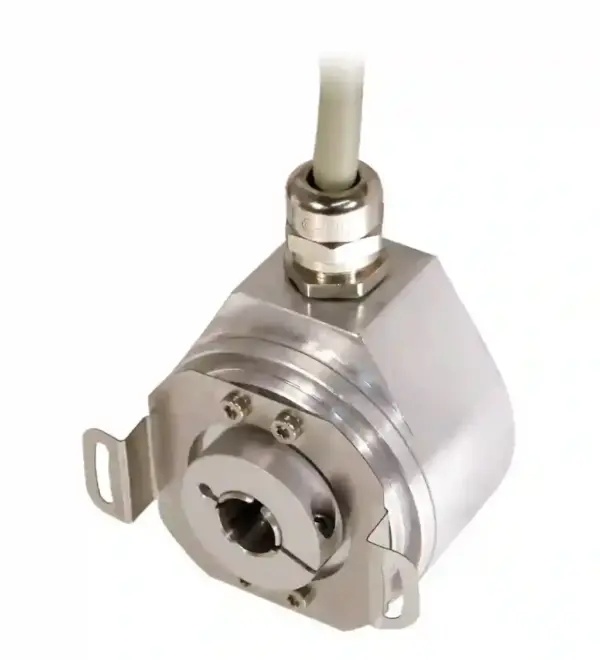

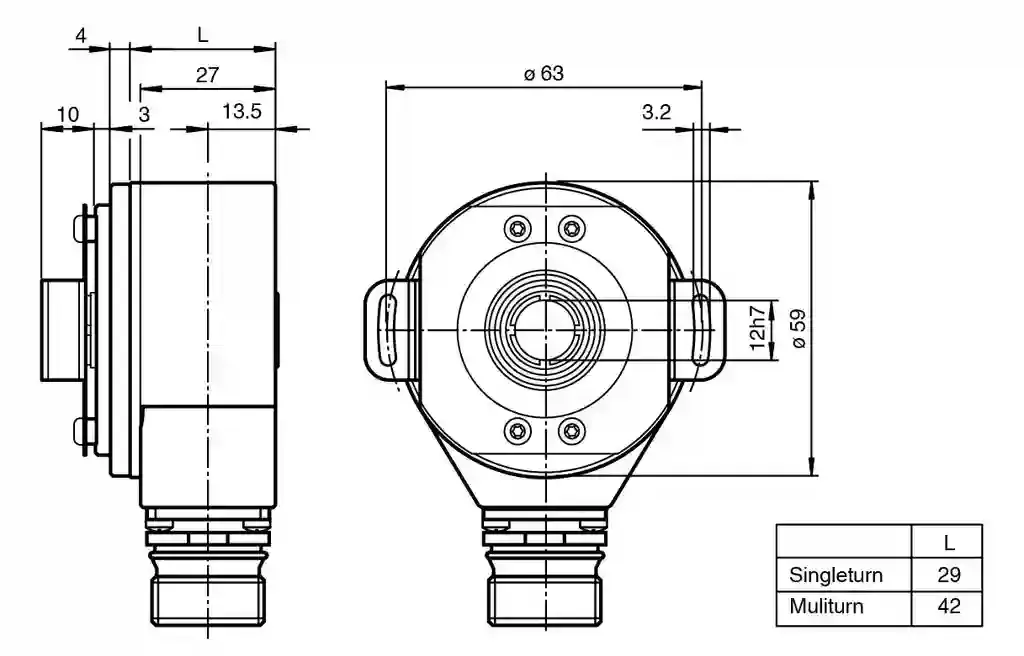

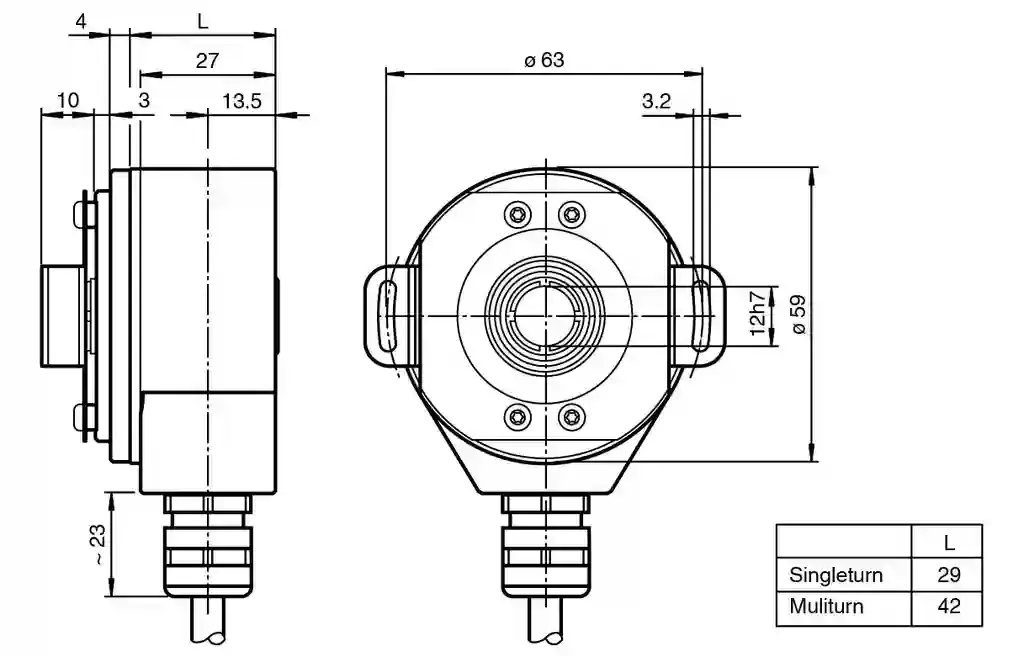

Pepperl Fuchs AHS58-0

Singleturn absolute rotary encoder. Industrial standard housing ∅58 mm, 16 Bit singleturn, Data transfer up to 2 MBaud, Optically isolated RS 422 interface, Zero-set function, Enclosure type: 58 mm, Type of shaft: Hollow shaft, Interface: SSI, Detection type: photoelectric sampling, Interface type: SSI, Input type: Selection of counting direction (cw/ccw). Detection type: photoelectric sampling. Device type: Singleturn absolute rotary encoder. Operating voltage: 4.5 … 30 V DC. No-load supply current: max. 180 mA. Time delay before availability: < 250 ms. Linearity: ± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit. Output code: Gray code, binary code. Code course (counting direction): cw descending (clockwise rotation, code course descending). Interface type: SSI. Monoflop time: 20 ± 10 µs. Resolution: . Single turnup to 16 BitOverall resolutionup to 16 Bit: . Single turn: up to 16 Bit. Overall resolution: up to 16 Bit. Transfer rate: 0.1 … 2 MBit/s. Voltage drop: UB – 2.5 V. Standard conformity: RS 422. Input type: Selection of counting direction (cw/ccw). Signal voltage: . High4.5 … 30 VLow0 … 2 V: . High: 4.5 … 30 V. Low: 0 … 2 V. Input current: < 6 mA. Switch-on delay: < 10 ms. Input type: zero-set (PRESET 1). Signal voltage: . High4.5 … 30 VLow0 … 2 V: . High: 4.5 … 30 V. Low: 0 … 2 V. Input current: < 6 mA. Signal duration: min. 100 ms. Switch-on delay: < 10 ms. Connector: type 9416 (M23), 12-pin, type 9416L (M23), 12-pin. Cable: ∅7 mm, 6 x 2 x 0.14 mm2, 1 m. Degree of protection: DIN EN 60529, IP65. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 20 g, 10 … 2000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source. Operating temperature: -40 … 85 °C (-40 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Material: . Combination 1housing: aluminum Flange: aluminum Shaft: stainless steel: . Combination 1: housing: aluminum Flange: aluminum Shaft: stainless steel. Mass: approx. 300 g (combination 1). Rotational speed: max. 3000 min -1. Moment of inertia: 30 gcm2. Starting torque: < 3 Ncm. Shaft load: . Angle offset± 0.9 °Axial offsetstatic: ± 0.3 mm, dynamic: ± 0.1 mmRadial offsetstatic: ± 0.5 mm, dynamic: ± 0.2 mm: . Angle offset: ± 0.9 °. Axial offset: static: ± 0.3 mm, dynamic: ± 0.1 mm. Radial offset: static: ± 0.5 mm, dynamic: ± 0.2 mm. Dimensions: . Length36 mmDiameter59 mm: . Length: 36 mm. Diameter: 59 mm
