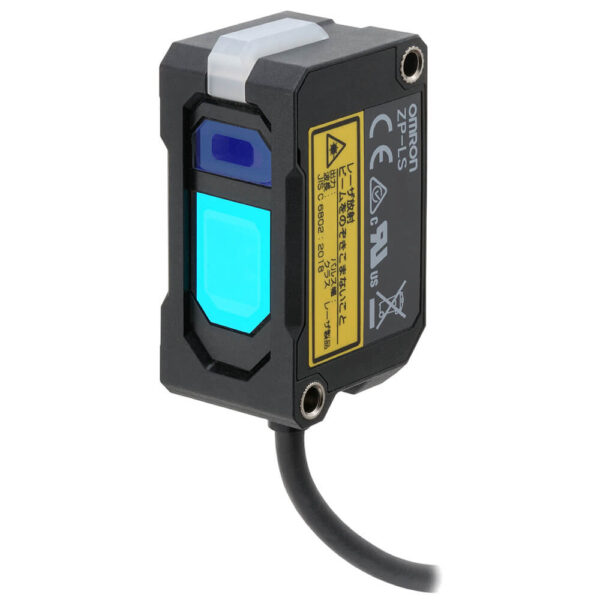

Omron ZP-LS100L 2M
Laser displacement sensor, sensor head, diffuse, 100 mm±35 mm sensing range, 1.2 µm resolution, line-beam, Class2, 2 m prewired
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser displacement sensor, sensor head, diffuse, 100 mm±35 mm sensing range, 1.2 µm resolution, line-beam, Class2, 2 m prewired
Specification
| Sensing method |
Diffuse reflective |
|---|---|
| Measuring range length |
65-135 mm |
| Geometrical resolution |
0.0012 mm |
| Reference distance |
100 mm |
| Relative linearity deflection |
0.065 % |
| Spot size |
130 µm x 2900 µm |
| Repeat accuracy |
1.2 µm |
| Cable length |
2 m |
| Type of light |
Laser diode, red light |
| Laser class |
2 |
| Connection method |
M8 pigtail connector 4 pin |
| Degree of protection (IP) |
IP67 |
| Material housing |
PBT |
