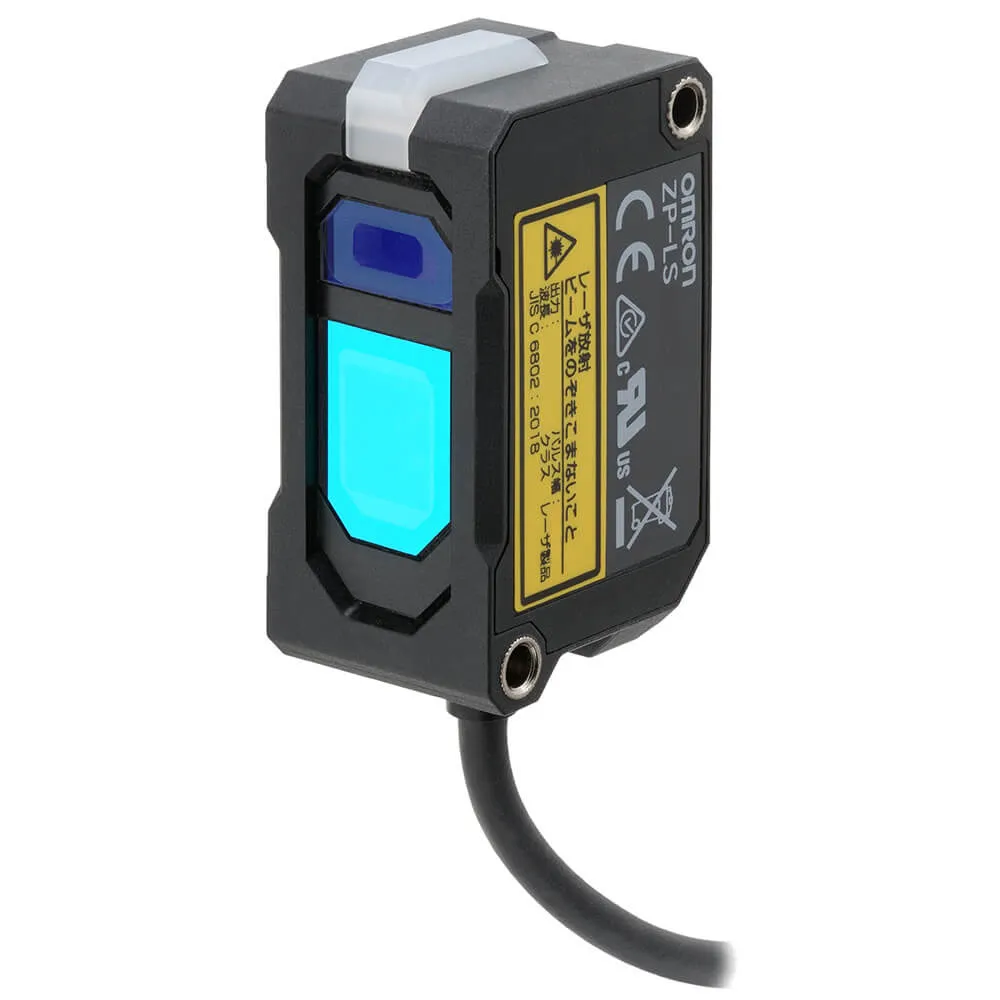

Omron ZP-LS025L 2M
Laser displacement sensor, sensor head, diffuse, 25 mm±5 mm sensing range, 0.5 µm resolution, line-beam, Class 2, 2 m prewired
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser displacement sensor, sensor head, diffuse, 25 mm±5 mm sensing range, 0.5 µm resolution, line-beam, Class 2, 2 m prewired
Specification
| Sensing method | Diffuse reflective |
|---|---|
| Measuring range length | 20-30 mm |
| Geometrical resolution | 0.0005 mm |
| Reference distance | 25 mm |
| Relative linearity deflection | 0.08 % |
| Spot size | 50 µm x 1000 µm |
| Repeat accuracy | 0.5 µm |
| Cable length | 2 m |
| Type of light | Laser diode, red light |
| Laser class | 2 |
| Connection method | M8 pigtail connector 4 pin |
| Degree of protection (IP) | IP67 |
| Material housing | PBT |
