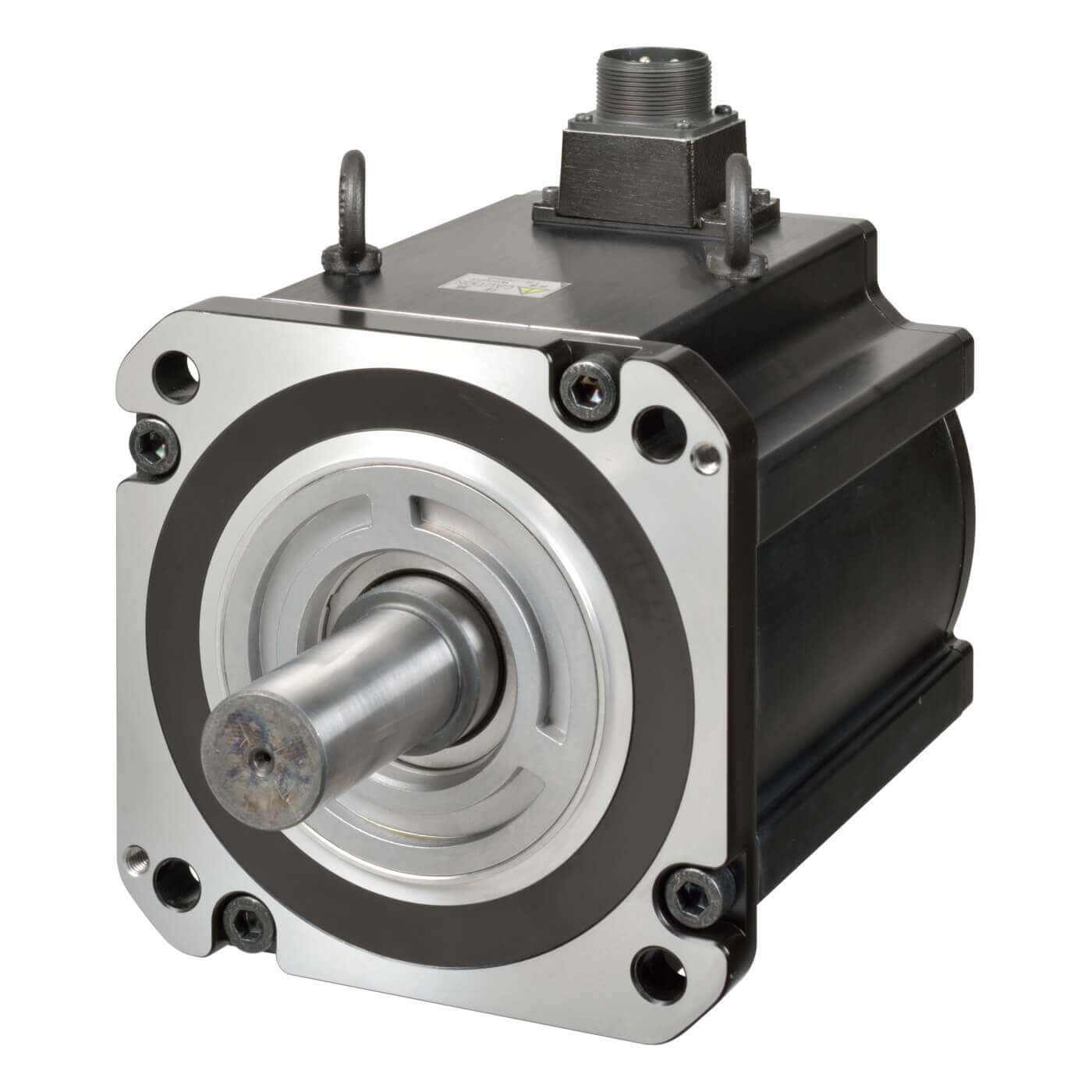

Omron R88M-1M11K015C-BS2
1S AC servo motor, 11 kW, 400 VAC, 1500 rpm, 70.0 Nm, absolute encoder, with brake
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
1S AC servo motor, 11 kW, 400 VAC, 1500 rpm, 70.0 Nm, absolute encoder, with brake
Specification
| Servo control method |
EtherCAT |
|---|---|
| Drive supply voltage |
400 V three phase |
| Rated output |
11 kW |
| Rated speed |
1500 r/min |
| Rated torque |
70 Nm |
| Peak torque |
175 Nm |
| Encoder type |
Absolute without battery |
| Encoder resolution |
23 Bit |
| Motor with brake |
Yes |
| Motor with oil seal |
No |
| Flange size square (LC) |
220 mm |
| Shaft diameter |
55 mm |
| Shaft with key |
Yes |
| Shaft with tap |
Yes |
| Product Weight (unpacked) |
73000 g |
