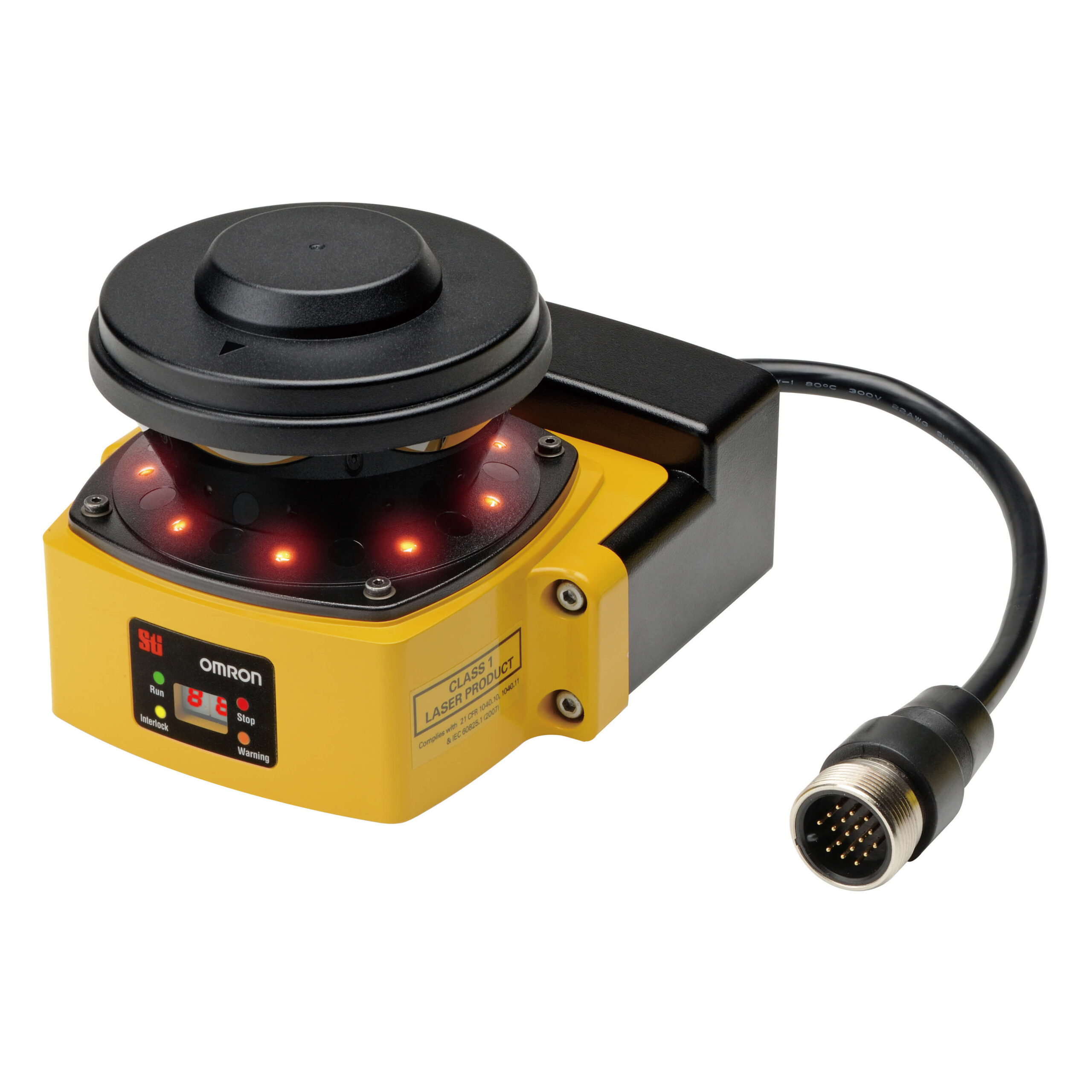

Omron OS32C-BP-4M
Safety laser scanner, OS32C, safety radius 4 m, warning zone 15 m, PLd & Cat 3, 24 VDC, back location cable exit
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety laser scanner, OS32C, safety radius 4 m, warning zone 15 m, PLd & Cat 3, 24 VDC, back location cable exit
Specification
| Type of safety according to IEC 61496-1 |
3 |
|---|---|
| Maximum safety range |
4 m |
| Maximum warning range |
15 m |
| Cable entry direction |
Back |
| Type of switching output of the OSSD |
PNP |
| Connection method |
Pigtail connector |
| Key features |
Configurable object resolution of 30, 40, 50 or 70 mm, Manual/auto start, Reference boundary monitoring |
| Type of protection |
Hand protection |
| Detection capability |
70 mm |
| Suitable for safety functions |
Yes |
| Scan angle |
270 ° |
| Scanning interval |
0.4 Hz |
| Response time |
80 ms |
| Number of safety fields |
140 |
| Wavelength of the sensor |
905 nm |
| Number of protected semiconductor outputs |
2 |
| Number of semiconductor outputs with signalling function |
2 |
| Laser protection class |
Class 1 |
| Supply voltage DC |
16.8-30 V |
| Voltage type |
DC |
| Max. output current at protected output |
250 mA |
| Degree of protection (IP) |
IP65 |
| With alert field output |
Yes |
| Ambient temperature |
-10-50 °C |
| Overall length of sensor |
143 mm |
| Height of sensor |
105 mm |
| Width of sensor |
105 mm |
