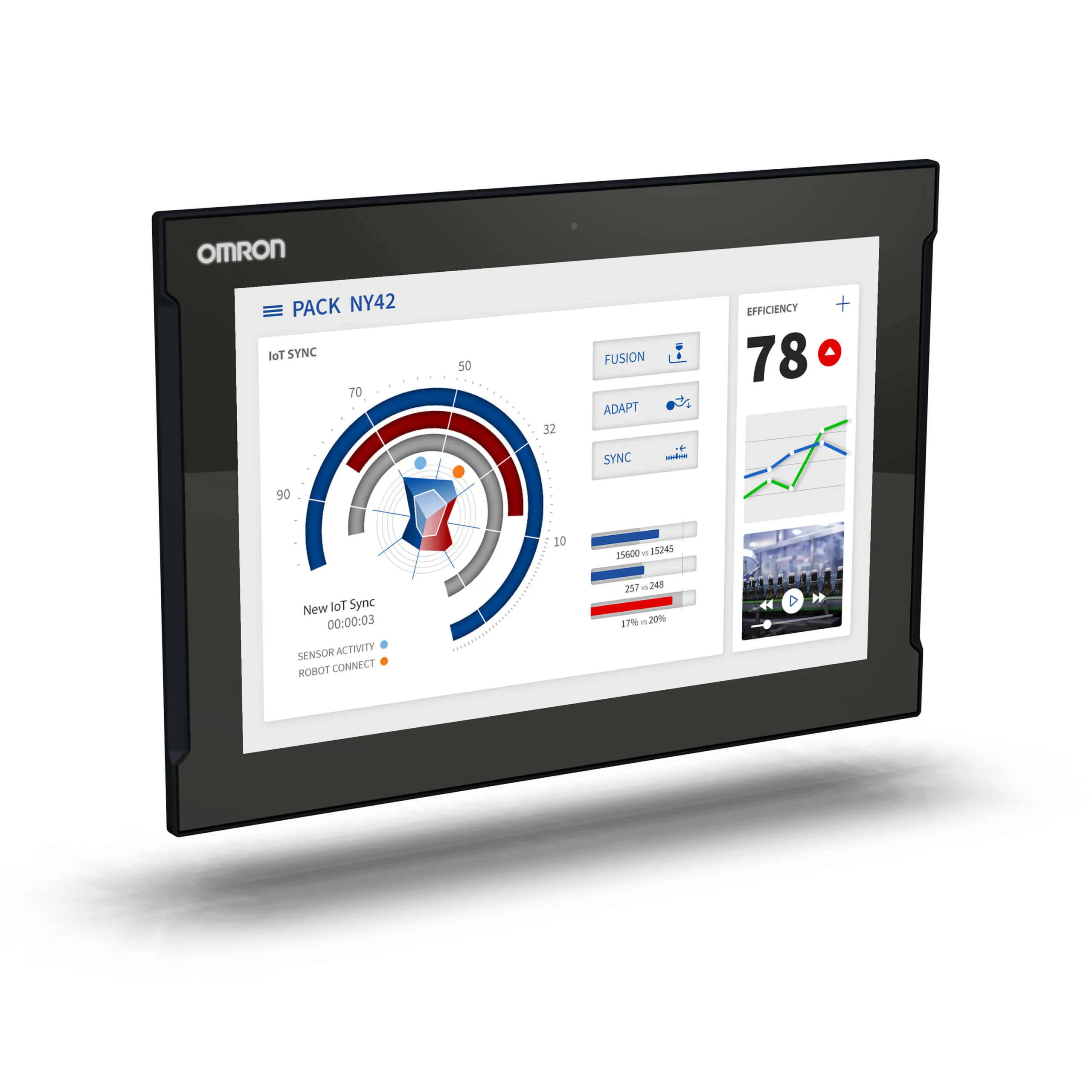

Omron NYP65-60530-15WC1000
Industrial Panel PC with Intel® Core™ i5-1145GRE, 64 GB RAM (non-ECC), No exp. slots, WIN 10 IoT 2021 (64-bit), 512 GB CFast 3DTLC, No I/F option, 15.4″ (1280×800) capacitive touchscreen, build-in typ…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Industrial Panel PC with Intel® Core™ i5-1145GRE, 64 GB RAM (non-ECC), No exp. slots, WIN 10 IoT 2021 (64-bit), 512 GB CFast 3DTLC, No I/F option, 15.4″ (1280×800) capacitive touchscreen, build-in type
Specification
| Screen diagonal |
15.4 in |
|---|---|
| Max. number of motion axes |
0 |
| Processor family |
Intel® Core™ i5 |
| Processor specification |
1145GRE (1.5 GHz) |
| Cooling method |
Passive cooling (fanless) |
| Memory |
64 GB RAM (non-ECC) |
| Storage |
512 GB CFast 3DTLC |
| Operating system |
Windows 10 IoT Enterprise 2021 LTSC – 64 bit |
| Expansion slot |
No Expansion |
| Modular port |
No Port |
| Communication port(s) |
EtherNet/IP, Ethernet TCP/IP, USB |
| Video output |
DisplayPort++ |
| Material housing |
Aluminium, black |
| Display ratio |
16:10 |
| Number of pixels, horizontal |
1280 |
| Number of pixels, vertical |
800 |
| Type of display |
TFT |
| Touchscreen technology |
Projected capacitive |
| Mounting method |
Build-in |
| Degree of protection (IP), front side |
IP65 |
| Operating temperature |
0-55 °C |
| Supply voltage DC |
20.4-28.8 V |
| Height of the front |
277 mm |
| Width of the front |
401 mm |
| Height of panel cutout |
259 mm |
| Width of panel cutout |
383 mm |
| Built-in depth |
63 mm |
| Product Weight (unpacked) |
5600 g |
