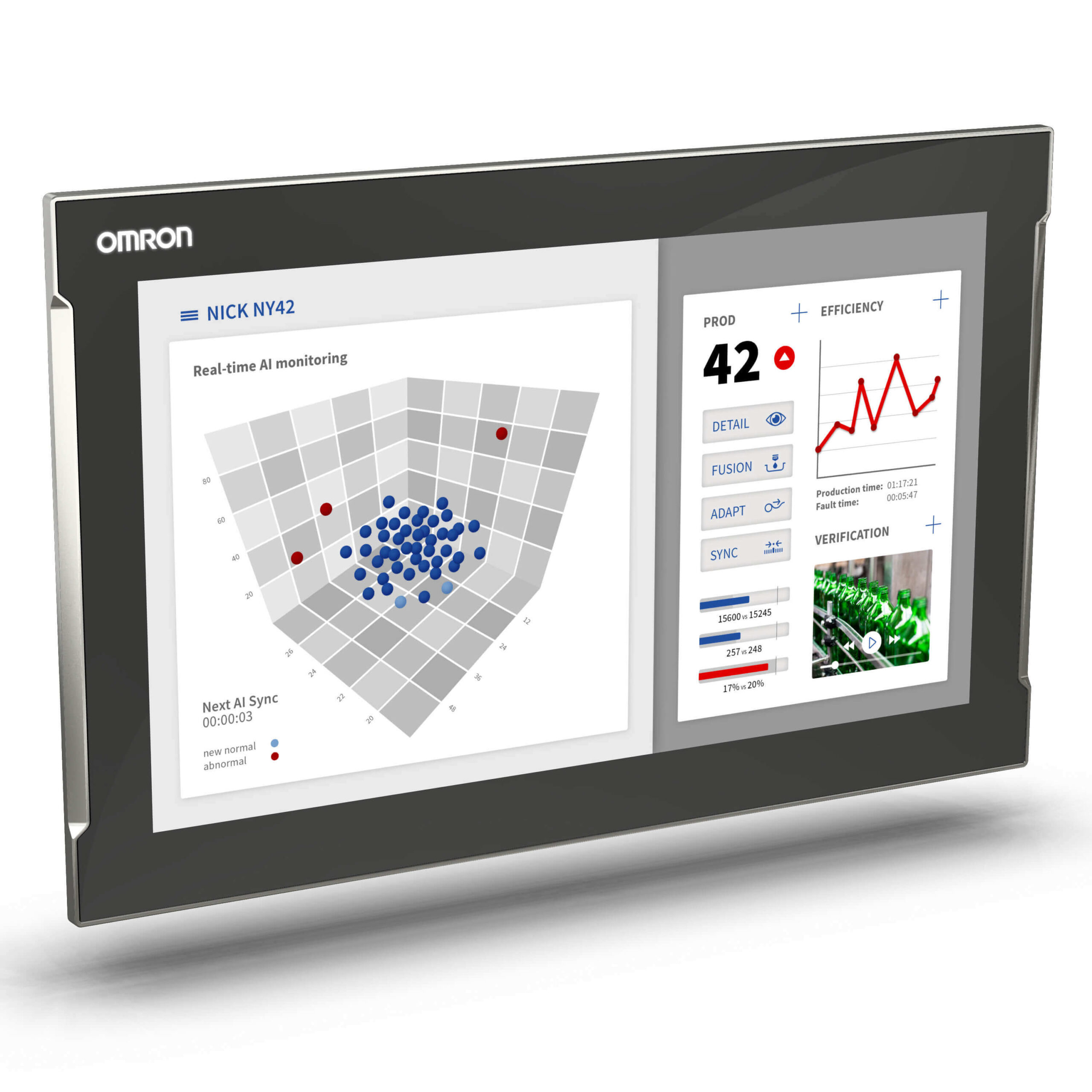

Omron NYP65-50530-19WC1100
Industrial Panel PC with Intel® Core™ i5-1145GRE, 32 GB RAM (non ECC), No exp. slots, WIN 10 IoT 2021 (64-bit), 512 GB CFast 3DTLC, No I/F option, 18.5″ (1920×1080) capacitive touchscreen, build-in ty…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Industrial Panel PC with Intel® Core™ i5-1145GRE, 32 GB RAM (non ECC), No exp. slots, WIN 10 IoT 2021 (64-bit), 512 GB CFast 3DTLC, No I/F option, 18.5″ (1920×1080) capacitive touchscreen, build-in type, Ni plating
Specification
| Screen diagonal |
18.5 in |
|---|---|
| Max. number of motion axes |
0 |
| Processor family |
Intel® Core™ i5 |
| Processor specification |
1145GRE (1.5 GHz) |
| Cooling method |
Passive cooling (fanless) |
| Memory |
32 GB RAM (non ECC) |
| Storage |
512 GB CFast 3DTLC |
| Operating system |
Windows 10 IoT Enterprise 2021 LTSC – 64 bit |
| Expansion slot |
No Expansion |
| Modular port |
No Port |
| Communication port(s) |
EtherNet/IP, Ethernet TCP/IP, USB |
| Video output |
DisplayPort++ |
| Material housing |
Aluminium, nickel plating |
| Display ratio |
16:9 |
| Number of pixels, horizontal |
1920 |
| Number of pixels, vertical |
1080 |
| Type of display |
TFT |
| Touchscreen technology |
Projected capacitive |
| Mounting method |
Build-in |
| Degree of protection (IP), front side |
IP65 |
| Operating temperature |
0-55 °C |
| Supply voltage DC |
20.4-28.8 V |
| Height of the front |
303 mm |
| Width of the front |
481 mm |
| Height of panel cutout |
285 mm |
| Width of panel cutout |
463 mm |
| Built-in depth |
63 mm |
| Product Weight (unpacked) |
6600 g |
