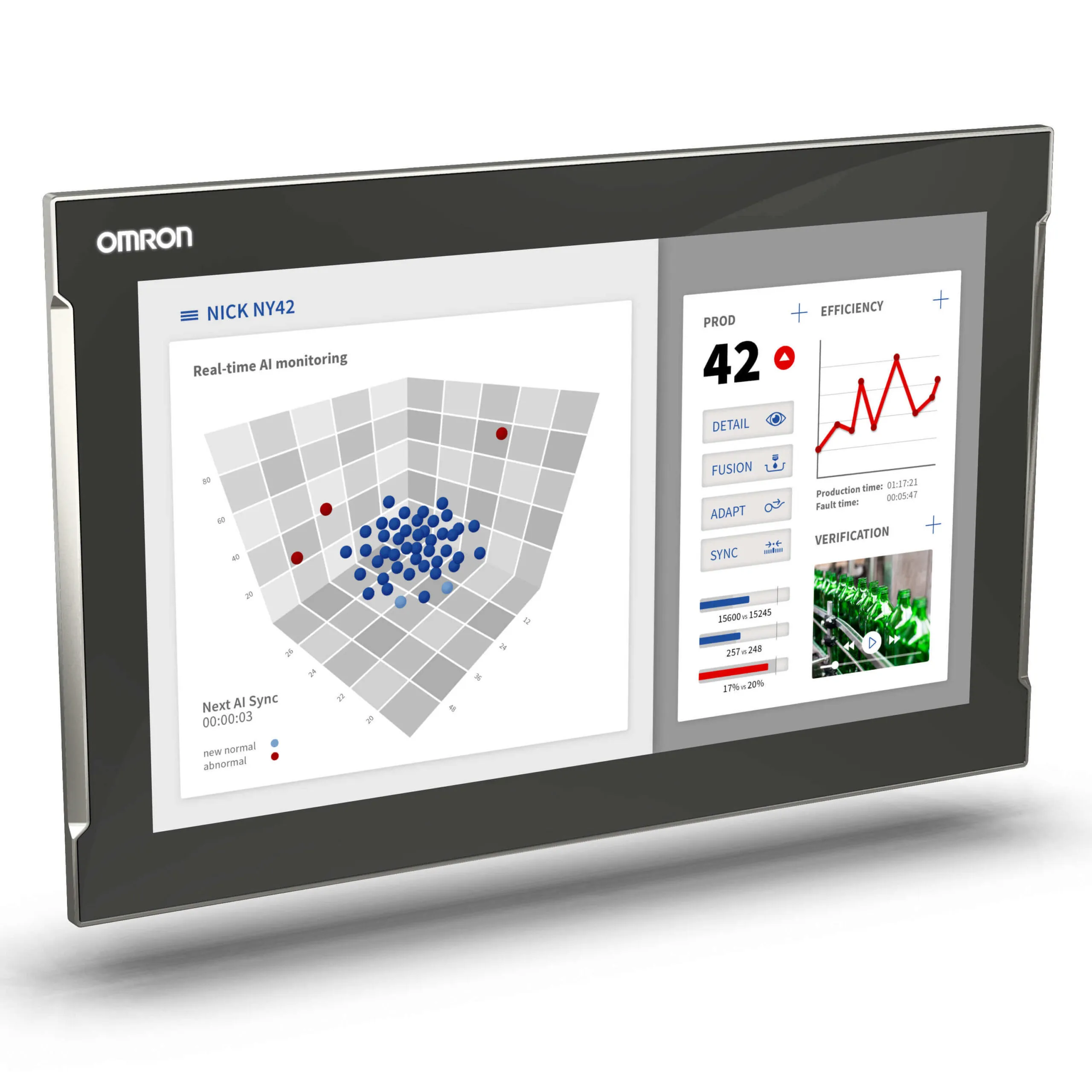

Omron NY532-1400-023443660
Machine Controller for 32 axes, Industrial Panel PC with Intel® Core™ i5-7440EQ, 8 GB RAM (non ECC), 128 GB CFast MLC, Windows 10 IoT Enterprise 2019 LTSC – 64 bit, NYML Port, 18.5″ (1920×1080) capaci…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Machine Controller for 32 axes, Industrial Panel PC with Intel® Core™ i5-7440EQ, 8 GB RAM (non ECC), 128 GB CFast MLC, Windows 10 IoT Enterprise 2019 LTSC – 64 bit, NYML Port, 18.5″ (1920×1080) capacitive touchscreen, Ni plating
Specification
| IPC type |
Panel PC |
|---|---|
| Controller type |
Machine Control |
| Max. number of motion axes |
32 |
| Screen diagonal |
18.5 in |
| Processor family |
Intel® Core™ i5 |
| Processor specification |
7440EQ (2.9 GHz) |
| Cooling method |
Active cooling (fan) |
| Memory |
8 GB RAM (non ECC) |
| Storage |
128 GB CFast MLC |
| Operating system |
Windows 10 IoT Enterprise 2019 LTSC – 64 bit |
| Expansion slot |
No Expansion |
| Modular port |
NYML |
| Communication port(s) |
EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB |
| Video output |
DVI-I |
| Display ratio |
16:9 |
| Number of pixels, horizontal |
1920 |
| Number of pixels, vertical |
1080 |
| Type of display |
TFT |
| Touchscreen technology |
Projected capacitive |
| Mounting method |
Build-in |
| Material housing |
Aluminium, nickel plating |
| Degree of protection (IP), front side |
IP65 |
| Operating temperature |
0-55 °C |
| Supply voltage DC |
20.4-28.8 V |
| Height of the front |
303 mm |
| Width of the front |
481 mm |
| Height of panel cutout |
285 mm |
| Width of panel cutout |
463 mm |
| Built-in depth |
63 mm |
| Product Weight (unpacked) |
7000 g |
