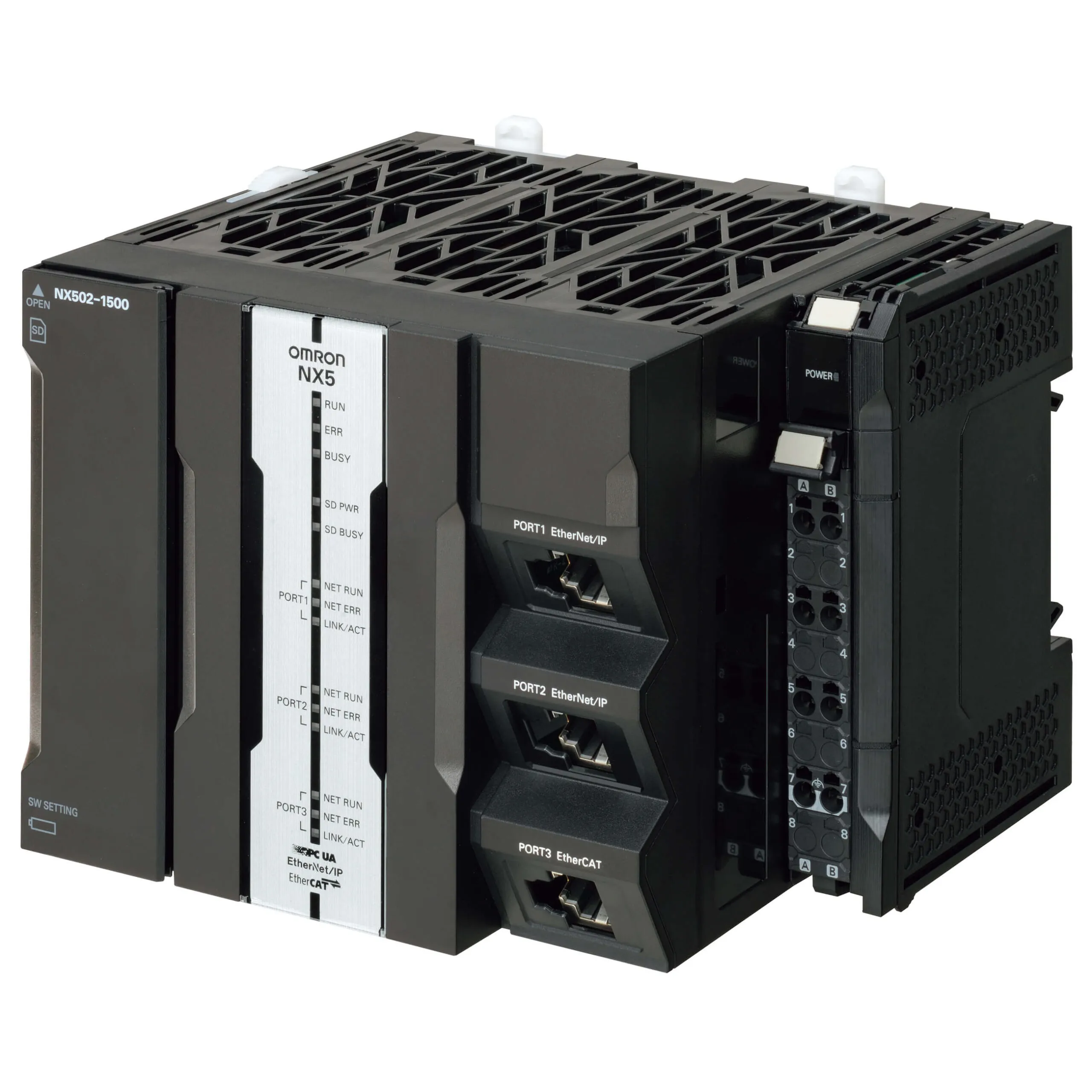

Omron NX502-1300
Sysmac NX5 CPU with SQL Database Connectivity, 80 MB program and 260 MB data memory, built-in EtherCAT (16 servo axes, in total 256 EtherCAT nodes) and 2 Ethernet ports (OPC-UA and EtherNet/IP)
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Sysmac NX5 CPU with SQL Database Connectivity, 80 MB program and 260 MB data memory, built-in EtherCAT (16 servo axes, in total 256 EtherCAT nodes) and 2 Ethernet ports (OPC-UA and EtherNet/IP)
Specification
| Controller functionality |
DB connection, Motion control, OPC-UA, Sequence control |
|---|---|
| Primary task cycle time |
0.250 ms |
| Program memory |
80 MB |
| Variables memory |
260 MB |
| Max. number of synchronous axes |
16 |
| Max. number of axes (incl. virtual) |
32 |
| Communication port(s) |
EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication option(s) |
EtherCAT Slave, Ethernet TCP/IP, IO-Link, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes |
256 |
| I/O system |
NX I/O Bus |
| Max. number of expansion units |
63 |
| Product Weight (unpacked) |
946.468 g |
