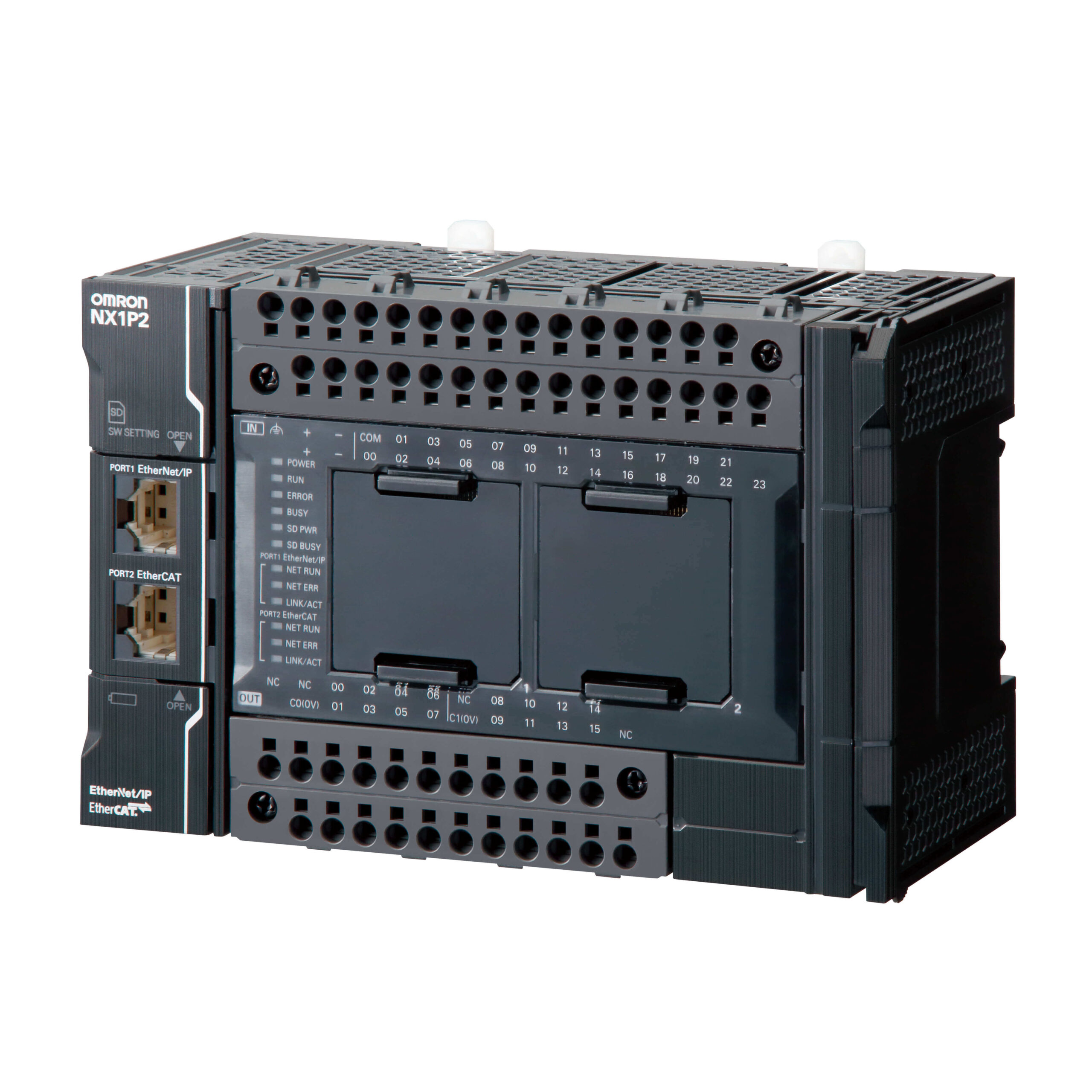

Omron NX1P2-1140DT1
Sysmac NX1P CPU with 40 Digital Transistor I/O (PNP), 1.5 MB memory, EtherCAT (4 servo axes, 4 PTP axes, 16 EtherCAT nodes), EtherNet/IP and 2 serial option ports
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Sysmac NX1P CPU with 40 Digital Transistor I/O (PNP), 1.5 MB memory, EtherCAT (4 servo axes, 4 PTP axes, 16 EtherCAT nodes), EtherNet/IP and 2 serial option ports
Specification
| Primary task cycle time |
2 ms |
|---|---|
| Program memory |
1.5 MB |
| Variables memory |
2 MB |
| Max. number of synchronous axes |
4 |
| Max. number of PTP axes |
4 |
| Number of digital inputs |
24 |
| Input type |
PNP/NPN |
| Number of digital outputs |
16 |
| Output type |
PNP |
| Number of serial option boards |
2 |
| Max. number of expansion units |
8 |
| Max. number of remote I/O nodes |
16 |
| Communication port(s) |
EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Number of Ethernet ports |
2 |
| Number of USB ports |
0 |
| Communication option(s) |
Serial RS-232C, Serial RS-422, Serial RS-485 |
| Real-time clock |
Yes |
| Supply voltage DC |
20.4-28.8 V |
| Product Height (unpacked) |
100 mm |
| Product Width (unpacked) |
148 mm |
| Product Depth (unpacked) |
71 mm |
| Product Weight (unpacked) |
660 g |
