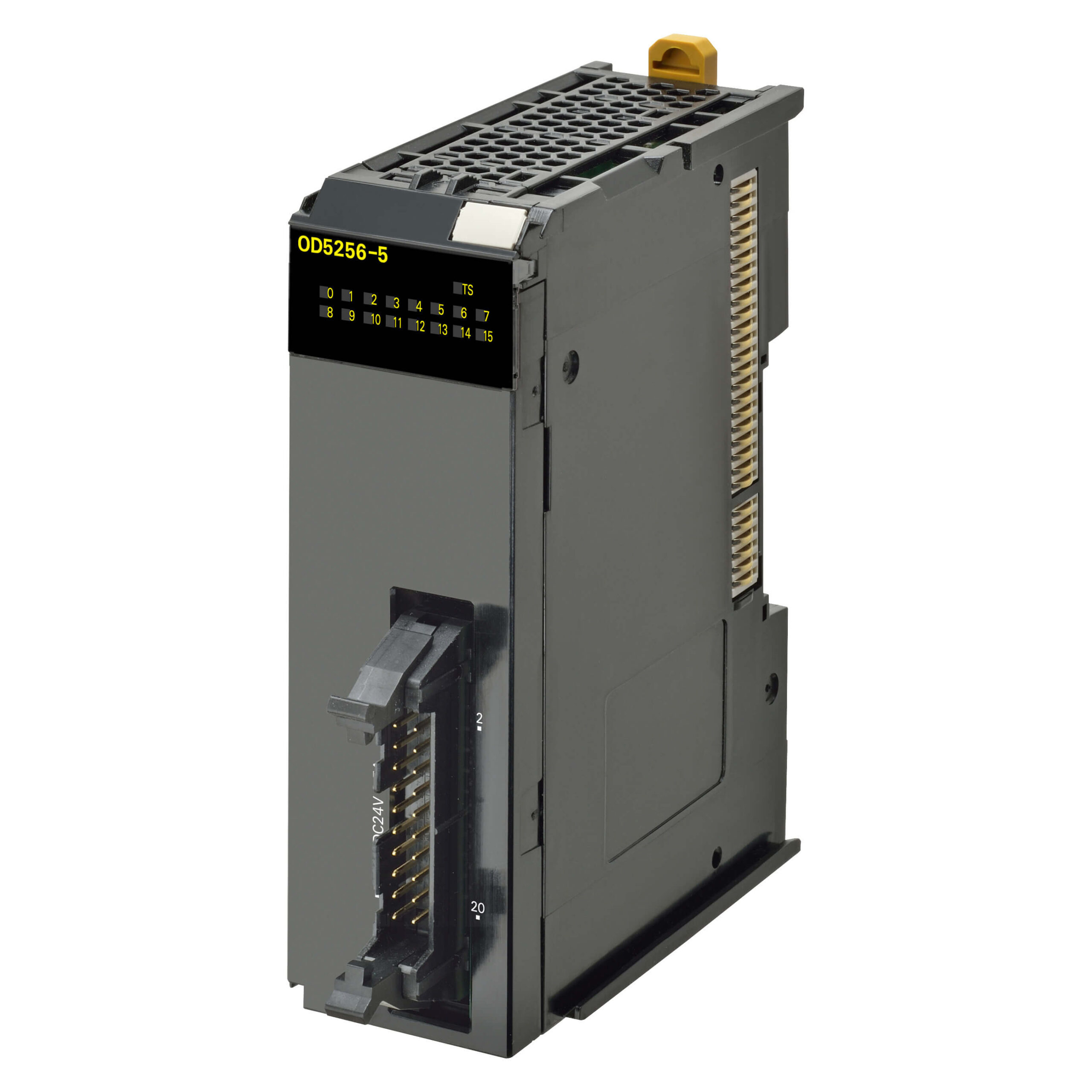

Omron NX-OD5256-5
16 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, MIL20 connector (not included), 30 mm wide
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
16 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, MIL20 connector (not included), 30 mm wide
Specification
| I/O system |
NX I/O Bus |
|---|---|
| Type of module |
Digital I/O |
| Number of digital inputs |
0 |
| Digital input type |
None |
| OFF/ON delay |
0.5-1.0 ms |
| Number of digital outputs |
16 |
| Digital output type |
PNP |
| Permitted voltage at output |
20.4-28.8 V |
| Output current |
0.5 A |
| Short-circuit protected outputs |
Yes |
| Connection method |
1-wire |
| Signal processing |
Free running, Standard speed, Synchronous |
| IO-Link master |
No |
| I/O connection type |
MIL (plug not included) |
| Number of I/O connectors |
1 |
| Detachable I/O connector |
Yes |
| Suitable for safety functions |
No |
| SIL according to IEC 61508 |
None |
| Communication port(s) |
None |
| Number of IOV (V+) terminals |
2 |
| Number of IOG (V-) terminals |
2 |
| Number of COM terminals |
0 |
| Degree of protection (IP) |
IP20 |
| Product Height (unpacked) |
100 mm |
| Product Width (unpacked) |
30 mm |
| Product Depth (unpacked) |
89.52 mm |
| Product Weight (unpacked) |
85 g |
