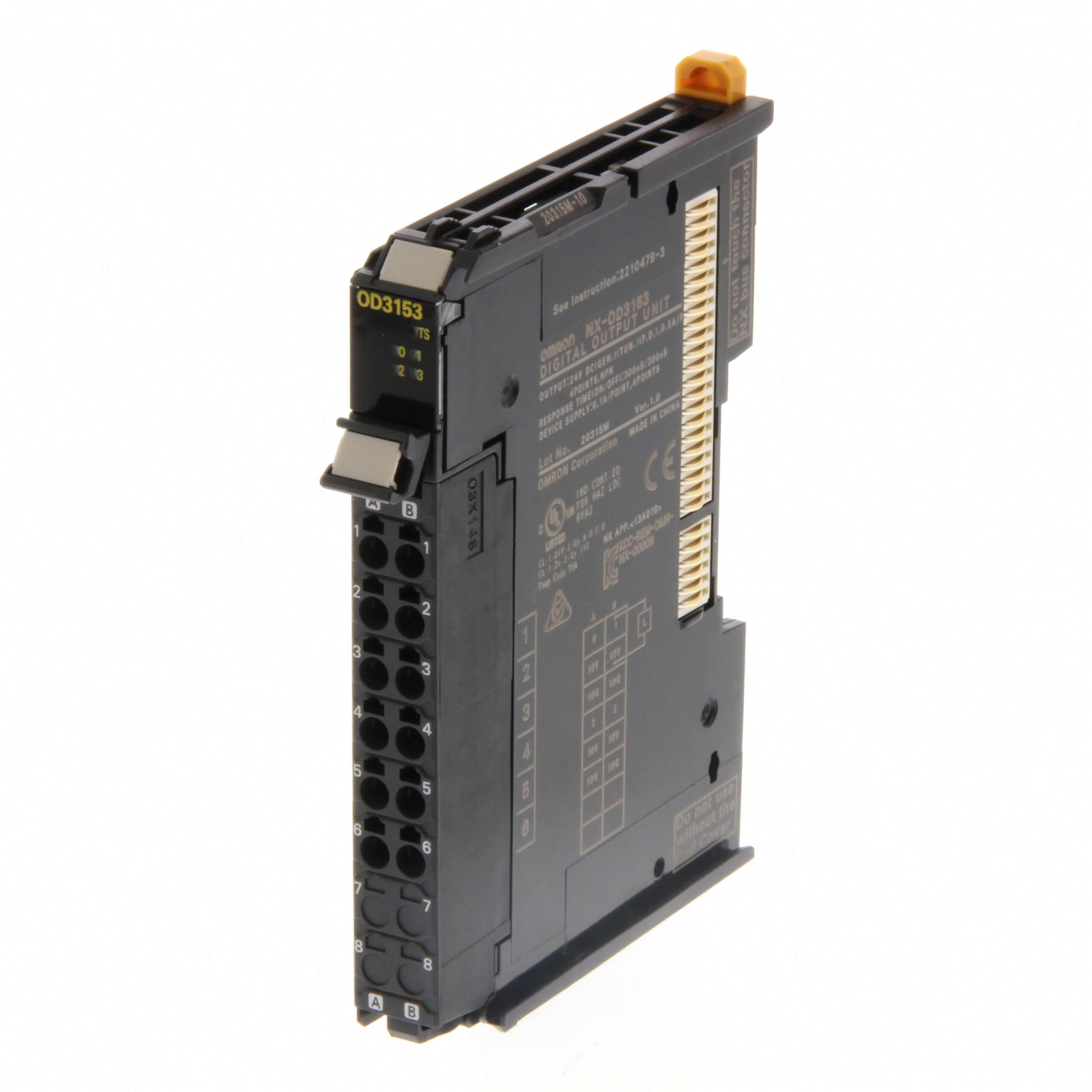

Omron NX-OD3153
4 Digital Outputs, High speed, NPN 24 VDC, 0.5 A/point, 2 A/NX Unit, screwless push-in connector, 12 mm wide
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
4 Digital Outputs, High speed, NPN 24 VDC, 0.5 A/point, 2 A/NX Unit, screwless push-in connector, 12 mm wide
Specification
| I/O system | NX I/O Bus |
|---|---|
| Type of module | Digital I/O |
| Number of digital inputs | |
| Digital input type | None |
| OFF/ON delay | 0-0.3 ms |
| Number of digital outputs | 4 |
| Digital output type | NPN |
| Permitted voltage at output | 15.0-28.8 V |
| Output current | 0.5 A |
| Short-circuit protected outputs | No |
| Connection method | 2-wire, 3-wire |
| Signal processing | Free running, High speed, Synchronous |
| IO-Link master | No |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | Yes |
| Suitable for safety functions | No |
| SIL according to IEC 61508 | None |
| Communication port(s) | None |
| Number of IOV (V+) terminals | 4 |
| Number of IOG (V-) terminals | 4 |
| Number of COM terminals | |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 104.5 mm |
| Product Width (unpacked) | 12 mm |
| Product Depth (unpacked) | 80.1 mm |
| Product Weight (unpacked) | 70 g |
