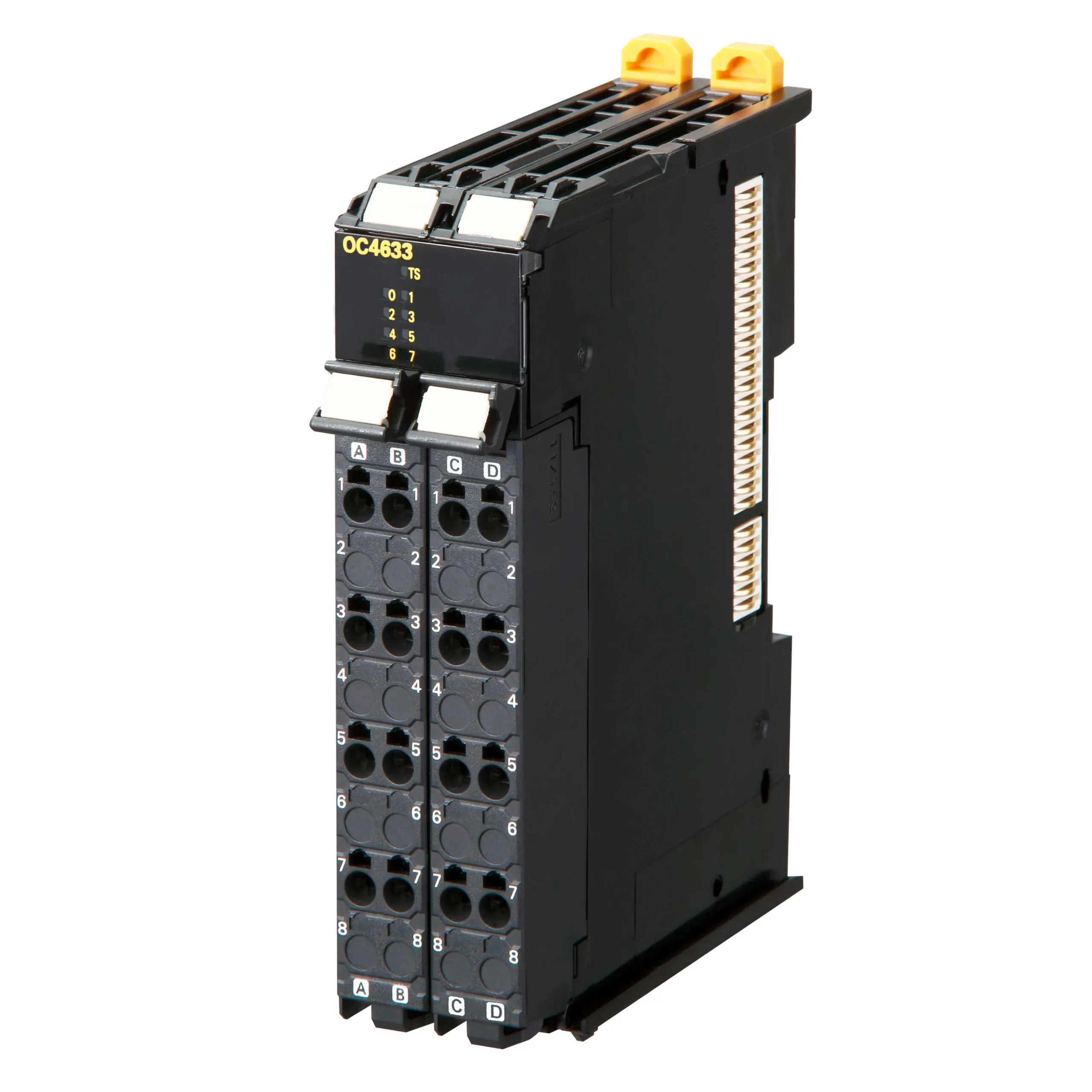

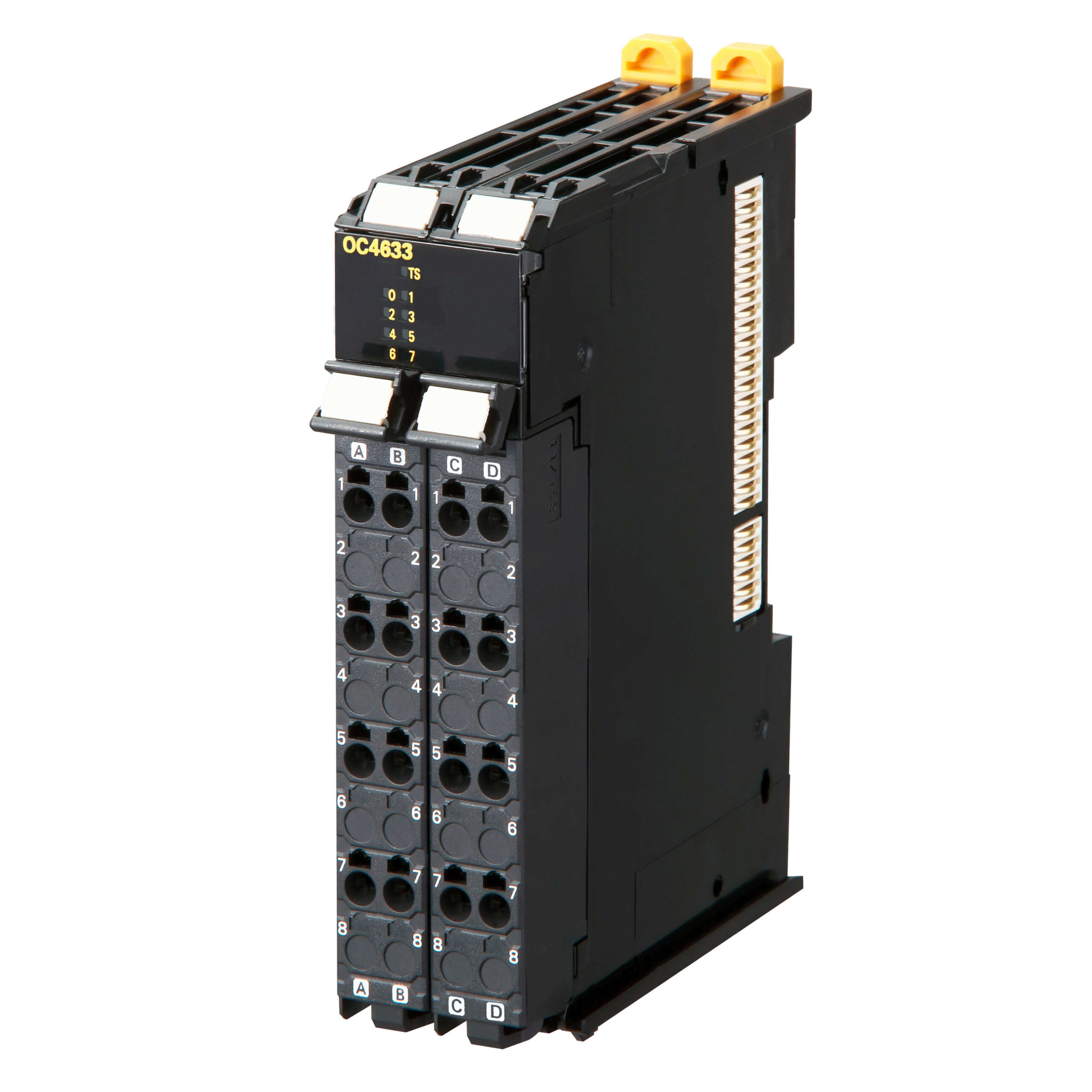

Omron NX-OC4633
8 Digital Outputs, normally-open relays, 2 A, 250 VAC, screwless push-in connector, 24 mm wide
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
8 Digital Outputs, normally-open relays, 2 A, 250 VAC, screwless push-in connector, 24 mm wide
Specification
| I/O system | NX I/O Bus |
|---|---|
| Type of module | Digital I/O |
| Number of digital inputs | |
| Digital input type | None |
| OFF/ON delay | 15-15 ms |
| Number of digital outputs | 8 |
| Digital output type | Relay NO |
| Permitted voltage at output | 24-250 V |
| Output current | 2 A |
| Short-circuit protected outputs | No |
| Connection method | 2-wire |
| Signal processing | Free running, Standard speed |
| IO-Link master | No |
| I/O connection type | Push-in |
| Number of I/O connectors | 2 |
| Detachable I/O connector | Yes |
| Suitable for safety functions | No |
| SIL according to IEC 61508 | None |
| Communication port(s) | None |
| Number of IOV (V+) terminals | |
| Number of IOG (V-) terminals | |
| Number of COM terminals | |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 24 mm |
| Product Depth (unpacked) | 80 mm |
| Product Weight (unpacked) | 167 g |
