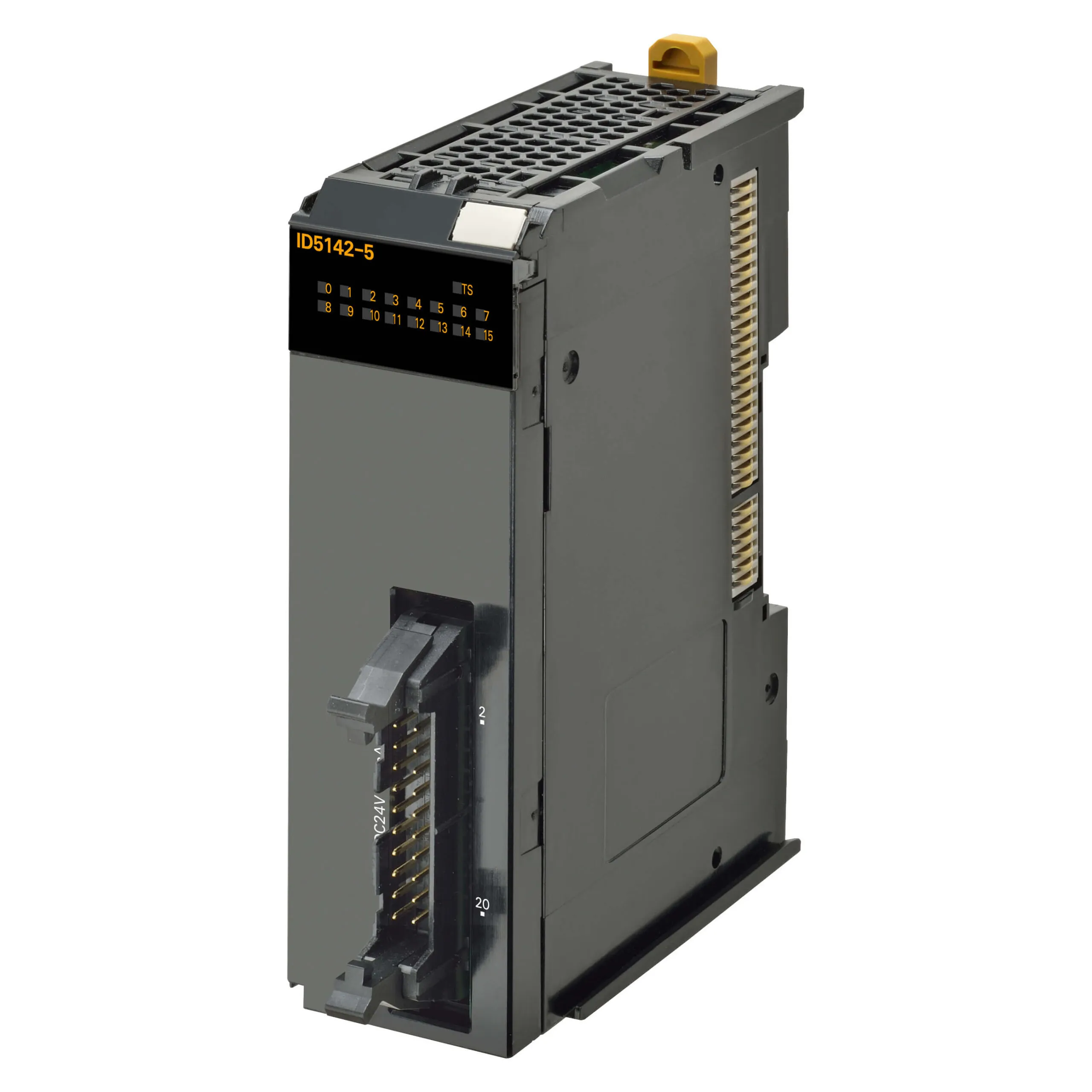

Omron NX-ID5142-5
16 Digital Inputs, Standard speed, NPN/PNP 24 VDC, MIL20 connector (not included), 30 mm wide
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
16 Digital Inputs, Standard speed, NPN/PNP 24 VDC, MIL20 connector (not included), 30 mm wide
Specification
| I/O system | NX I/O Bus |
|---|---|
| Type of module | Digital I/O |
| Number of digital inputs | 16 |
| Digital input type | PNP/NPN |
| Permitted voltage at input | 15-28.8 V |
| OFF/ON delay | 0.02-0.4 ms |
| Number of digital outputs | |
| Digital output type | None |
| Output current | 0 A |
| Short-circuit protected outputs | No |
| Connection method | 1-wire |
| Signal processing | Free running, Standard speed, Synchronous |
| IO-Link master | No |
| I/O connection type | MIL (plug not included) |
| Number of I/O connectors | 1 |
| Detachable I/O connector | Yes |
| Suitable for safety functions | No |
| SIL according to IEC 61508 | None |
| Communication port(s) | None |
| Number of IOV (V+) terminals | |
| Number of IOG (V-) terminals | |
| Number of COM terminals | 2 |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 30 mm |
| Product Depth (unpacked) | 89.52 mm |
| Product Weight (unpacked) | 85 g |
