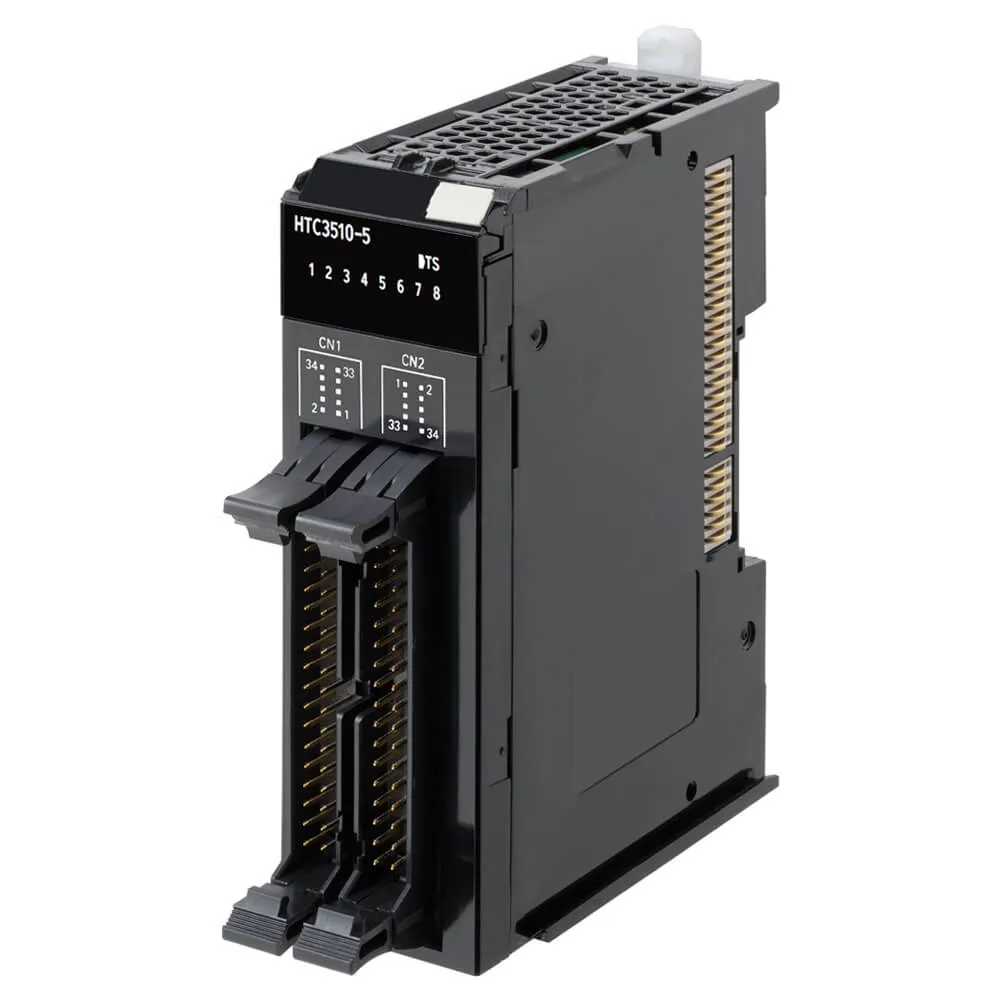

Omron NX-HTC3510-5
4 loops, Thermocouple/Pt100/Analog input, 4 Voltage outputs (for driving SSR), 4 Linear current outputs, Heating and Cooling Control, Heater burnout alarm, MIL connector
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
4 loops, Thermocouple/Pt100/Analog input, 4 Voltage outputs (for driving SSR), 4 Linear current outputs, Heating and Cooling Control, Heater burnout alarm, MIL connector
Specification
| I/O system |
NX I/O Bus |
|---|---|
| Type of module |
Temperature control |
| Number of digital inputs |
0 |
| Digital input type |
None |
| Number of digital outputs |
4 |
| Digital output type |
PNP, PWM |
| Number of analog inputs |
4 |
| Temperature input type |
B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U |
| Number of control loops |
4 |
| Linear analog input type |
0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Input circuit type |
Isolated |
| Number of analog outputs |
4 |
| Linear analog output type |
0 to 20 mA, 4 to 20 mA |
| Conversion time |
50 ms/unit |
| Signal processing |
Free running |
| Control function |
Heat and cool |
| Heater burnout detection |
Yes |
| IO-Link master |
No |
| I/O connection type |
MIL (plug not included) |
| Number of I/O connectors |
2 |
| Detachable I/O connector |
Yes |
| Suitable for safety functions |
No |
| SIL according to IEC 61508 |
None |
| Degree of protection (IP) |
IP20 |
| Product Height (unpacked) |
106 mm |
| Product Width (unpacked) |
32.1 mm |
| Product Depth (unpacked) |
89.8 mm |
| Product Weight (unpacked) |
125 g |
