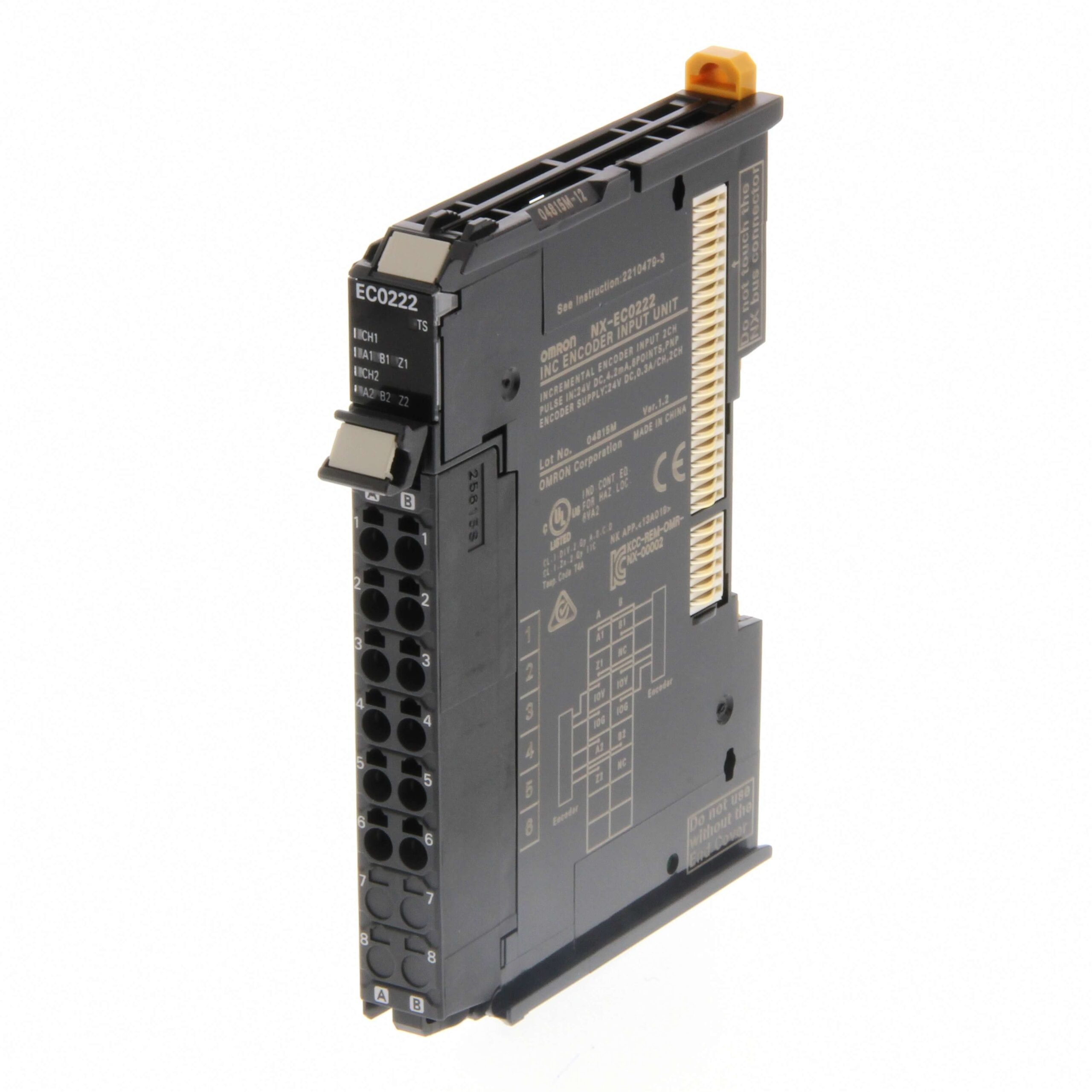

Omron NX-EC0222
2 x Incremental Encoder PNP Inputs, Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz), Phase Z: 125 kHz, screwless push-in connector, 12 mm wide
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
2 x Incremental Encoder PNP Inputs, Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz), Phase Z: 125 kHz, screwless push-in connector, 12 mm wide
Specification
| I/O system |
NX I/O Bus |
|---|---|
| Type of module |
Encoder input |
| Digital input type |
Incremental encoder, PNP |
| Digital output type |
None |
| Signal processing |
Free running, Synchronous, Task period prioritized |
| Number of encoder input channels |
2 |
| Max. encoder input frequency |
500 kHz |
| Number of pulse output channels |
0 |
| Max. pulse output frequency |
0 kHz |
| IO-Link master |
No |
| I/O connection type |
Push-in |
| Number of I/O connectors |
1 |
| Detachable I/O connector |
Yes |
| Suitable for safety functions |
No |
| SIL according to IEC 61508 |
None |
| Number of IOV (V+) terminals |
2 |
| Number of IOG (V-) terminals |
2 |
| Degree of protection (IP) |
IP20 |
| Product Height (unpacked) |
104.5 mm |
| Product Width (unpacked) |
12 mm |
| Product Depth (unpacked) |
80.1 mm |
| Product Weight (unpacked) |
100 g |
