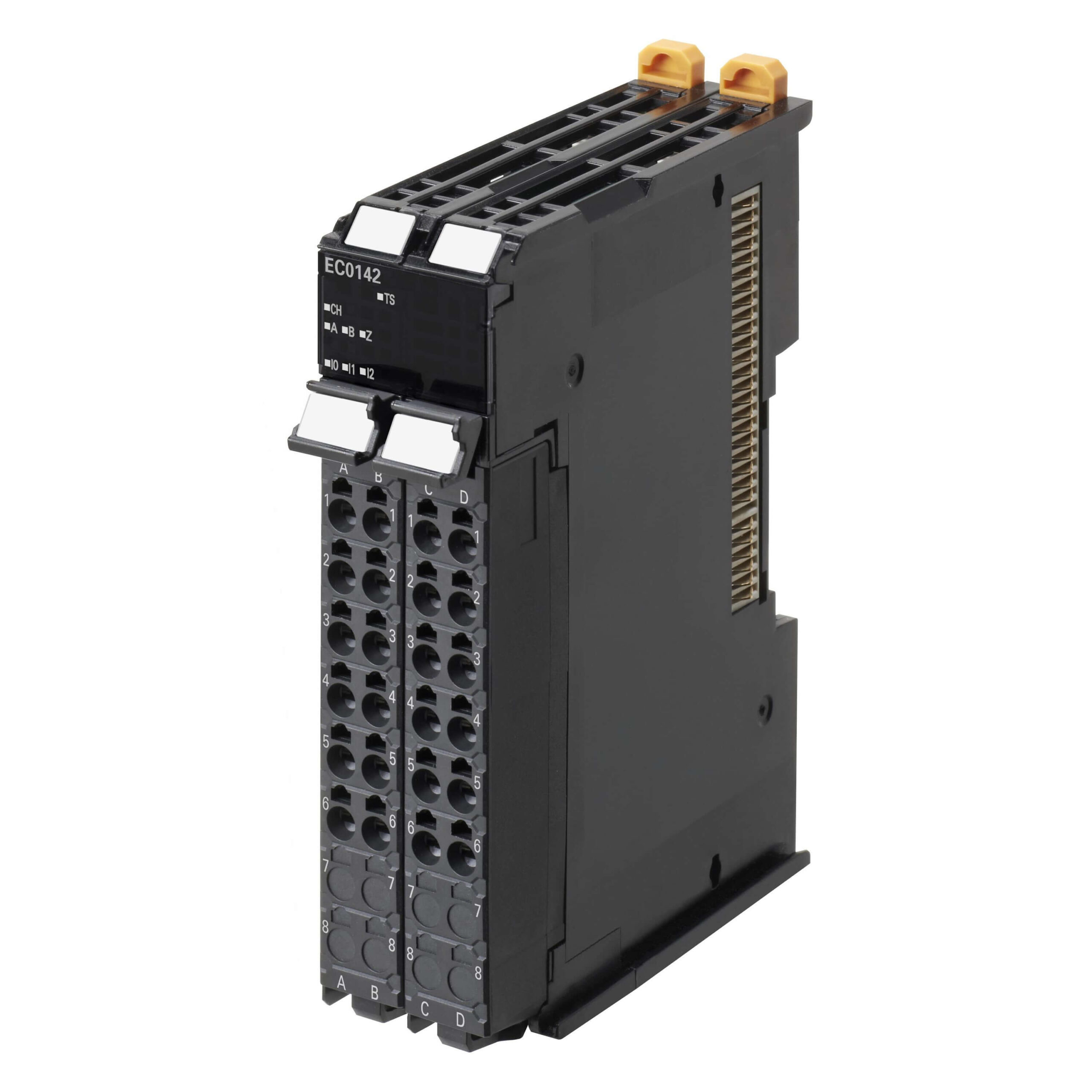

Omron NX-EC0142
1 x Incremental Encoder Line driver Input, phases A and B: single-phase 4 MHz (phase difference pulse Input x4: 1 MHz), Phase Z: 1 MHz, PNP, screwless push-in connectors, 24 mm wide
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
1 x Incremental Encoder Line driver Input, phases A and B: single-phase 4 MHz (phase difference pulse Input x4: 1 MHz), Phase Z: 1 MHz, PNP, screwless push-in connectors, 24 mm wide
Specification
| I/O system | NX I/O Bus |
|---|---|
| Type of module | Encoder input |
| Digital input type | Incremental encoder, Line driver (RS-422), PNP |
| Digital output type | None |
| Signal processing | Free running, Synchronous, Task period prioritized |
| Number of encoder input channels | 1 |
| Max. encoder input frequency | 4000 kHz |
| Number of pulse output channels | |
| Max. pulse output frequency | 0 kHz |
| IO-Link master | No |
| I/O connection type | Push-in |
| Number of I/O connectors | 2 |
| Detachable I/O connector | Yes |
| Suitable for safety functions | No |
| SIL according to IEC 61508 | None |
| Number of IOV (V+) terminals | 3 |
| Number of IOG (V-) terminals | 3 |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 24 mm |
| Product Depth (unpacked) | 80 mm |
| Product Weight (unpacked) | 147 g |
