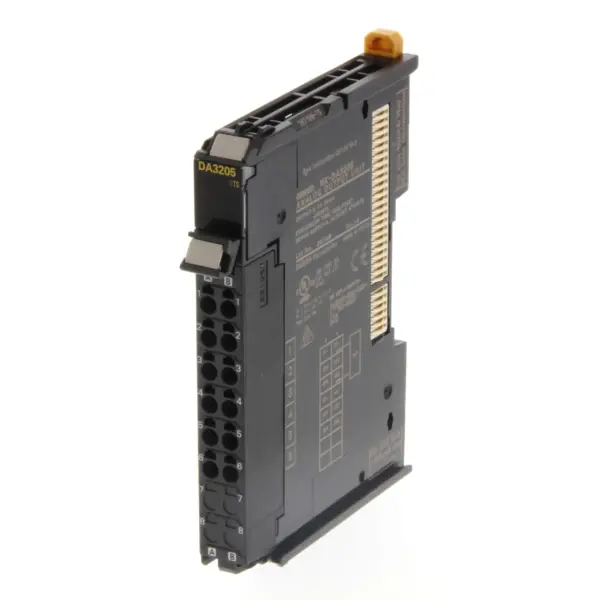

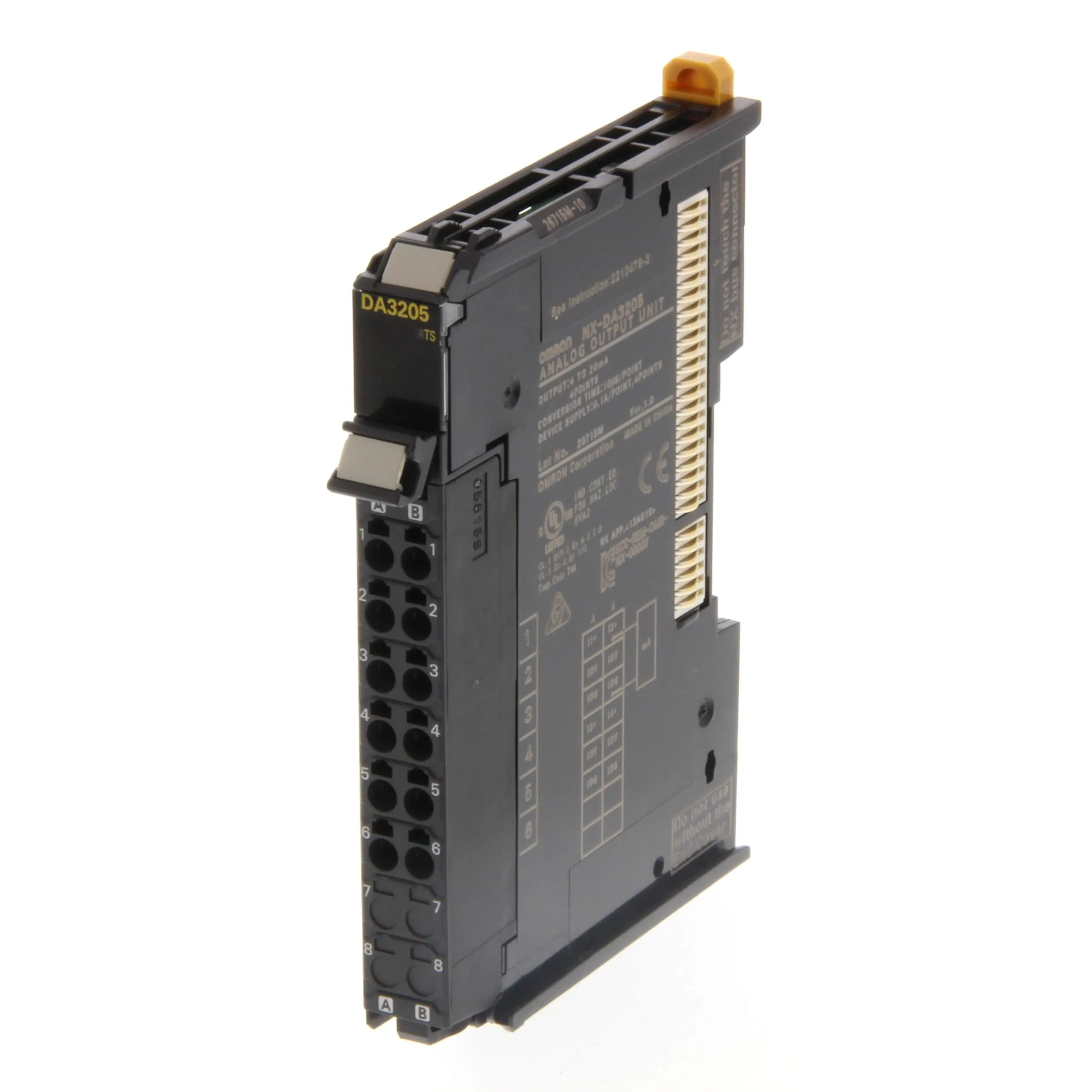

Omron NX-DA3205
4 Analog Outputs, 4 – 20 mA, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
4 Analog Outputs, 4 – 20 mA, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
Specification
| I/O system |
NX I/O Bus |
|---|---|
| Type of module |
Analog I/O |
| Number of analog inputs |
0 |
| Temperature input type |
None |
| Linear analog input type |
None |
| Resolution of the analog inputs |
0 Bit |
| Input circuit type |
None |
| Number of analog outputs |
4 |
| Linear analog output type |
4 to 20 mA |
| Resolution of the analog outputs |
15 Bit |
| Conversion time |
0.04 ms/unit |
| Signal processing |
Synchronous |
| IO-Link master |
No |
| I/O connection type |
Push-in |
| Number of I/O connectors |
1 |
| Detachable I/O connector |
Yes |
| Suitable for safety functions |
No |
| SIL according to IEC 61508 |
None |
| Degree of protection (IP) |
IP20 |
| Product Height (unpacked) |
104.5 mm |
| Product Width (unpacked) |
12 mm |
| Product Depth (unpacked) |
80.1 mm |
| Product Weight (unpacked) |
70 g |
