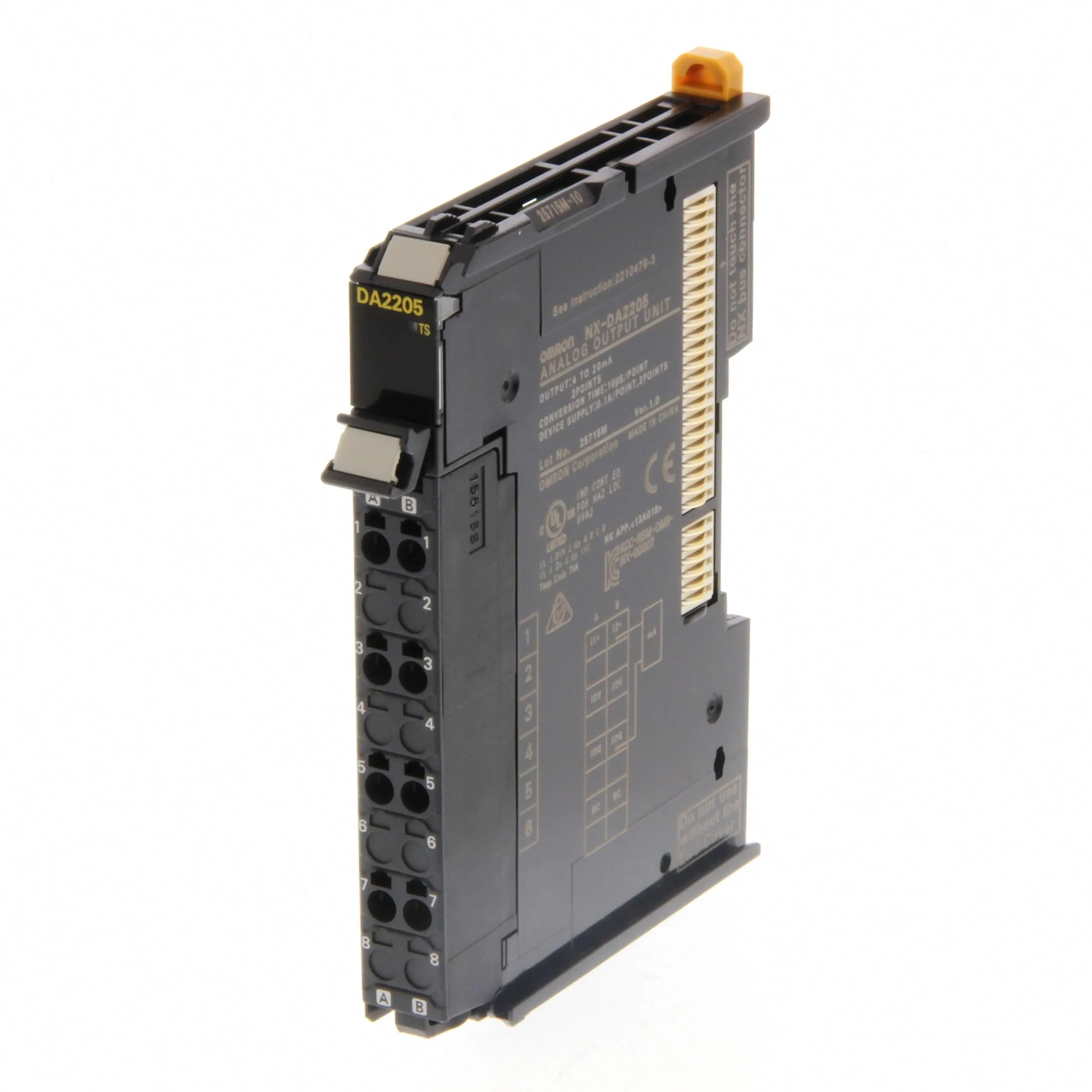

Omron NX-DA2205
2 Analog Outputs, 4 – 20 mA, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
2 Analog Outputs, 4 – 20 mA, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
Specification
| I/O system | NX I/O Bus |
|---|---|
| Type of module | Analog I/O |
| Number of analog inputs | |
| Temperature input type | None |
| Linear analog input type | None |
| Resolution of the analog inputs | 0 Bit |
| Input circuit type | None |
| Number of analog outputs | 2 |
| Linear analog output type | 4 to 20 mA |
| Resolution of the analog outputs | 15 Bit |
| Conversion time | 0.02 ms/unit |
| Signal processing | Synchronous |
| IO-Link master | No |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | Yes |
| Suitable for safety functions | No |
| SIL according to IEC 61508 | None |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 104.5 mm |
| Product Width (unpacked) | 12 mm |
| Product Depth (unpacked) | 80.1 mm |
| Product Weight (unpacked) | 70 g |
