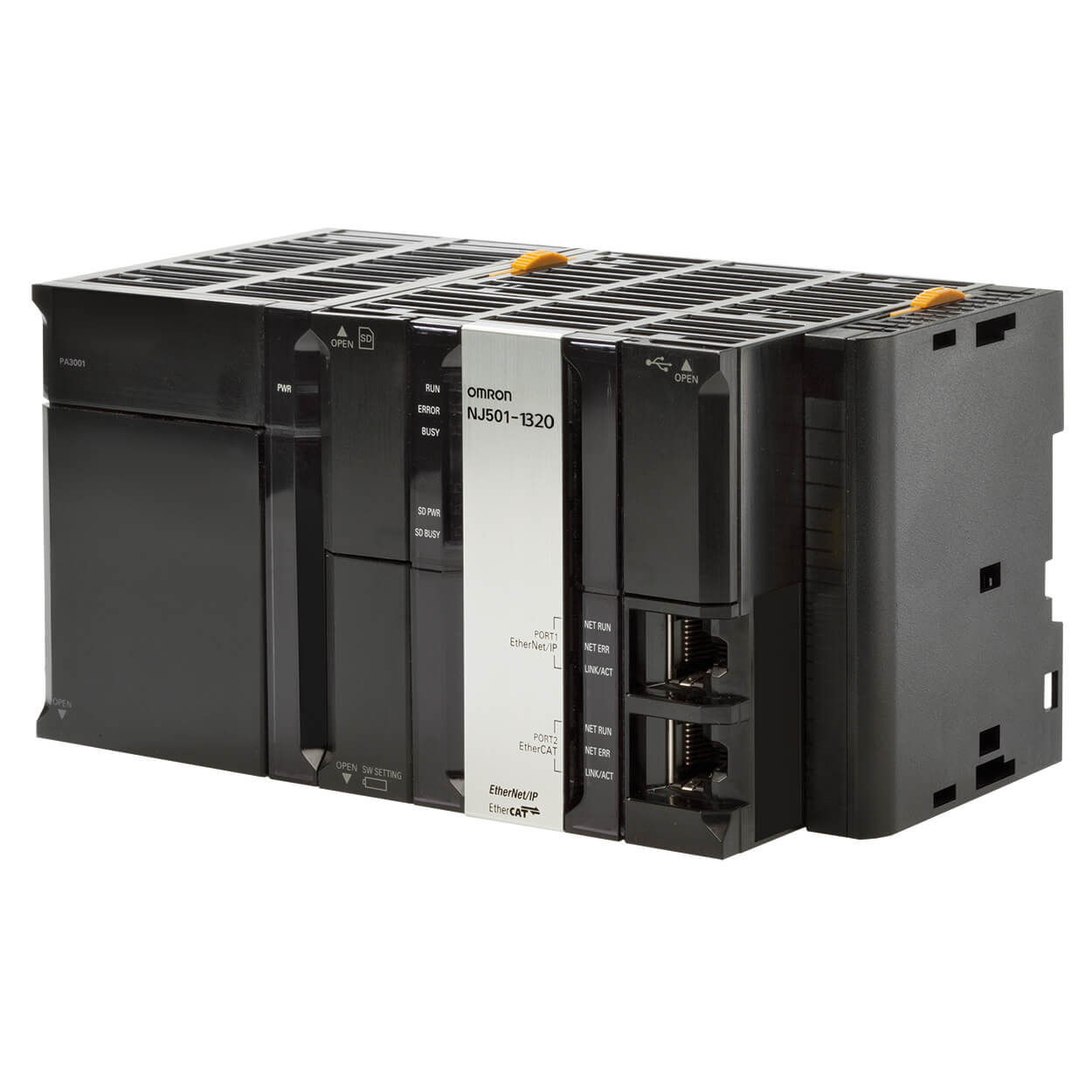

Omron NJ501-1320
Sysmac NJ5 CPU with Database Connectivity, 20MB memory, built-in EtherCAT (16 servo axes, in total 192 EtherCAT nodes) and EtherNet/IP
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Sysmac NJ5 CPU with Database Connectivity, 20MB memory, built-in EtherCAT (16 servo axes, in total 192 EtherCAT nodes) and EtherNet/IP
Specification
| Controller functionality |
DB connection, Motion control, Sequence control |
|---|---|
| Max. number of synchronous axes |
16 |
| Max. number of axes (incl. virtual) |
16 |
| Max. number of robots |
0 |
| Primary task cycle time |
0.5 ms |
| Program memory |
20 MB |
| Variables memory |
6 MB |
| Communication port(s) |
EtherCAT Master, EtherNet/IP, USB |
| Communication option(s) |
CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes |
192 |
| I/O system |
CJ I/O Bus |
| Max. number of expansion units |
40 |
| Product Height (unpacked) |
96 mm |
| Product Width (unpacked) |
90 mm |
| Product Depth (unpacked) |
150 mm |
| Product Weight (unpacked) |
550 g |
