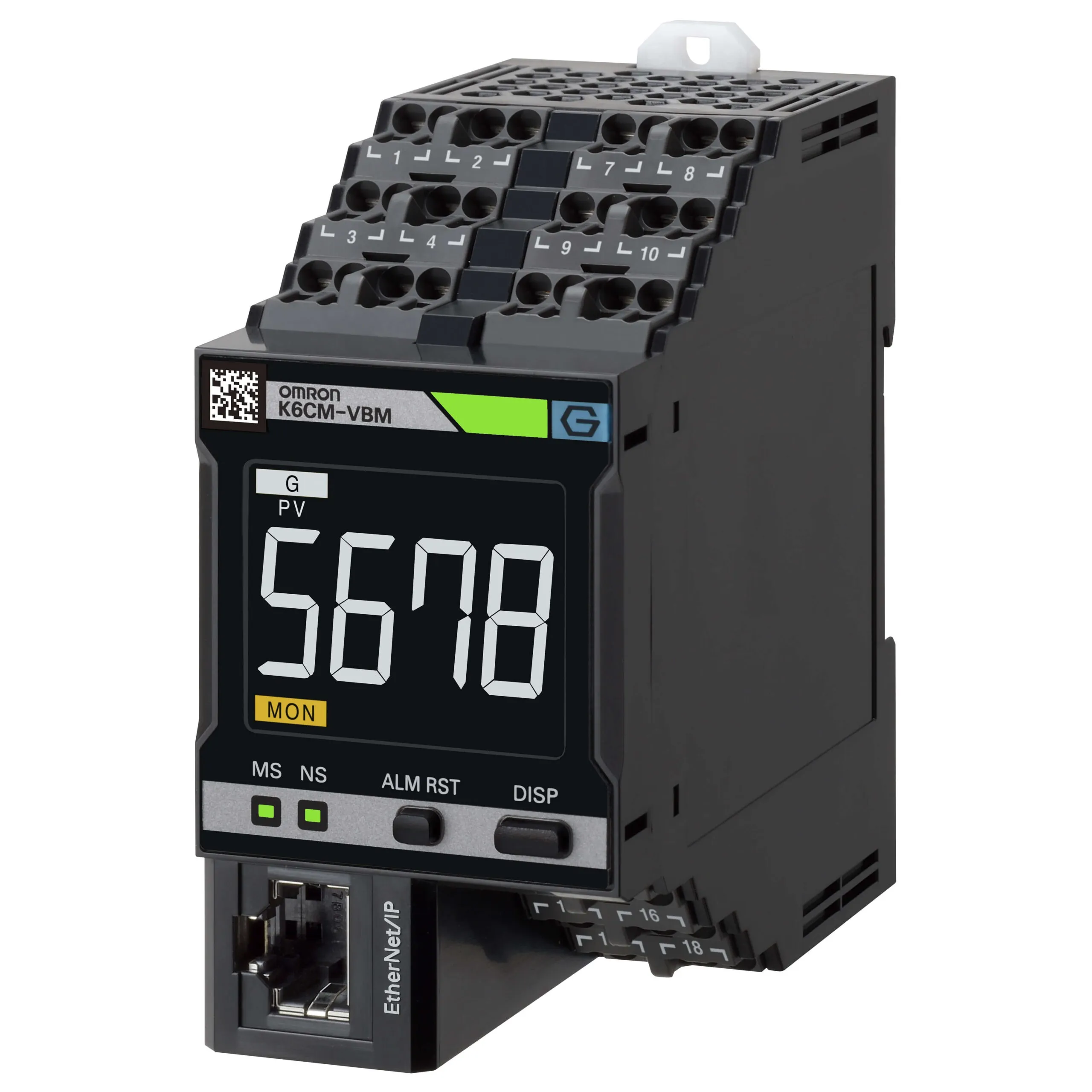

Omron K6CM-VBMA-EIP
Motor Condition Monitoring, AC, 3-phase, Induction motor, Vibration & temperature model, 100 to 240 VAC, Transistor control output, Push-in Plus, LCD display, Ethernet IP
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Motor Condition Monitoring, AC, 3-phase, Induction motor, Vibration & temperature model, 100 to 240 VAC, Transistor control output, Push-in Plus, LCD display, Ethernet IP
Specification
| Supply voltage AC |
100-240 V |
|---|---|
| Applicable motor type |
Three phase induction motor (rated voltage 600 V max.) |
| Application |
Bearing damage, Load misalignment, Load unbalance, Obstacles and loose belt, Resonance, Rotor/stator issues |
| Analysis method |
Moving average, Vibration acceleration (RMS), Vibration velocity (RMS) |
| Frequency range vibration |
0.01-10 kHz |
| Number of digital outputs |
3 |
| Output type |
NPN, Transistor |
| Product Width (unpacked) |
45 mm |
| Product Height (unpacked) |
90 mm |
| Product Depth (unpacked) |
91.9 mm |
| Communication port(s) |
EtherNet/IP, MODBUS/TCP |
| Mounting method |
DIN rail |
| Mounting position |
Amplifier: panel, Controller: panel, Sensor: motor |
| Setup method |
Free software |
| User interface |
Condition monitoring software tool, Front LED, LCD screen |
