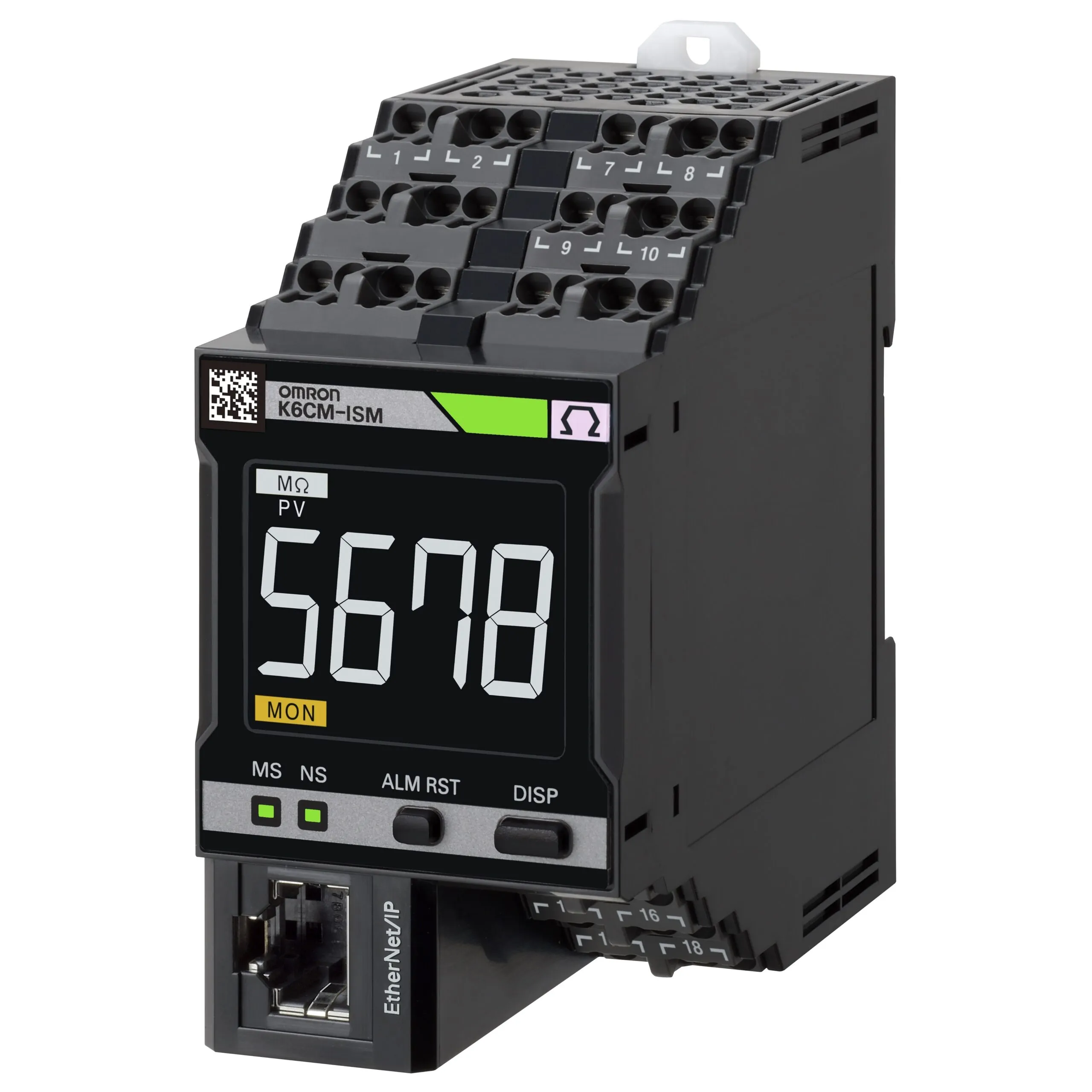

Omron K6CM-ISMD-EIP
Motor Condition Monitoring, AC, 3-phase, Induction motor, Insulation resistance model, 24 VAC/VDC, Transistor control output, Push-in Plus, LCD display, Ethernet IP
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Motor Condition Monitoring, AC, 3-phase, Induction motor, Insulation resistance model, 24 VAC/VDC, Transistor control output, Push-in Plus, LCD display, Ethernet IP
Specification
| Supply voltage AC |
20.4-26.4 V |
|---|---|
| Supply voltage DC |
20.4-26.4 V |
| Applicable motor type |
Three-phase induction motor (rated voltage 480 V max.), 0.75 – 7.5kW |
| Application |
Detection of poor insulation |
| Analysis method |
Insulation resistance |
| Resistance range |
0-9.99 Mohm |
| Number of digital outputs |
3 |
| Output type |
NPN, Transistor |
| Product Depth (unpacked) |
91.9 mm |
| Product Width (unpacked) |
45 mm |
| Product Height (unpacked) |
90 mm |
| Communication port(s) |
EtherNet/IP |
| Mounting method |
DIN rail |
| Mounting position |
Controller: panel, ZCT: panel (through hole 52 mm diameter) |
| Setup method |
Free software |
| User interface |
Condition monitoring software tool, Front LED, LCD screen |
