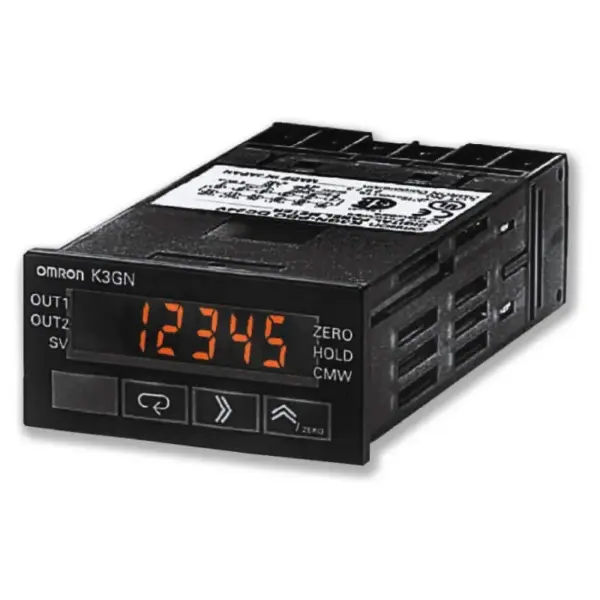

Omron K3GN-NDC-FLK 24VDC
Digital panel meter, DIN48x24mm, DC voltage/current + NPN input, 2x relay outputs, RS-485 port data transmission output, includes color display function, 24VDC
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Digital panel meter, DIN48x24mm, DC voltage/current + NPN input, 2x relay outputs, RS-485 port data transmission output, includes color display function, 24VDC
Specification
| Type | Frequency, Process, Rate |
|---|---|
| Input type | DC current, DC voltage, NPN |
| Input range | -10 to 10 V, -5 to 5 V, 0 to 20 mA, 0 to 30 Hz, 0 to 5 V, 0 to 5 kHz, 1 to 5 V, 4 to 20 mA |
| Size | 1/32 DIN (48 x 24 mm) |
| Number of digits | 5 |
| Output type | Relay |
| Contact description | 2 x SPST-NO |
| Supply voltage DC | 20.4-26.4 V |
| Accuracy | +/- 0.1% full scale |
| Sample rate | 250 ms |
| Communication port(s) | Serial RS-485 |
| Features | Colour change display |
| Product Width (unpacked) | 48 mm |
| Product Height (unpacked) | 24 mm |
| Product Depth (unpacked) | 80 mm |
