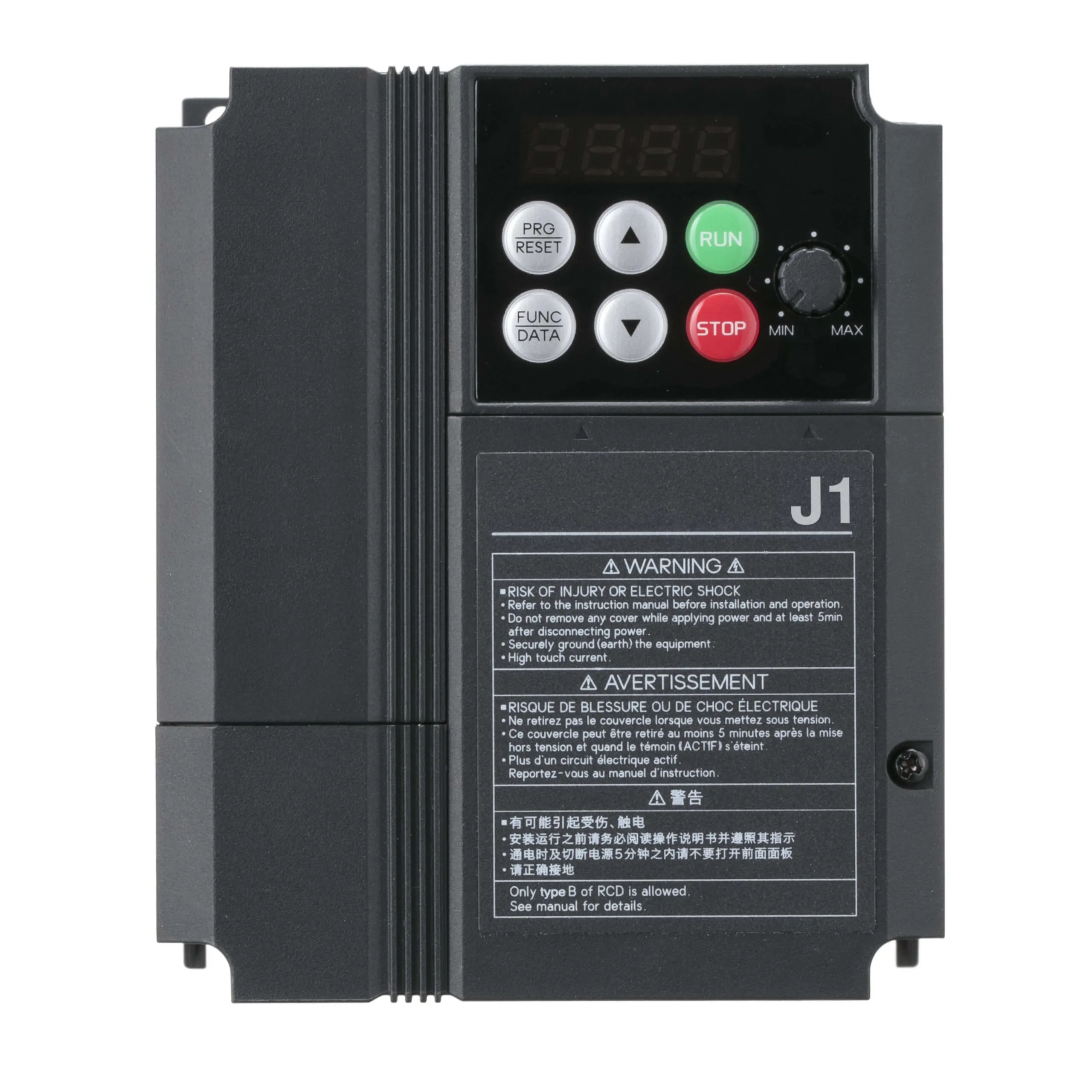

Omron J1-A4004-E
J1 AC Drive, 0.4 kW, 1.8 A, 400 VAC, 3~ input, max. output freq. 400 Hz
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
J1 AC Drive, 0.4 kW, 1.8 A, 400 VAC, 3~ input, max. output freq. 400 Hz
Specification
| Drive control method | V/f control, Vector control |
|---|---|
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque | 0.4 kW |
| Max. motor output at variable torque | 0.4 kW |
| Built in EMC filter | No |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor |
| Communication port(s) | MODBUS Slave, Serial RS-485 |
| Communication option(s) | USB |
| Product Height (unpacked) | 128 mm |
| Product Width (unpacked) | 108 mm |
| Product Depth (unpacked) | 139 mm |
| Product Weight (unpacked) | 800 g |
| Finless type | No |
