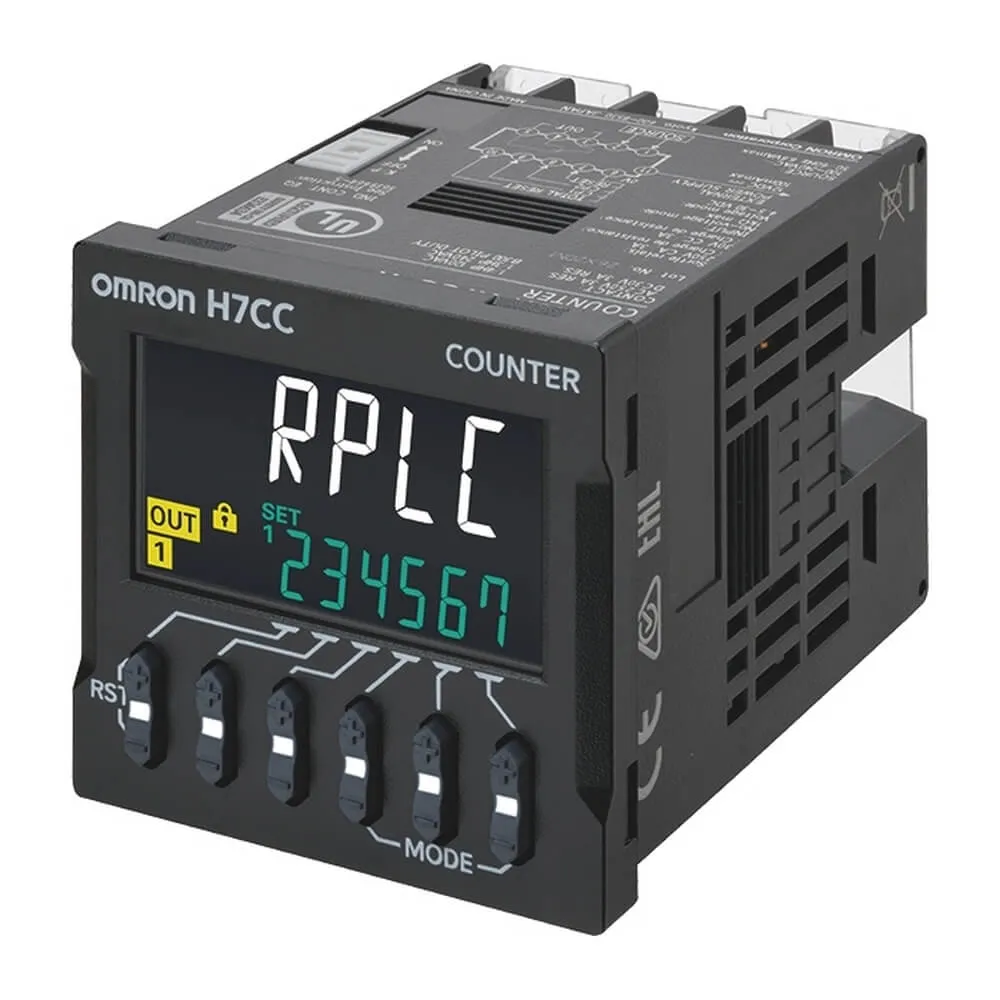

Omron H7CC-AWSD
Digital counter, screw terminals, 48×48 mm, IP66, 6 count digits, multifunction: 1&2-stage, total, batch, dual, twin counter, tachometer, DPST transistor output, 12-48 VDC / 24 VAC supply, 12 VDC aux….
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Digital counter, screw terminals, 48×48 mm, IP66, 6 count digits, multifunction: 1&2-stage, total, batch, dual, twin counter, tachometer, DPST transistor output, 12-48 VDC / 24 VAC supply, 12 VDC aux. supply
Specification
| Type | Pre-set counter |
|---|---|
| Size | 1/16 DIN (48 x 48 mm) |
| Counting functions | 1-stage counter, 1-stage counter with batch counter, 1-stage counter with total counter, 2-stage counter, Dual counter (addition/subtraction), Tachometer, Twin counter |
| Counting range | -99999 – 999999 |
| LCD backlight | With backlight |
| Number of digits | 6 |
| Body color | Black |
| Installation type | On-panel |
| Terminal type | Screw |
| Output type | Transistor |
| Relay output | |
| Transistor output | 1 |
| Inputs | DC voltage, No-voltage |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 12-48 V |
| Speed | 10000 Hz |
| Product Width (unpacked) | 48 mm |
| Product Height (unpacked) | 48 mm |
| Product Depth (unpacked) | 59 mm |
