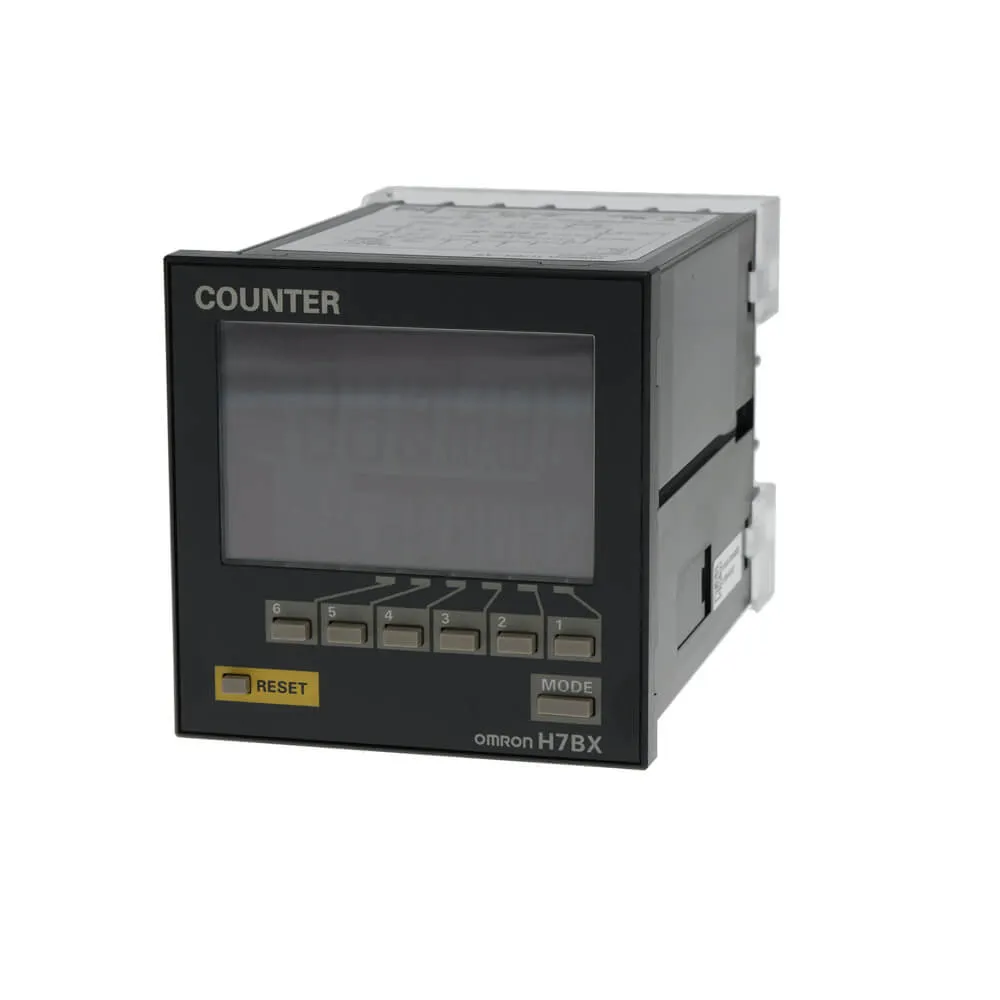

Omron H7BX-AW
Counter, DIN 72×72 mm, digital, multifunction, preset to 2-stage, SPST-NO, 3 A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Counter, DIN 72×72 mm, digital, multifunction, preset to 2-stage, SPST-NO, 3 A
Specification
| Type | Pre-set counter |
|---|---|
| Size | 72 x 72 mm |
| Counting functions | 1-stage counter, 1-stage counter with batch counter, 1-stage counter with total counter, 2-stage counter, Dual counter (addition/subtraction), Tachometer, Twin counter |
| Counting range | -99999 – 999999 |
| LCD backlight | With backlight |
| Number of digits | 6 |
| Body color | Black |
| Installation type | On-panel |
| Terminal type | Screw |
| Output type | Relay, Transistor |
| Relay output | 2 |
| Transistor output | 2 |
| Inputs | DC voltage, No-voltage |
| Supply voltage AC | 100-240 V |
| Speed | 5000 Hz |
| Product Width (unpacked) | 72 mm |
| Product Height (unpacked) | 72 mm |
| Product Depth (unpacked) | 100 mm |
