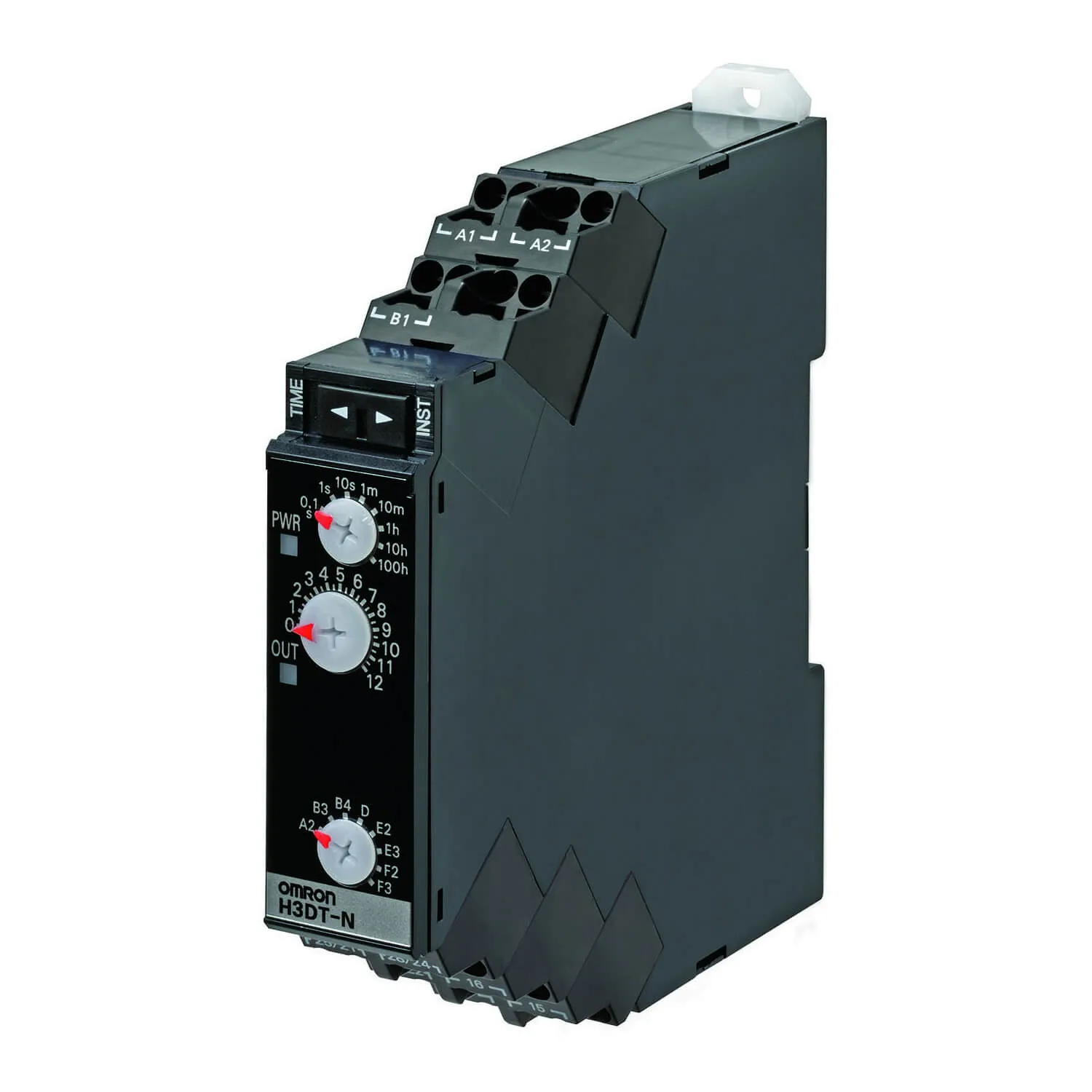

Omron H3DT-N2 24-240VAC/DC
Timer, DIN rail mounting, 17.5mm, Multifunction, 0.1s-1200h, 2 x SPDT, 5 A, 24-240 VAC/DC, Push-in terminal
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Timer, DIN rail mounting, 17.5mm, Multifunction, 0.1s-1200h, 2 x SPDT, 5 A, 24-240 VAC/DC, Push-in terminal
Specification
| Type | Analog |
|---|---|
| Installation type | DIN rail |
| Functions | Multi-functional |
| Size | 17.5 mm |
| Terminal type | Push-in |
| Operating mode | Cumulative (Interval), Cumulative (ON Delay), Flicker OFF Start (Power ON Start), Flicker ON Start (Power ON Start), Interval (Power ON Start), Interval (Signal OFF), OFF Delay (Signal), ON Delay (Power ON Start) |
| Output type | Relay |
| Contact description | DPDT |
| Time range | 0.1 s – 1200 h |
| Supply voltage AC | 24-240 V |
| Supply voltage DC | 24-240 V |
