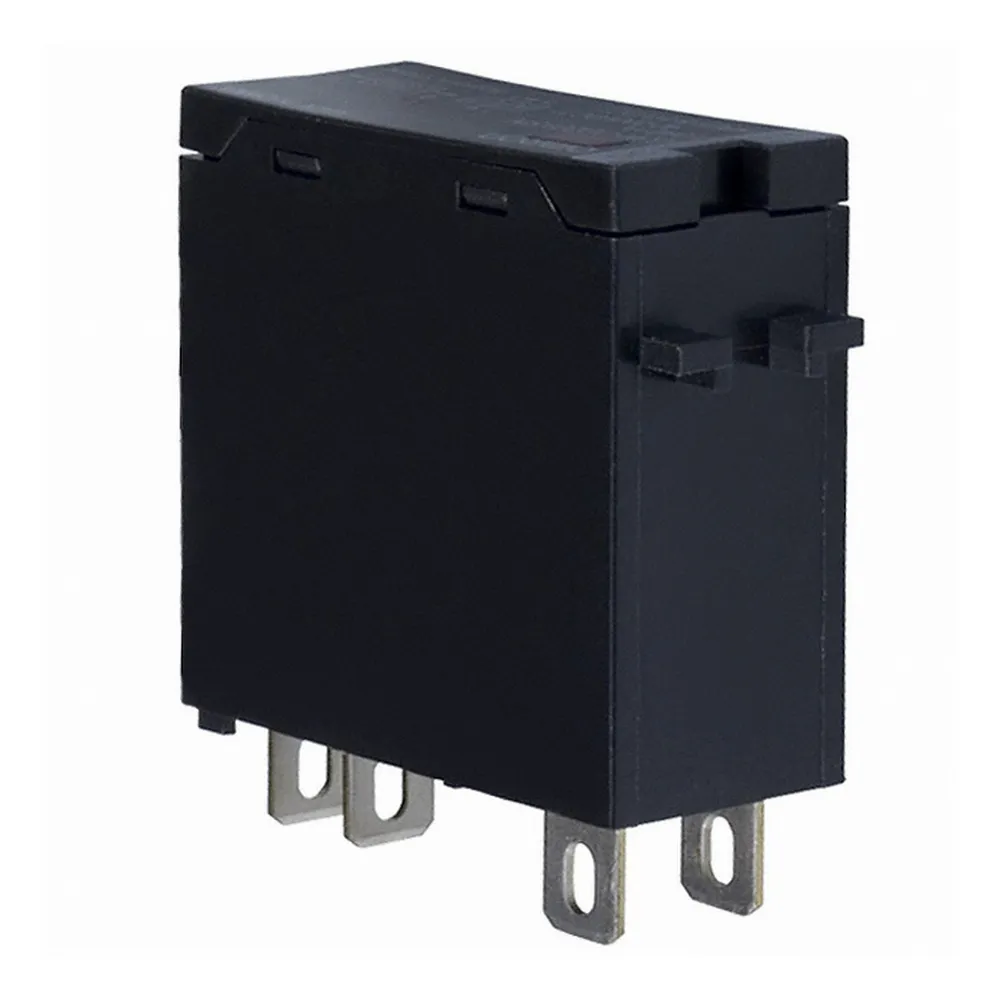

Omron G3R-IDZR1SN-UTU 12-24VDC
Solid state relay (input), plug-in, 0.1-100 mA (4-32 VDC), high-speed (1 kHz), 12-24 VDC
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Solid state relay (input), plug-in, 0.1-100 mA (4-32 VDC), high-speed (1 kHz), 12-24 VDC
Specification
| Application |
Interface |
|---|---|
| Number of phases |
1 |
| Mounting method |
With plug-in socket |
| Terminal type |
Plug-in |
| Complete with socket |
No |
| LED indicator |
Yes |
| Rated operational voltage, DC |
4-32 V |
| Operating voltage range, DC |
4-32 V |
| Rated operation current Ie at AC-1 |
0.1 A |
| Product Height (unpacked) |
29 mm |
| Product Width (unpacked) |
13 mm |
| Product Depth (unpacked) |
28 mm |
| Supply voltage DC |
4-6 V |
| Control current max. |
8 mA |
| Must operate voltage max. |
6.6 V |
| Must release voltage min. |
3.6 V |
| Maximum operating temperature |
80 °C |
| Minimum operating temperature |
-30 °C |
| Isolation |
Photocoupler |
| Switching at zero-crossing |
No |
