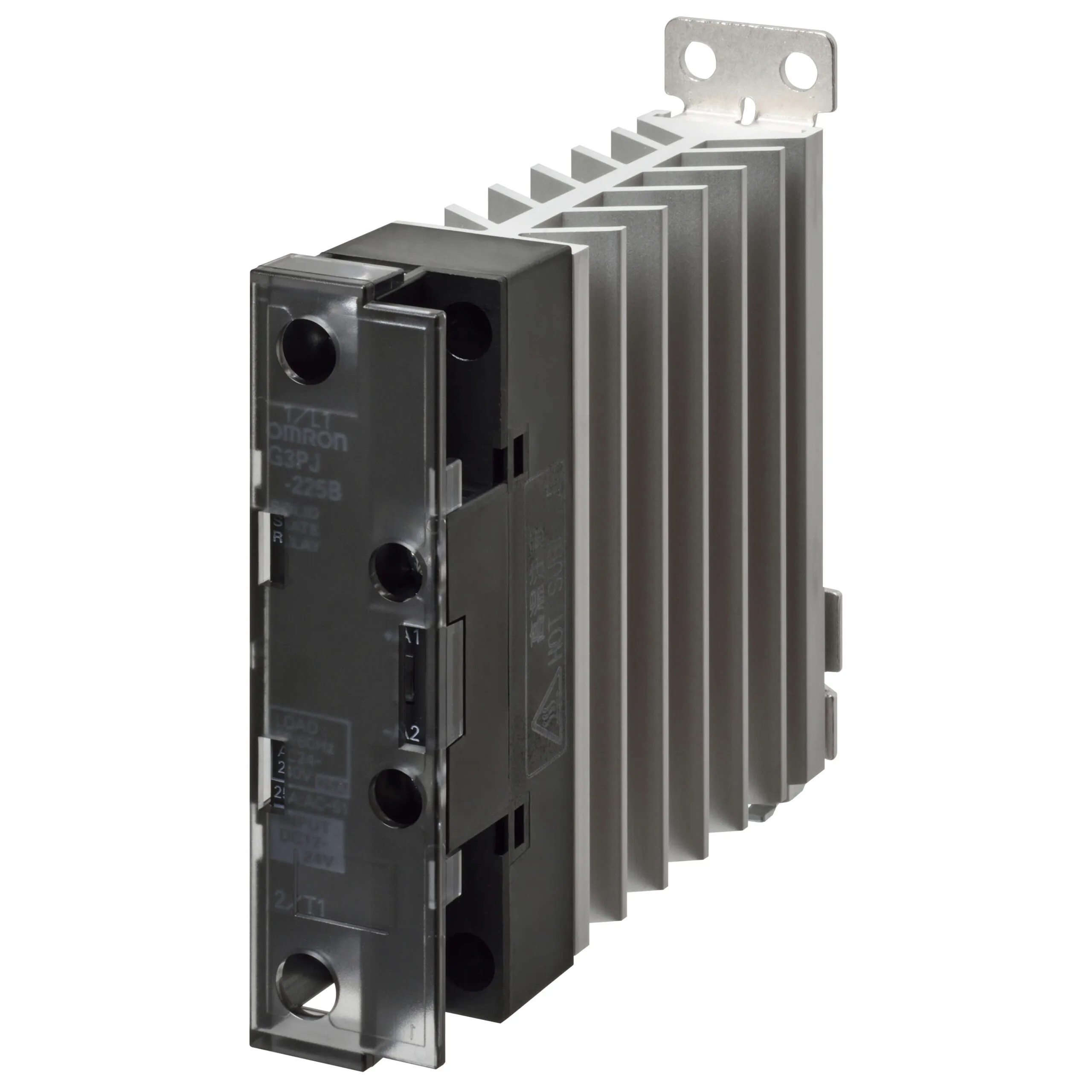

Omron G3PJ-225B DC12-24
Solid-state relay, 1 phase, 27A, 24-240V AC, with heat sink, DIN rail mount, input voltage 12-24V DC
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Solid-state relay, 1 phase, 27A, 24-240V AC, with heat sink, DIN rail mount, input voltage 12-24V DC
Specification
| Application |
ON/OFF control |
|---|---|
| Number of phases |
1 |
| Number of poles |
1 |
| Mounting method |
DIN rail/screw |
| Terminal type |
Screw |
| Complete with socket |
No |
| LED indicator |
Yes |
| Rated operational voltage, AC |
24-240 V |
| Operating voltage range, AC |
19-264 V |
| Rated operation current Ie at AC-1 |
27 A |
| Rated load current Close mounting |
25 A |
| Permissible I²t value |
1260 A²s |
| Product Height (unpacked) |
100 mm |
| Product Width (unpacked) |
22.5 mm |
| Product Depth (unpacked) |
100 mm |
| Supply voltage DC |
12-24 V |
| Control current max. |
7 mA |
| Must operate voltage max. |
9.6 V |
| Must release voltage min. |
1 V |
| Maximum operating temperature |
80 °C |
| Minimum operating temperature |
-30 °C |
| Isolation |
Phototriac |
| Switching at zero-crossing |
Yes |
| Communication port(s) |
None |
