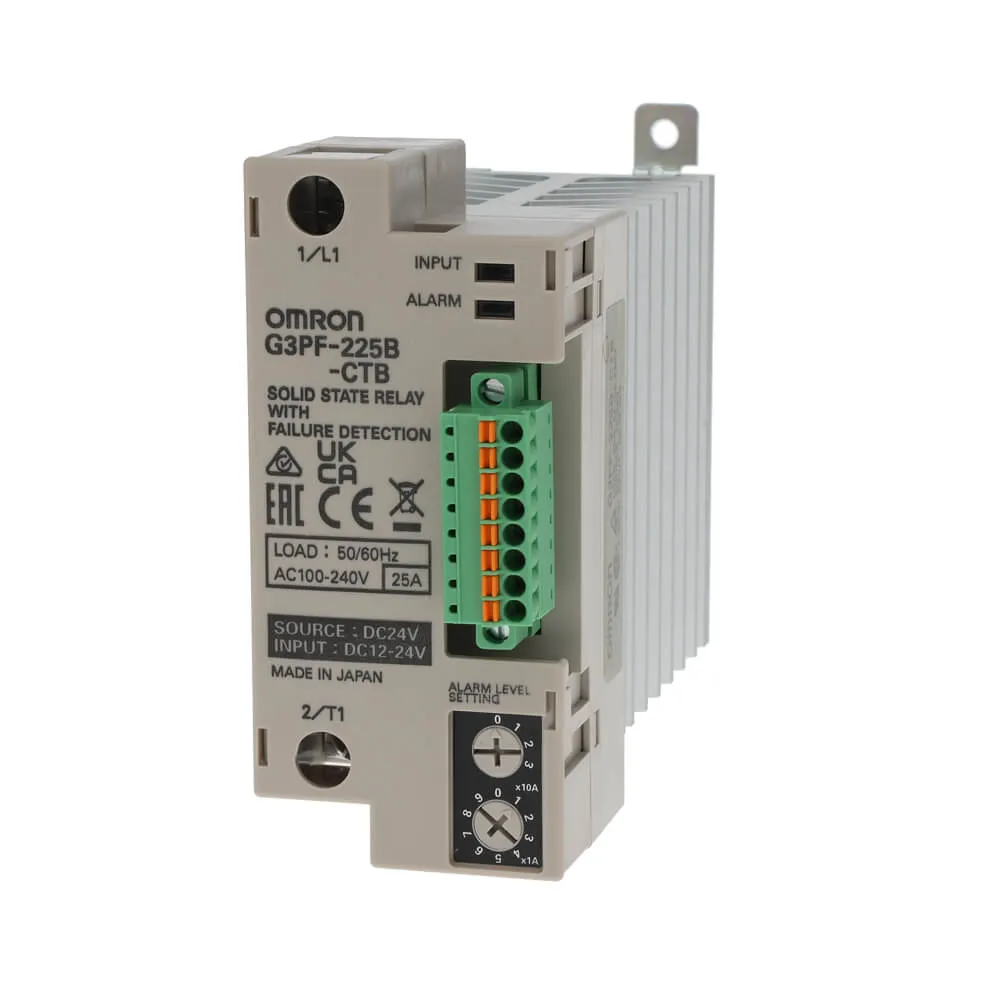

Omron G3PF-225B-CTB 24VDC
Solid-state relay 25A, 100-240VAC, with built in current transformer, jack-in cage clamp terminals, 2 alarms
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Solid-state relay 25A, 100-240VAC, with built in current transformer, jack-in cage clamp terminals, 2 alarms
Specification
| Application |
ON/OFF control |
|---|---|
| Mounting method |
DIN rail/screw |
| Terminal type |
Push-in, Screw |
| Complete with socket |
No |
| LED indicator |
Yes |
| Rated operational voltage, AC |
100-240 V |
| Operating voltage range, AC |
75-264 V |
| Control current max. |
10 mA |
| Must operate voltage max. |
9.6 V |
| Must release voltage min. |
1 V |
| Maximum operating temperature |
60 °C |
| Minimum operating temperature |
-20 °C |
| Isolation |
Phototriac |
| Functions |
HB/HS alarm for 1-phase heaters, HB/HS alarm for 3-phase heaters, Heater burnout detection |
| Number of phases |
1 |
| Rated operation current Ie at AC-1 |
25 A |
| Product Height (unpacked) |
100 mm |
| Product Width (unpacked) |
45 mm |
| Product Depth (unpacked) |
117 mm |
| Supply voltage DC |
9.6-26.4 V |
| Switching at zero-crossing |
Yes |
