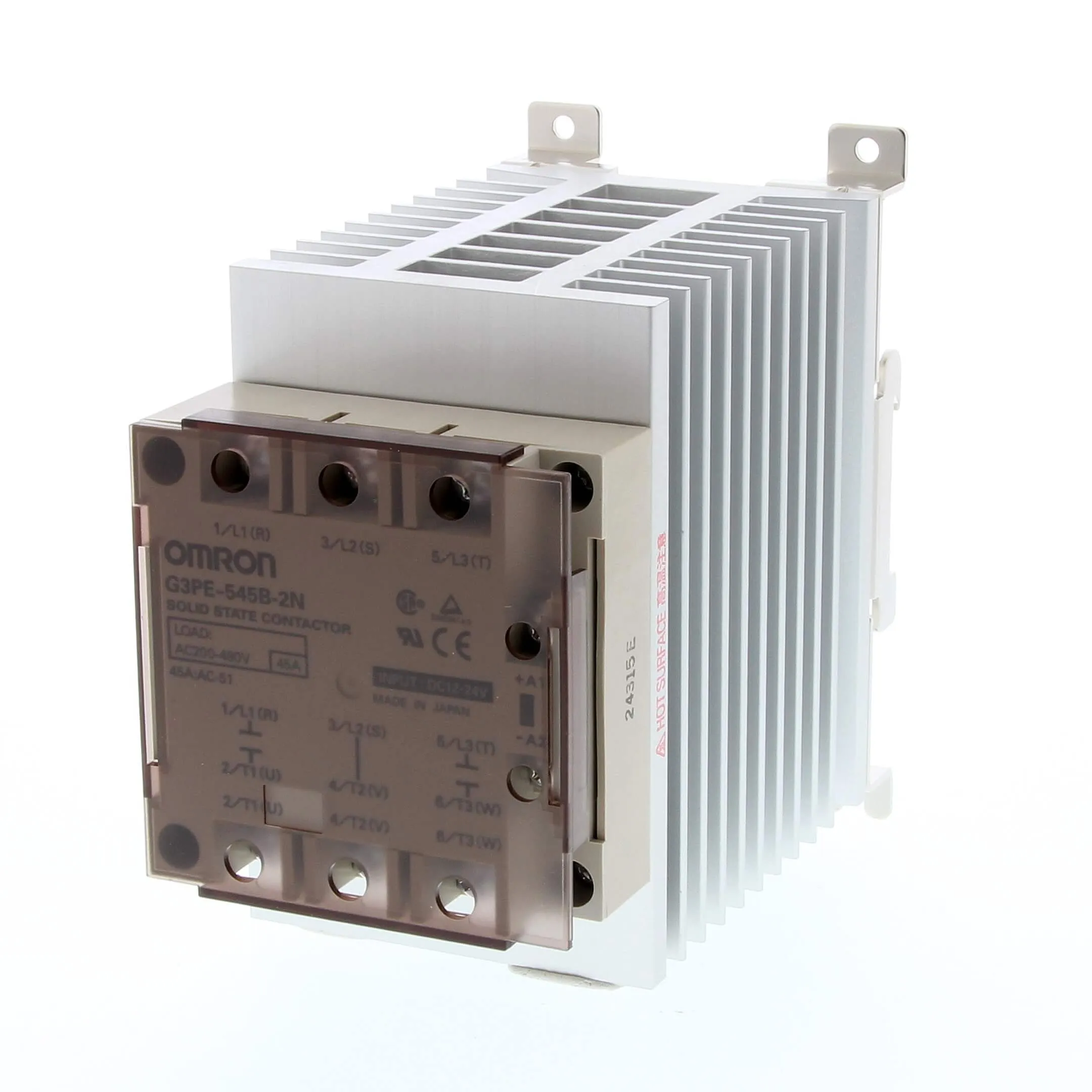

Omron G3PE-545B-2N 12-24VDC
Solid state relay, 2-pole, DIN-track mounting, 35A, 528VAC max
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Solid state relay, 2-pole, DIN-track mounting, 35A, 528VAC max
Specification
| Application | ON/OFF control |
|---|---|
| Number of phases | 3 |
| Number of poles | 2 |
| Mounting method | DIN rail/screw |
| Terminal type | Screw |
| Complete with socket | No |
| LED indicator | Yes |
| Rated operational voltage, AC | 200-480 V |
| Operating voltage range, AC | 180-528 V |
| Rated operation current Ie at AC-1 | 45 A |
| Permissible I²t value | 1260 A²s |
| Applicable heater capacity (AC1: resistive load) | 37.4 kW |
| Product Height (unpacked) | 140 mm |
| Product Width (unpacked) | 80 mm |
| Product Depth (unpacked) | 155 mm |
| Supply voltage DC | 12-24 V |
| Control current max. | 10 mA |
| Must operate voltage max. | 9.6 V |
| Must release voltage min. | 1 V |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Isolation | Phototriac |
