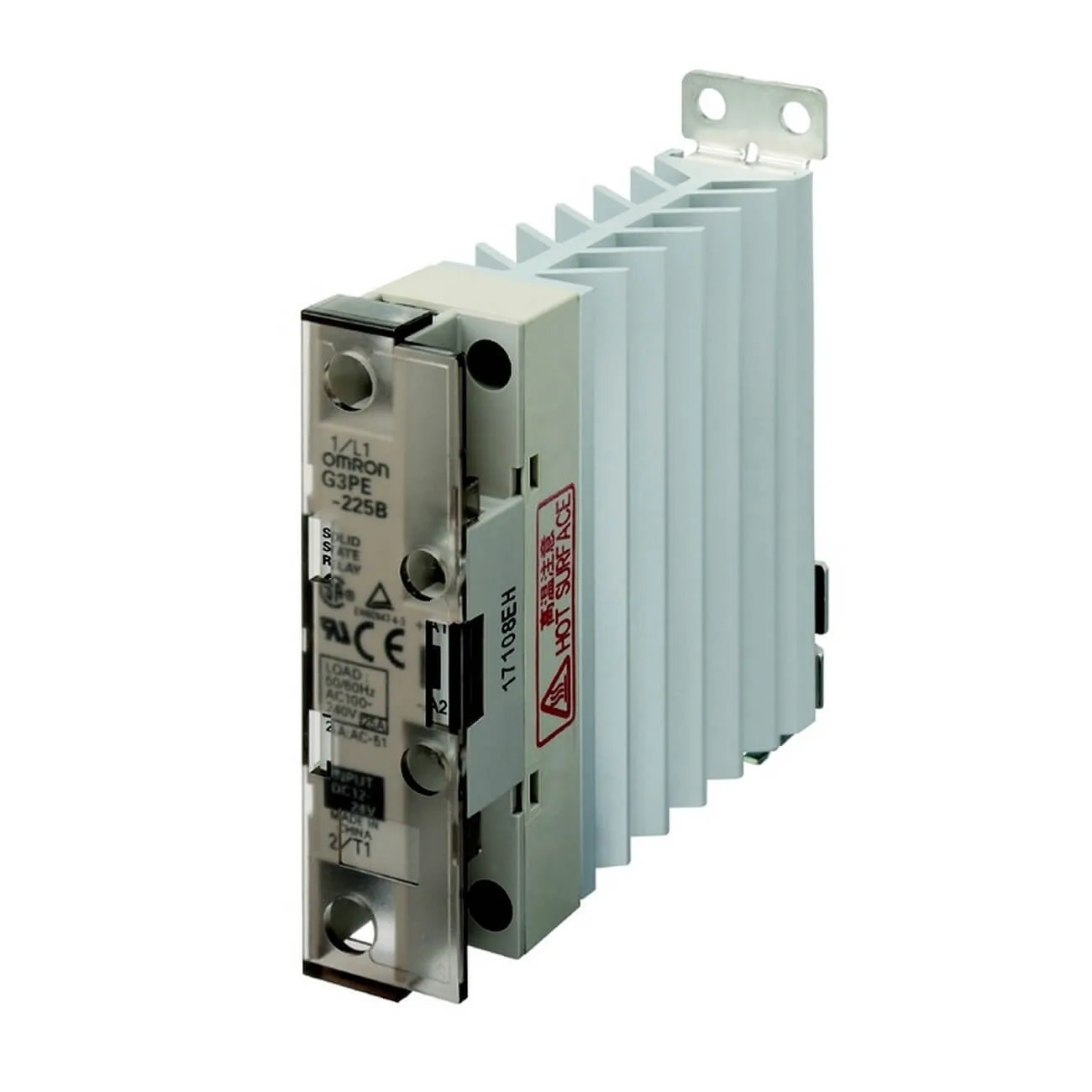

Omron G3PE-225BL 12-24VDC
Solid-state relay, 1 phase, 25A 100 to 240 VAC, with heat sink, DIN rail mount, non zero cross switching function
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Solid-state relay, 1 phase, 25A 100 to 240 VAC, with heat sink, DIN rail mount, non zero cross switching function
Specification
| Application |
ON/OFF control |
|---|---|
| Number of phases |
1 |
| Number of poles |
1 |
| Mounting method |
DIN rail/screw |
| Terminal type |
Screw |
| Complete with socket |
No |
| LED indicator |
Yes |
| Rated operational voltage, AC |
100-240 V |
| Operating voltage range, AC |
75-264 V |
| Rated operation current Ie at AC-1 |
25 A |
| Permissible I²t value |
260 A²s |
| Applicable heater capacity (AC1: resistive load) |
8.6 kW |
| Product Height (unpacked) |
100 mm |
| Product Width (unpacked) |
22.5 mm |
| Product Depth (unpacked) |
100 mm |
| Supply voltage DC |
12-24 V |
| Control current max. |
10 mA |
| Must operate voltage max. |
9.6 V |
| Must release voltage min. |
1 V |
| Maximum operating temperature |
80 °C |
| Minimum operating temperature |
-30 °C |
| Isolation |
Phototriac |
| Switching at zero-crossing |
No |
