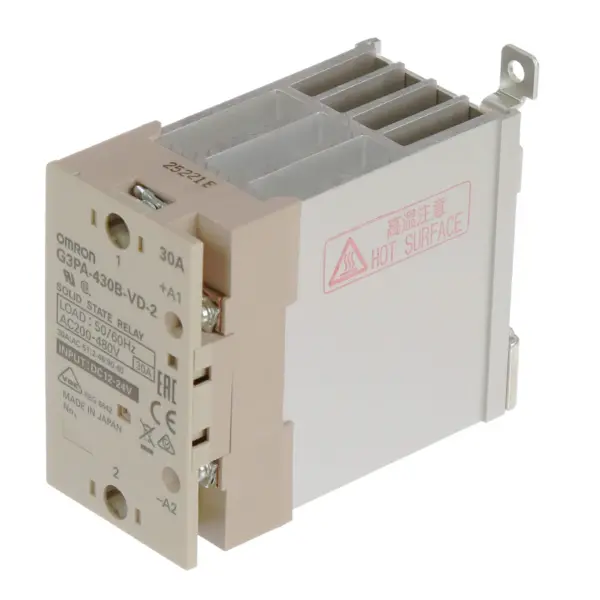

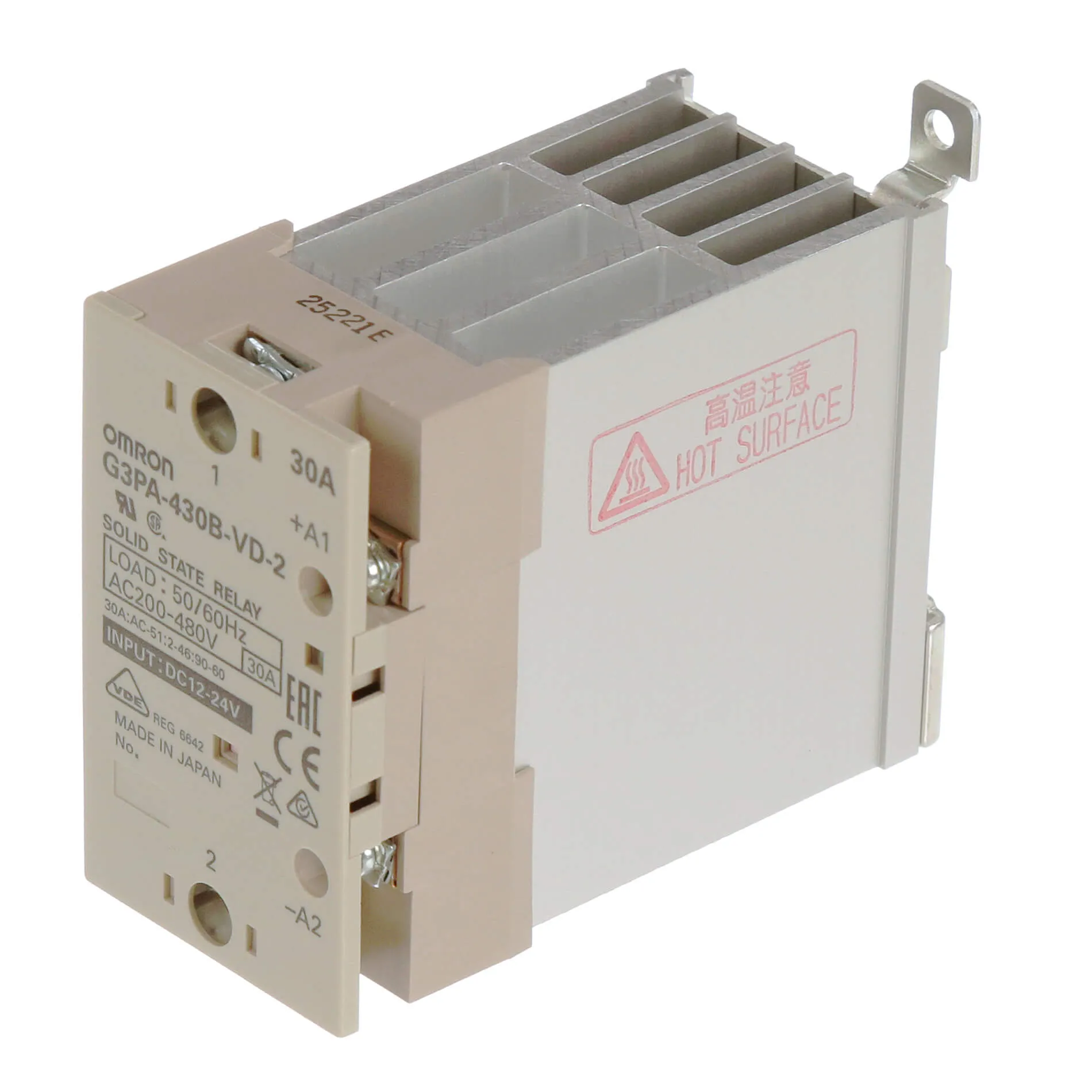

Omron G3PA-430B-VD-2 12-24VDC
Solid state relay, DIN rail/surface mounting, 1-pole, 30 A, 440 VAC max
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Solid state relay, DIN rail/surface mounting, 1-pole, 30 A, 440 VAC max
Specification
| Application |
ON/OFF control |
|---|---|
| Number of phases |
1 |
| Number of poles |
1 |
| Mounting method |
DIN rail |
| Terminal type |
Screw |
| LED indicator |
No |
| Rated operational voltage, AC |
201-480 V |
| Operating voltage range, AC |
180-528 V |
| Rated operation current Ie at AC-1 |
30 A |
| Rated load current Close mounting |
24 A |
| Permissible I²t value |
1800 A²s |
| Product Height (unpacked) |
100 mm |
| Product Width (unpacked) |
47 mm |
| Product Depth (unpacked) |
100 mm |
| Supply voltage DC |
12-24 V |
| Control current max. |
7 mA |
| Must operate voltage max. |
9.2 V |
| Must release voltage min. |
1 V |
| Maximum operating temperature |
80 °C |
| Minimum operating temperature |
-30 °C |
| Isolation |
Phototriac |
| Switching at zero-crossing |
Yes |
