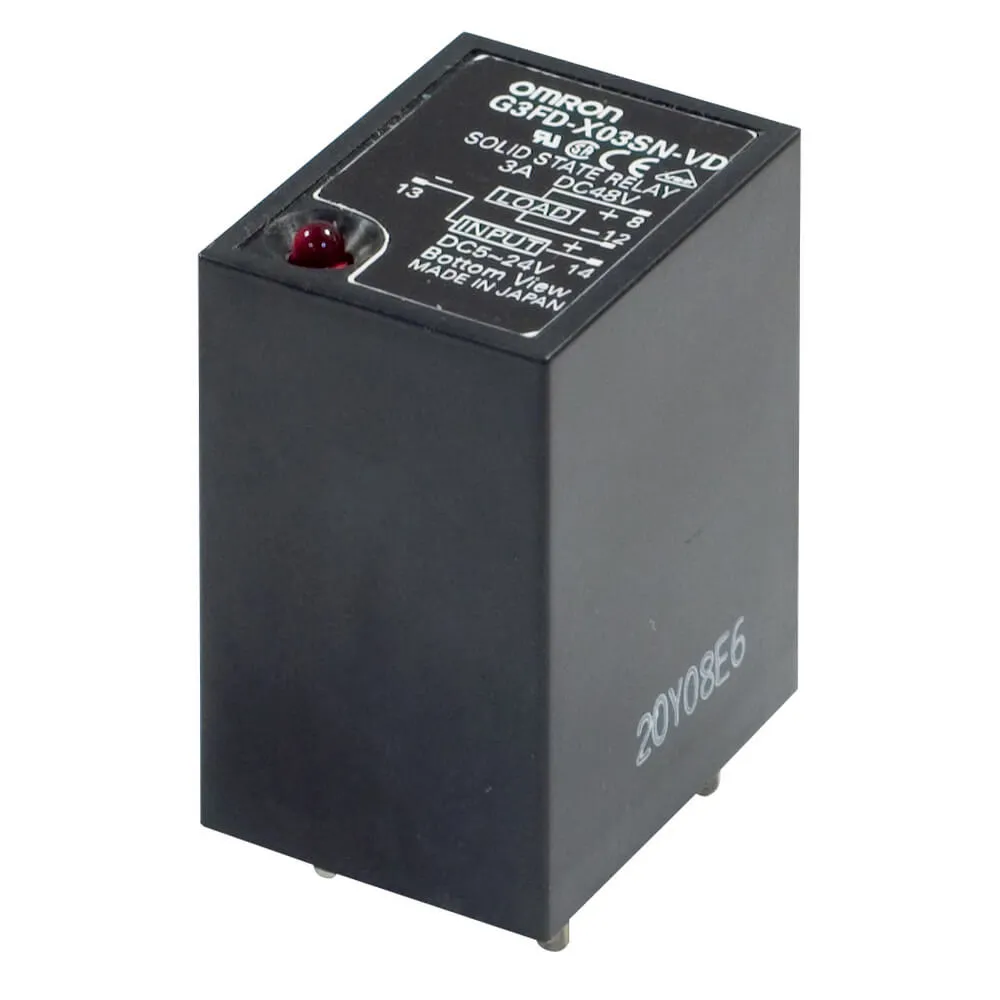

Omron G3FD-X03SN-VD 5-24VDC
Solid-state relay, plug-in, 8-pin, 1-pole, rated load 3 A, 4-48 VDC, LED indicator, rated input voltage 4 to 24 VDC
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Solid-state relay, plug-in, 8-pin, 1-pole, rated load 3 A, 4-48 VDC, LED indicator, rated input voltage 4 to 24 VDC
Specification
| Application |
Interface |
|---|---|
| Number of phases |
1 |
| Mounting method |
With plug-in socket |
| Terminal type |
Plug-in |
| Complete with socket |
No |
| LED indicator |
Yes |
| Rated operational voltage, DC |
4-48 V |
| Operating voltage range, DC |
3-52.8 V |
| Rated operation current Ie at AC-1 |
3 A |
| Supply voltage DC |
5-24 V |
| Must operate voltage max. |
4 V |
| Must release voltage min. |
1 V |
| Maximum operating temperature |
80 °C |
| Minimum operating temperature |
-30 °C |
| Isolation |
Photocoupler |
| Switching at zero-crossing |
No |
