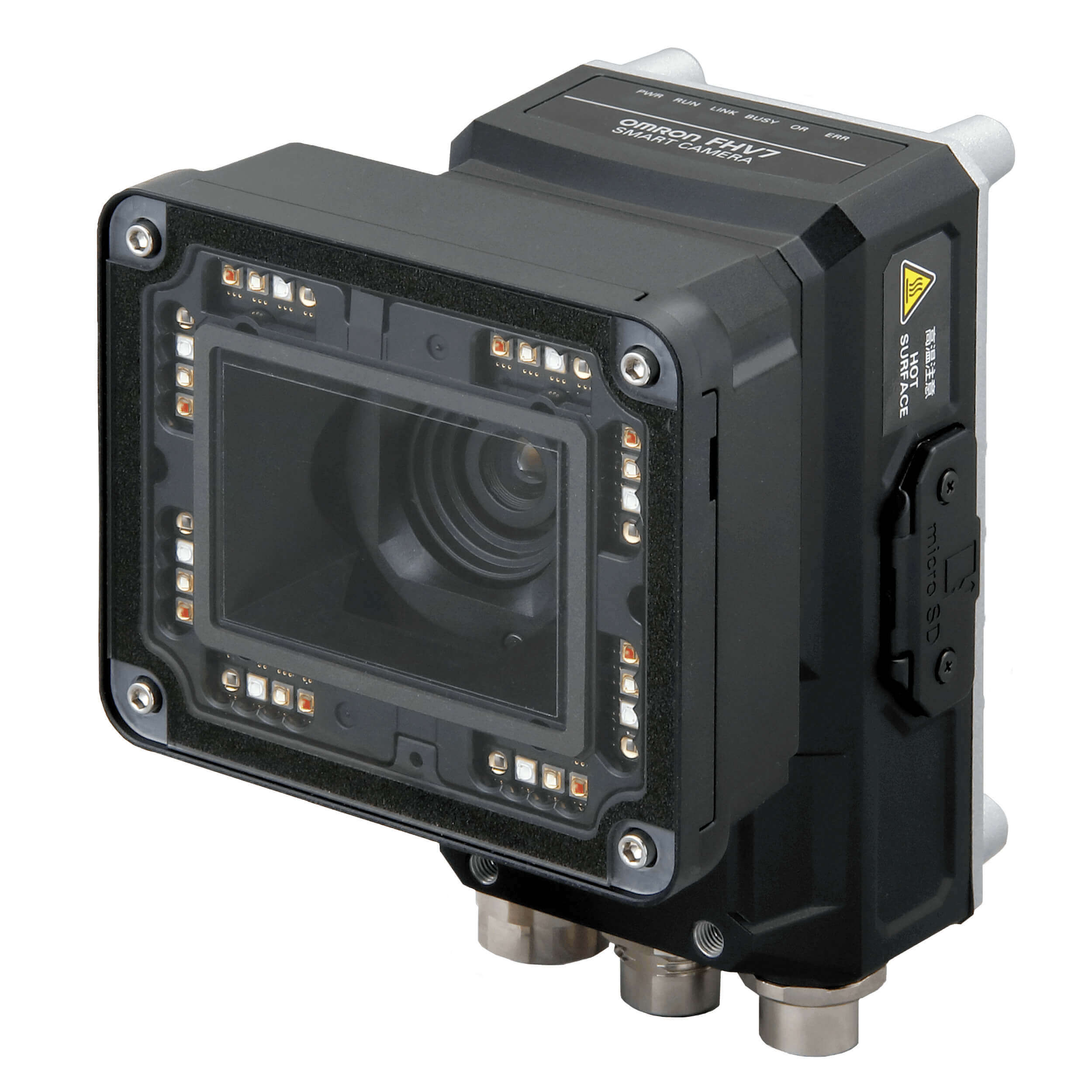

Omron FHV7X-M004-S06-R
FH Vision Smart Camera, high performance, monochrome type, 0.4 Mpix resolution, 6.9 µm pixel size, 1/2.9″ chip size, global shutter, motorized lens module, focal length 6 mm, red illuminator, 24 VDC,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
FH Vision Smart Camera, high performance, monochrome type, 0.4 Mpix resolution, 6.9 µm pixel size, 1/2.9″ chip size, global shutter, motorized lens module, focal length 6 mm, red illuminator, 24 VDC, IP67, pre-assembled
Specification
| Number of pixels | 0.4 MP |
|---|---|
| Camera with lens | Yes |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, PROFINET Slave, Serial RS-232C |
| Communication option(s) | EtherCAT Slave |
| Focal length | 6 mm |
| Focus distance | 59-1000 mm |
| Autofocus | Yes |
| Camera family | FHV |
| Camera type | Monochrome |
| Frame rate | 430 fps |
| Illumination | Red LED |
| Image width | 720 pixels |
| Image height | 540 pixels |
| Pixel size | 6.9 µm |
| Shutter type | Global |
| Image sensor format | 1/2.9″ |
| Image sensor type | CMOS |
| Lens mount | Other |
| Lens type | Motorized |
| Optics class | Not Applicable |
| Degree of protection (IP) | IP67 |
| Application | 2D Robot guidance, Bead inspection, Code reading, Code verification, Counting, Defect inspection, Measurement inspection, OCR / OCV, Presence / Absence |
