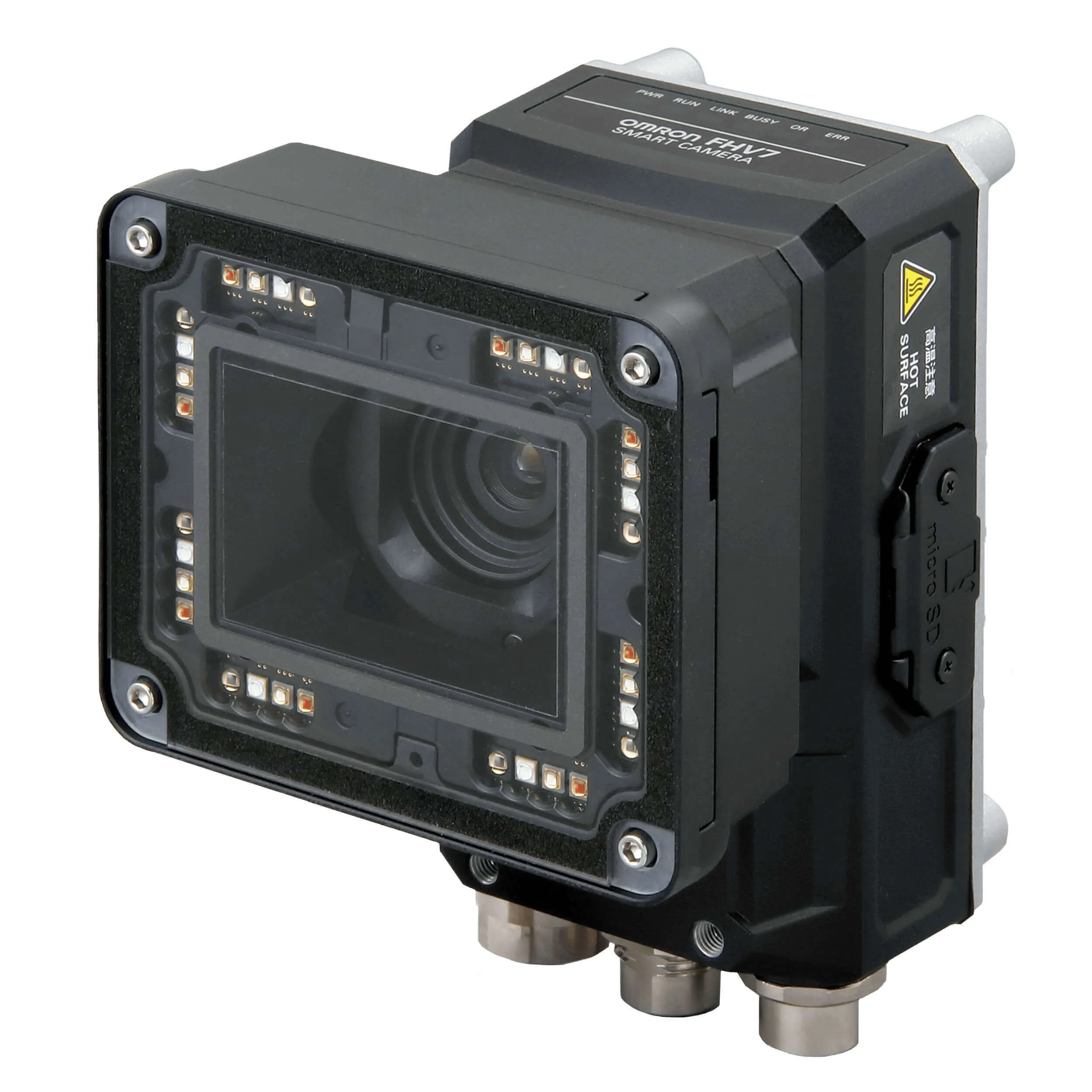

Omron FHV7X-C063R-S12-W
FH Vision Smart Camera, high performance, color type, 6.3 Mpix resolution, 2.4 µm pixel size, 1/1.8″ chip size, rolling shutter, motorized lens module, focal length 12 mm, white illuminator, 24 VDC, I…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
FH Vision Smart Camera, high performance, color type, 6.3 Mpix resolution, 2.4 µm pixel size, 1/1.8″ chip size, rolling shutter, motorized lens module, focal length 12 mm, white illuminator, 24 VDC, IP40, pre-assembled
Specification
| Number of pixels | 6.3 MP |
|---|---|
| Camera with lens | Yes |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, PROFINET Slave, Serial RS-232C |
| Communication option(s) | EtherCAT Slave |
| Focal length | 12 mm |
| Focus distance | 60-1000 mm |
| Autofocus | Yes |
| Camera family | FHV |
| Camera type | Color |
| Frame rate | 59 fps |
| Illumination | White LED |
| Image width | 3072 pixels |
| Image height | 2048 pixels |
| Pixel size | 2.4 µm |
| Shutter type | Rolling |
| Image sensor format | 1/1.8″ |
| Image sensor type | CMOS |
| Lens mount | Other |
| Lens type | Motorized |
| Optics class | Not Applicable |
| Degree of protection (IP) | IP67 |
| Application | 2D Robot guidance, Bead inspection, Code reading, Code verification, Color inspection, Counting, Defect inspection, Measurement inspection, OCR / OCV, Presence / Absence |
