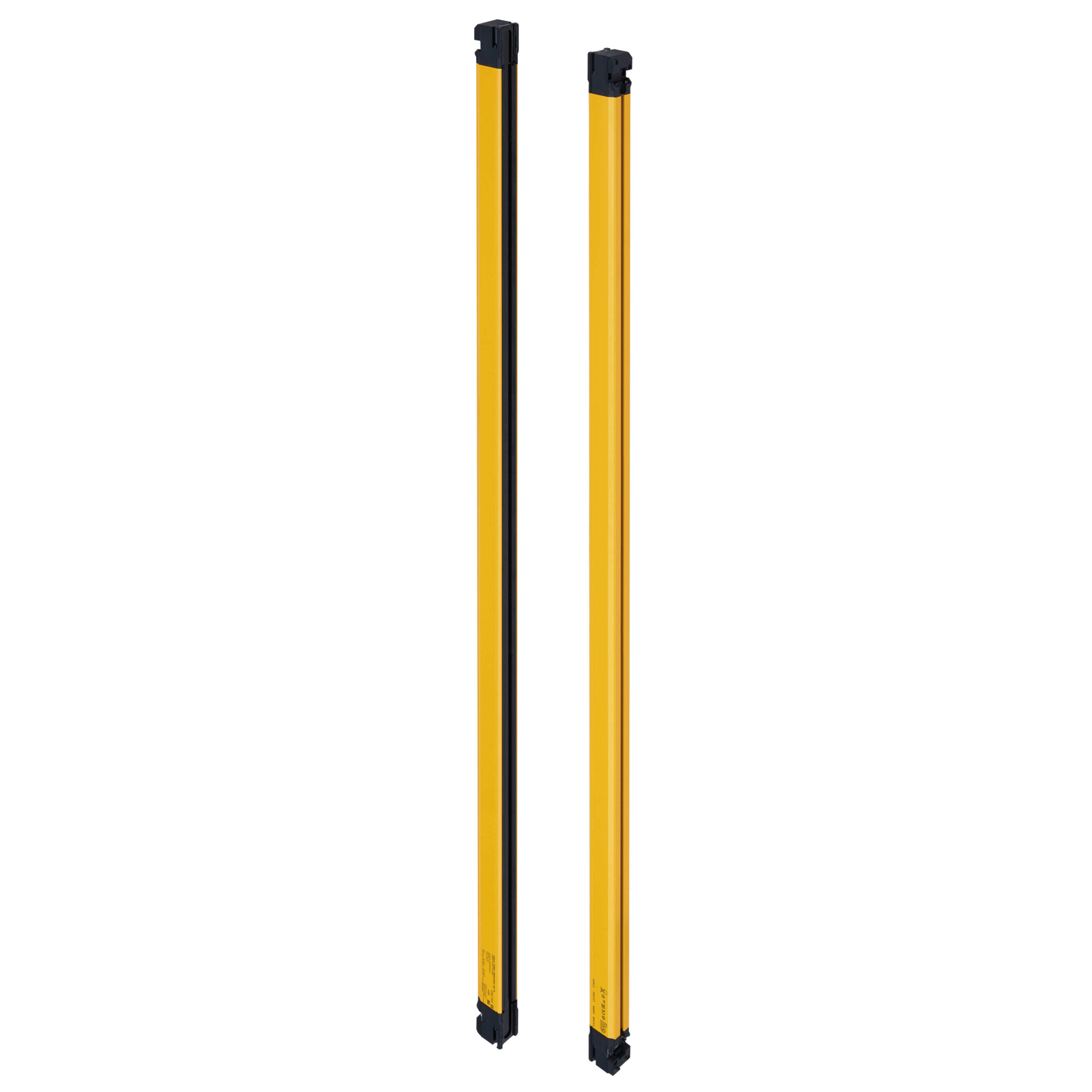

Omron F3SG-4SRB1120-25
Safety Light Curtain, F3SG-SRB Standard, Type 4, 25 mm resolution, range 0.3 to 20.0 m, height 1120 mm, PNP/NPN
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety Light Curtain, F3SG-SRB Standard, Type 4, 25 mm resolution, range 0.3 to 20.0 m, height 1120 mm, PNP/NPN
Specification
| Sensing method |
Safety light curtain |
|---|---|
| Type of protection |
Hand protection |
| Number of beams |
56 |
| Detection capability |
25 mm |
| Safety field height |
1120 mm |
| Type of safety according to IEC 61496-1 |
4 |
| Beam spacing |
20 mm |
| Maximum safety range |
20 m |
| Minimum operating distance |
0.3 m |
| Key features |
Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment, Warning zone |
| Degree of protection (IP) |
IP65/IP67/IP67G |
| Cascadable |
Yes |
| Number of protected semiconductor outputs |
2 |
| Number of semiconductor outputs with signalling function |
1 |
| Type of switching output of the OSSD |
PNP/NPN |
| Response time |
13 ms |
| With muting function |
Yes |
| With beam coding |
Yes |
| Communication option(s) |
Bluetooth, IO-Link, USB |
| Suitable for safety functions |
Yes |
| Scope of delivery |
Transmitter and receiver |
| Wavelength of the sensor |
870 nm |
| Connection method |
Root connector (order separately) |
| Supply voltage DC |
19.2-28.8 V |
| Max. output current at protected output |
300 mA |
| Ambient temperature |
-30-55 °C |
| Overall length of sensor |
1120 mm |
| Height of sensor |
1120 mm |
| Width of sensor |
32 mm |
| Number of fixed side-mount brackets |
2 |
| Number of adjustable side-mount brackets |
2 |
| Number of intermediate brackets |
1 |
