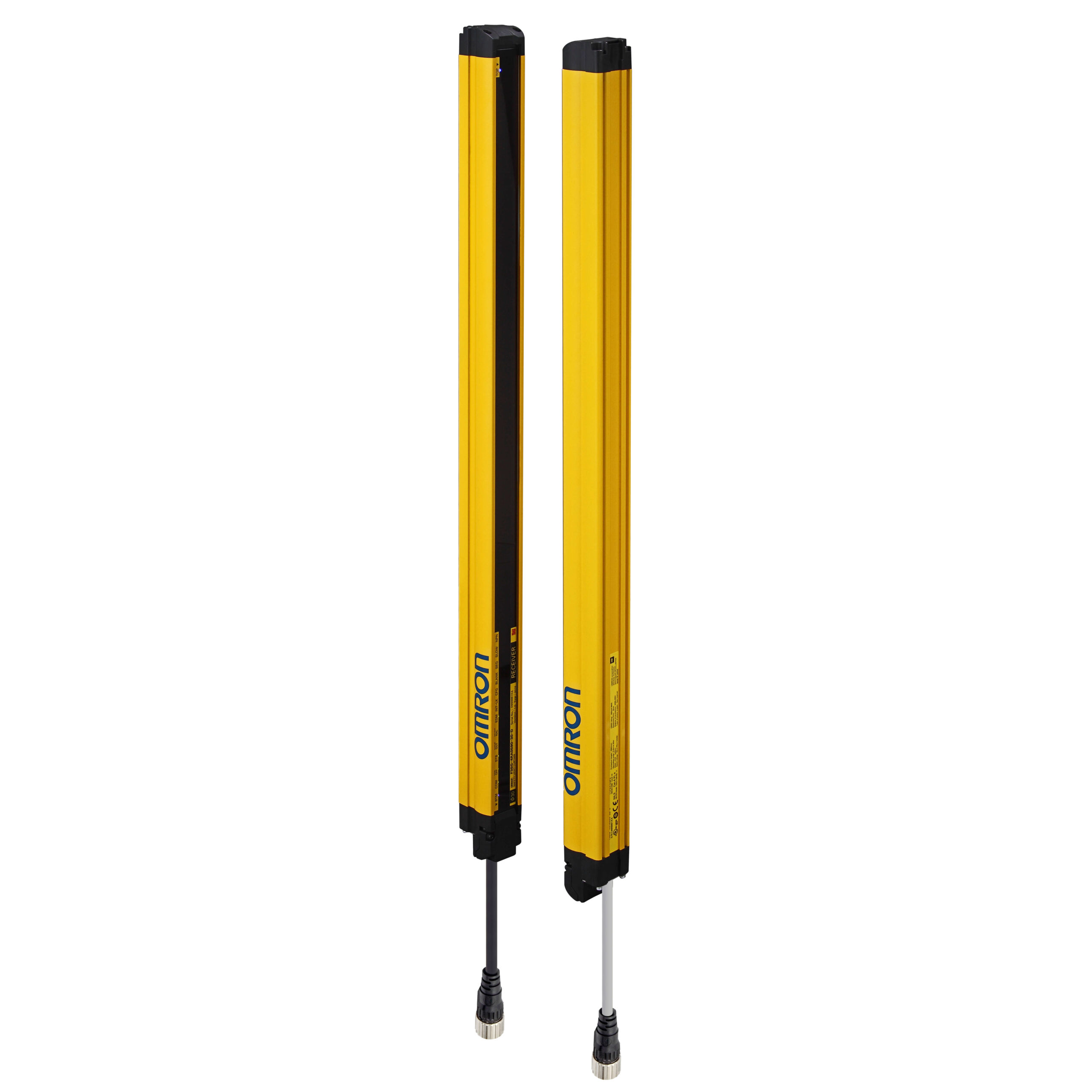

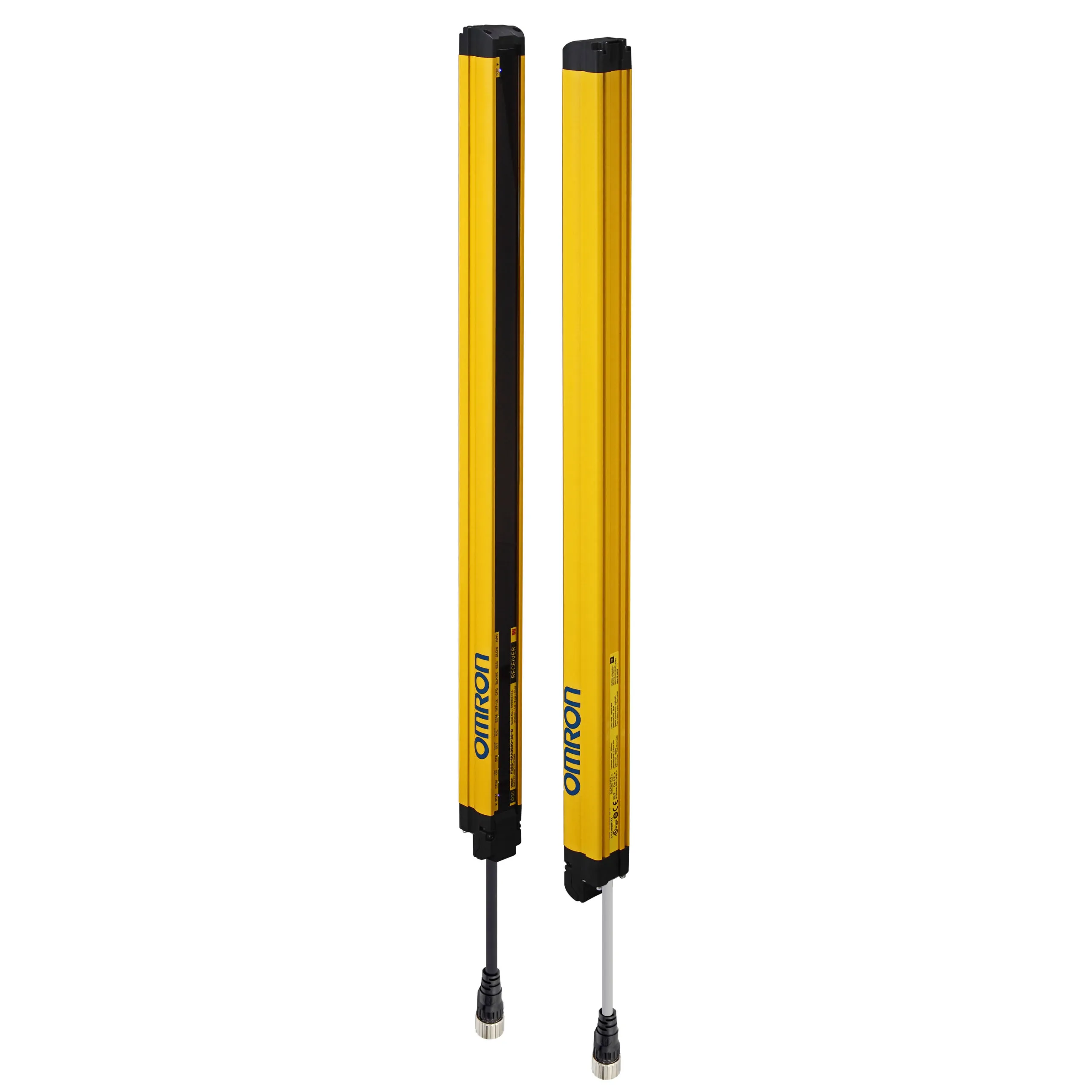

Omron F3SG-4RA0990-30
Safety Sensor, F3SG-R Advanced, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 990 mm, PNP/NPN
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety Sensor, F3SG-R Advanced, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 990 mm, PNP/NPN
Specification
| Type of safety according to IEC 61496-1 | 4 |
|---|---|
| Type of protection | Hand protection |
| Detection capability | 30 mm |
| Safety field height | 990 mm |
| Beam gap | 20 mm |
| Number of beams | 48 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 1 |
| Maximum safety range | 20 m |
| Minimum operating distance | 0.3 m |
| Response time | 13 ms |
| Cascadable | Yes |
| With muting function | Yes |
| With beam coding | Yes |
| Type of switching output of the OSSD | PNP/NPN |
| Communication port(s) | USB |
| Suitable for safety functions | Yes |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 870 nm |
| Connection method | M12 pigtail Smartclick connector |
| Supply voltage DC | 19.2-28.8 V |
| Voltage type | DC |
| Max. output current at protected output | 300 mA |
| Degree of protection (IP) | IP67 |
| Ambient temperature | -10-55 °C |
| Overall length of sensor | 1008 mm |
| Height of sensor | 35 mm |
| Width of sensor | 35 mm |
