Omron F3SG-4PGA1370-4A

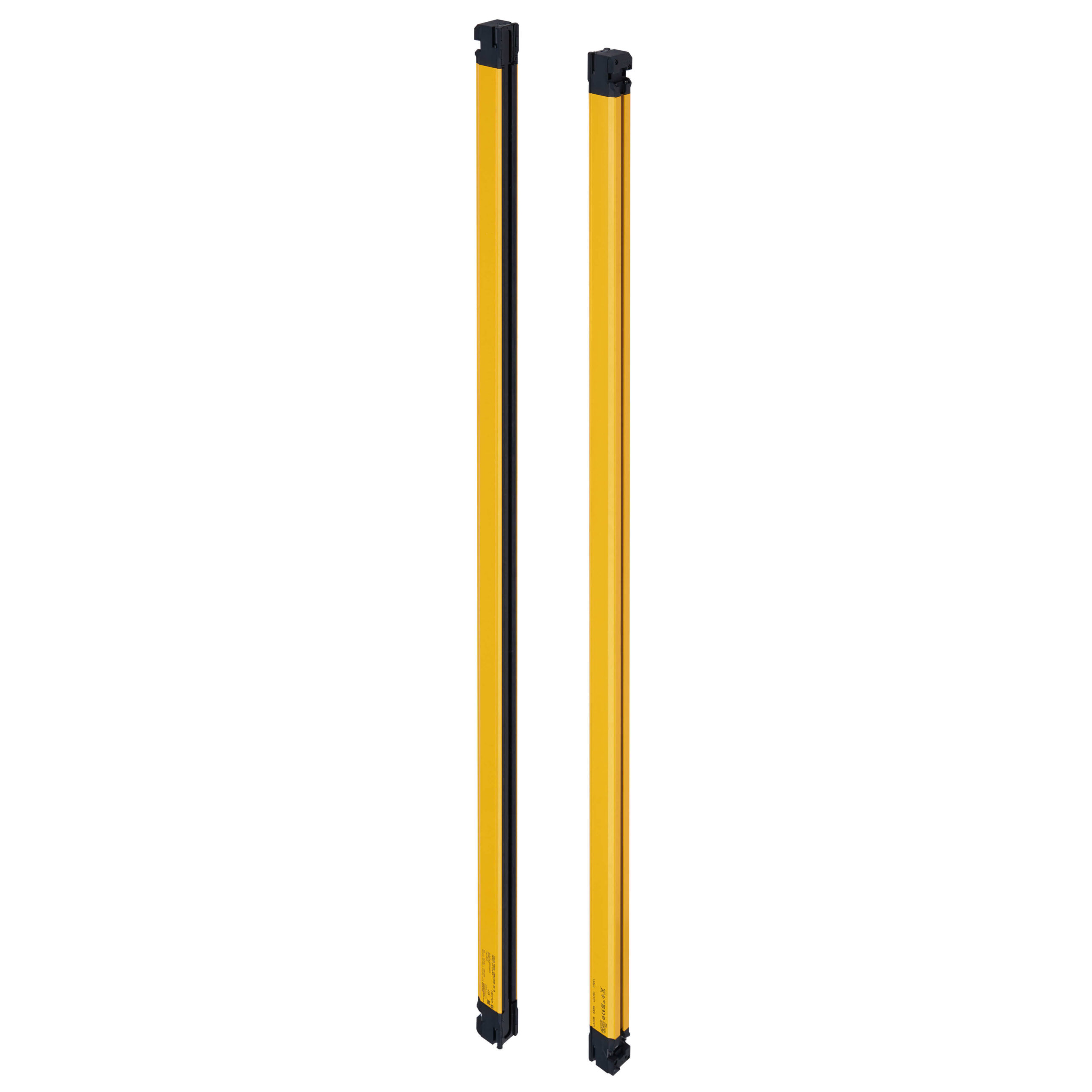

Safety Multi-Light Beam, F3SG-PG Perimeter Guarding, Type 4, 4 beams, range 0.5 to 20 m, product length 1370 mm, Active/active
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety Multi-Light Beam, F3SG-PG Perimeter Guarding, Type 4, 4 beams, range 0.5 to 20 m, product length 1370 mm, Active/active
Specification
| Sensing method | Safety multi-beam |
|---|---|
| Type of protection | Body protection |
| Number of beams | 4 |
| Safety field height | 1370 mm |
| Type of safety according to IEC 61496-1 | 4 |
| Beam spacing | 400 mm |
| Maximum safety range | 20 m |
| Minimum operating distance | 0.5 m |
| Key features | Active/active, Area Beam Indicator, Auxiliary output, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, PNP/NPN selection, Response time adjustment |
| Degree of protection (IP) | IP65/IP67 |
| Cascadable | No |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 1 |
| Type of switching output of the OSSD | PNP/NPN |
| Response time | 8 ms |
| With muting function | Yes |
| With beam coding | Yes |
| Communication option(s) | Bluetooth, IO-Link, USB |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 870 nm |
| Connection method | Root connector (order separately) |
| Max. output current at protected output | 300 mA |
| Ambient temperature | -30-55 °C |
| Number of fixed side-mount brackets | 2 |
| Number of adjustable side-mount brackets | 2 |
| Number of intermediate brackets | 1 |
