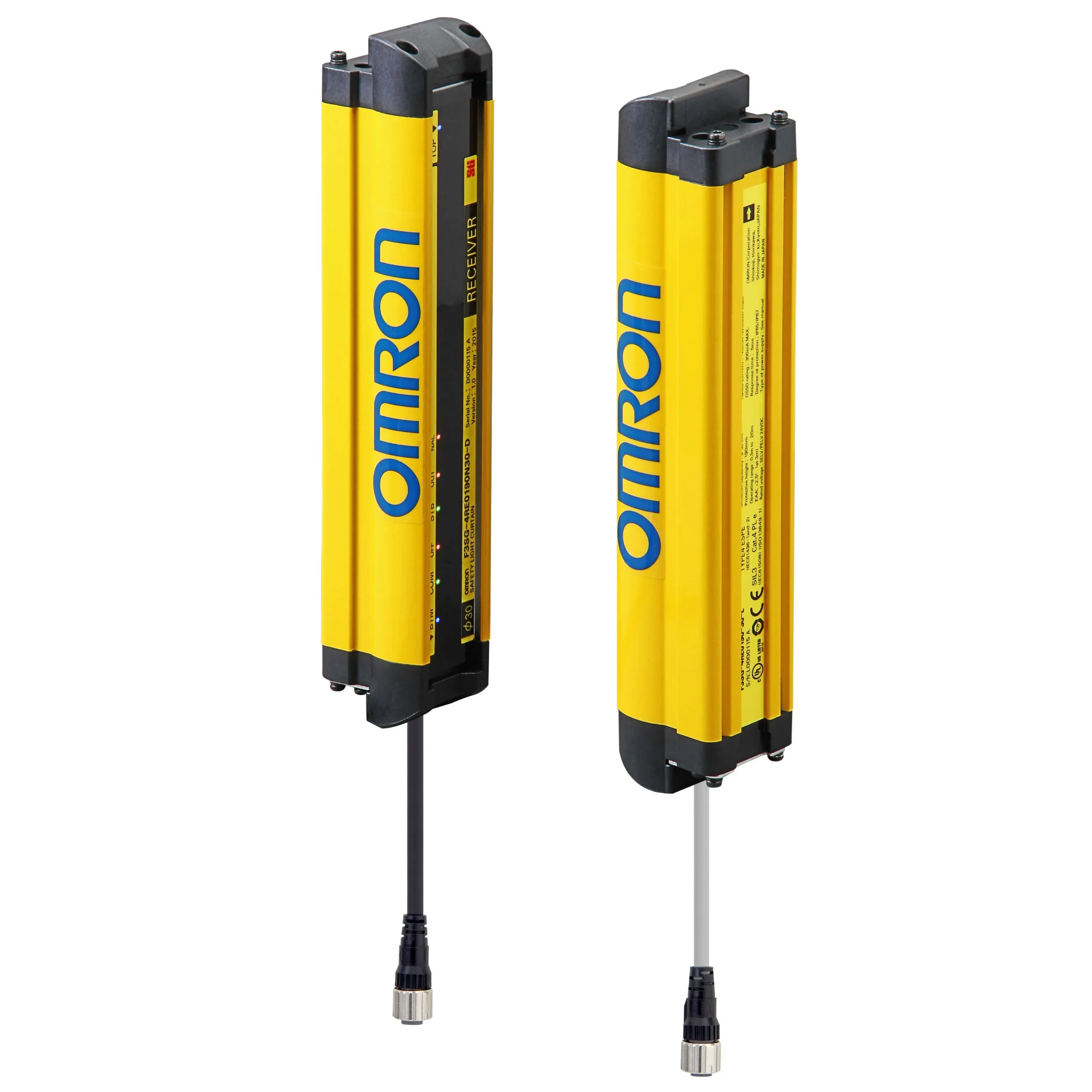

Omron F3SG-2RE0400P14
Safety Sensor, F3SG-R Easy, Type 2, 14 mm resolution, range 0.3 to 10.0 m, height 400 mm, PNP
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety Sensor, F3SG-R Easy, Type 2, 14 mm resolution, range 0.3 to 10.0 m, height 400 mm, PNP
Specification
| Type of safety according to IEC 61496-1 |
2 |
|---|---|
| Type of protection |
Finger protection |
| Detection capability |
14 mm |
| Safety field height |
400 mm |
| Beam gap |
10 mm |
| Number of beams |
39 |
| Number of protected semiconductor outputs |
2 |
| Number of semiconductor outputs with signalling function |
0 |
| Maximum safety range |
10 m |
| Minimum operating distance |
0.3 m |
| Response time |
7 ms |
| Cascadable |
No |
| With muting function |
No |
| With beam coding |
No |
| Type of switching output of the OSSD |
PNP |
| Key features |
Fast response (ON/OFF applications), Simple wiring |
| Suitable for safety functions |
Yes |
| Scope of delivery |
Transmitter and receiver |
| Wavelength of the sensor |
870 nm |
| Connection method |
M12 pigtail Smartclick connector |
| Supply voltage DC |
19.2-28.8 V |
| Voltage type |
DC |
| Max. output current at protected output |
300 mA |
| Degree of protection (IP) |
IP67 |
| Ambient temperature |
-10-55 °C |
| Overall length of sensor |
448 mm |
| Height of sensor |
35 mm |
| Width of sensor |
35 mm |
